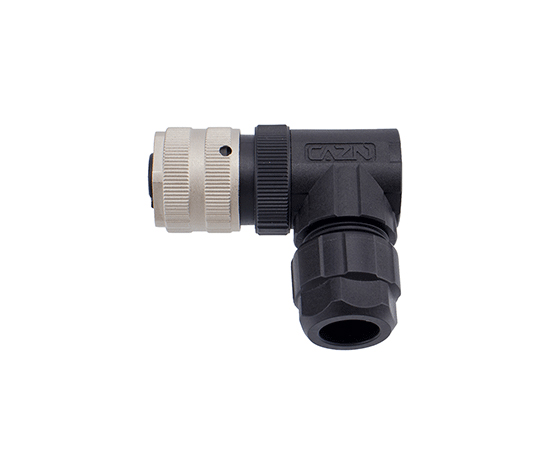

7/8 Angled Female Plastic Assembled Plug ( Screw )
MECHANICAL PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated/PA+GF |
| Insulator material： | PA+GF/TPU |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Execution standard： | IEC 61076-2-101 |
7/8 ELECTRICAL PARAMETERS
Product Name | Outlet size-PG13.5 | Outlet size-PG9 | Pins | 3D Download | 2D Download |
7/8 Angled Female Plastic Assembled Plug-Screw-3Pin | 7/8-S3-PLD P13.5 | 7/8-S3-PLD P9 | 3 | ||
7/8 Angled Female Plastic Assembled Plug-Screw-4Pin | 7/8-S4-PLD P13.5 | 7/8-S4-PLD P9 | 4 | ||
7/8 Angled Female Plastic Assembled Plug-Screw-5Pin | 7/8-S5-PLD P13.5 | 7/8-S5-PLD P9 | 5 | ||
7/8 Angled Female Plastic Assembled Plug-Screw-6Pin | 7/8-S6-PLD P13.5 | 7/8-S6-PLD P9 | 6 |
| Product catalog | CAZN-M Series products brochure |
| Certification/Report | EMC Certificate |
| RoHS Report | 查看 View |
| Waterproof test report | 查看 View |
DATASHEET
7/8 WIRE DEFINITION
