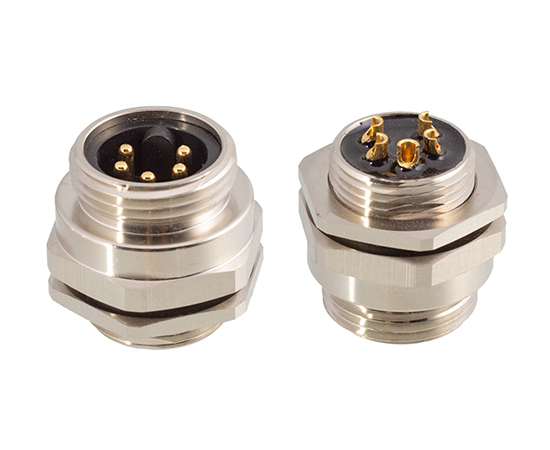

7/8 Male Front Mount Socket ( Solder, Screw PG13.5 )
MECHANICAL PARAMETERS
| Shell material： | Brass nickel plated |
| Insulator material： | PA66/TPU |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Phosphorus copper gold-plated/Brass copper gold-plated |
| Molding material： | PUR/PVC |
| Insulation impedance： | ≥100 MΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Execution standard： | IEC 61076-2-105 |
7/8 ELECTRICAL PARAMETERS
Product Name | Part No. | Pins | 3D Download | 2D Download |
7/8 Male Front Mount Socket-Solder-Screw PG13.5-3Pin | 7/8-P3-GWB P13.5 | 3 | ||
7/8 Male Front Mount Socket-Solder-Screw PG13.5-4Pin | 7/8-P4-GWB P13.5 | 4 | ||
7/8 Male Front Mount Socket-Solder-Screw PG13.5-5Pin | 7/8-P5-GWB P13.5 | 5 | ||
7/8 Male Front Mount Socket-Solder-Screw PG13.5-6Pin | 7/8-P6-GWB P13.5 | 6 |
| Product catalog | CAZN-M Series products brochure |
| Certification/Report | EMC Certificate |
| RoHS Report | 查看 View |
| Waterproof test report | 查看 View |
DATASHEET
7/8 WIRE DEFINITION
