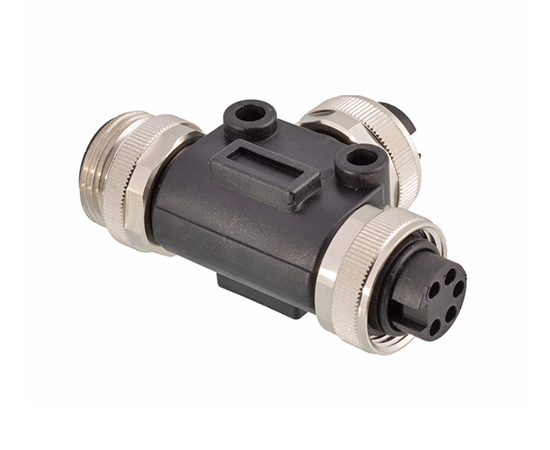

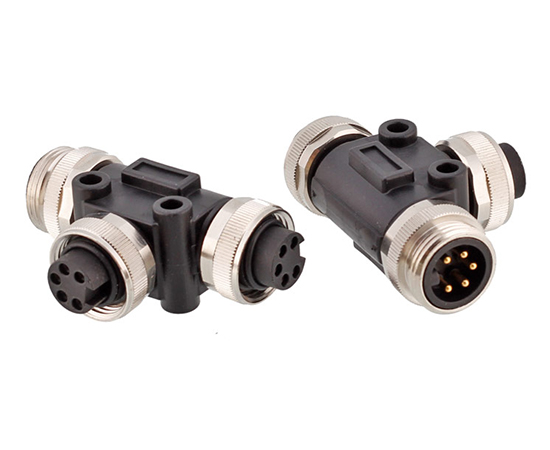

7/8 T-Type Adapter ( 7/8-7/8, PSS )
MECHANICAL PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated/PA+GF |
| Insulator material： | PA+GF/TPU |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Execution standard： | IEC 61076-2-101 |
7/8 ELECTRICAL PARAMETERS
Product Name | Part No. | Pins | 3D Download | 2D Download |
7/8-T-type Adapter-PSS Type-3Pin | 7/8-T-P3/S3x2 | 3 | ||
7/8-T-type Adapter-PSS Type-4Pin | 7/8-T-P4/S4x2 | 4 | ||
7/8-T-type Adapter-PSS Type-5Pin | 7/8-T-P5/S5x2 | 5 | ||
7/8-T-type Adapter-PSS Type-6Pin | 7/8-T-P6/S6x2 | 6 |
| Product catalog | CAZN-M Series products brochure |
| Certification/Report | EMC Certificate |
| RoHS Report | 查看 View |
| Waterproof test report | 查看 View |
