MECHANICAL PARAMETER
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material: | Brass/Phosphor copper gold-plated |
| Coupling: | Thread (T); Bayonet(B) |
| Termination Way: | Solder |
| Durability: | ≥500(Cycles) |
| Insulation resistance: | 2000 mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Cable diameter: | 4.0mm~8.0mm |
| Waterproof grade: | IP67，IP68 |
| Screw size | 5/8"-27UNS |
ELECTRICAL PARAMETERS
Product Name | Rated Voltage | Rated Current | Pins | P/N | 3D Download | 2DDownload |

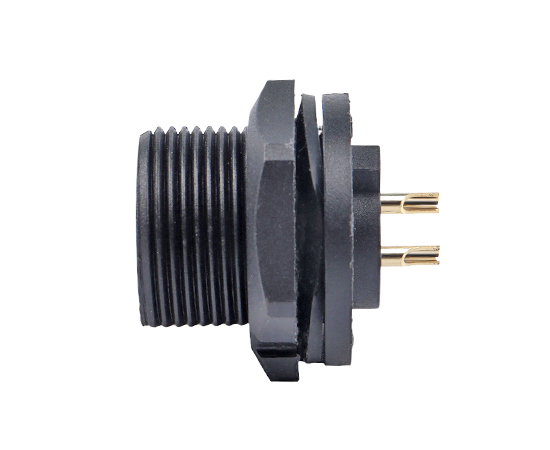

E10 Male Back Mount Solder Receptacle | 300V | 10A | 2B | B10T-02BPFM-W | ||
E10 Male Back Mount Solder Receptacle | 300V | 10A | 3B | B10T-03BPFM-W | ||
E10 Male Back Mount Solder Receptacle | 300V | 10A | 4B | B10T-04BPFM-W | ||
E10 Male Back Mount Solder Receptacle | 125V | 10A | 2C | B10T-02CPFM-W | ||
E10 Male Back Mount Solder Receptacle | 125V | 10A | 3C | B10T-03CPFM-W | ||
E10 Male Back Mount Solder Receptacle | 125V | 10A | 4C | B10T-04CPFM-W | ||
E10 Male Back Mount Solder Receptacle | 60V | 5A | 2 | B10T-02PFM-W | ||
E10 Male Back Mount Solder Receptacle | 60V | 5A | 3 | B10T-03PFM-W | ||
E10 Male Back Mount Solder Receptacle | 60V | 5A | 4 | B10T-04PFM-W | ||
E10 Male Back Mount Solder Receptacle | 60V | 5A | 5 | B10T-05PFM-W | ||
E10 Male Back Mount Solder Receptacle | 60V | 5A | 6 | B10T-06PFM-W | ||
E10 Male Back Mount Solder Receptacle | 60V | 5A | 7 | B10T-07PFM-W | ||
E10 Male Back Mount Solder Receptacle | 60V | 5A | 8 | B10T-08PFM-W | ||
E10 Male Back Mount Solder Receptacle | 30V | 2A | 10 | B10T-10PFM-W | ||
E10 Male Back Mount Solder Receptacle | 30V | 2A | 12 | B10T-12PFM-W |
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |
DIMENSIONS
