Mechanical parameter
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material: | Brass/Phosphor copper gold-plated |
| Coupling: | Thread (T); Bayonet(B) |
| Termination Way: | Solder |
| Durability: | ≥500(Cycles) |
| Insulation resistance: | 2000 mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Cable diameter: | 4.0mm~8.0mm |
| Waterproof grade: | IP67，IP68 |
| Screw size | 5/8"-27UNS |
Electrical parameters
Product Name | Rated Voltage | Rated Current | Pins | P/N | 3D | 2D Download |

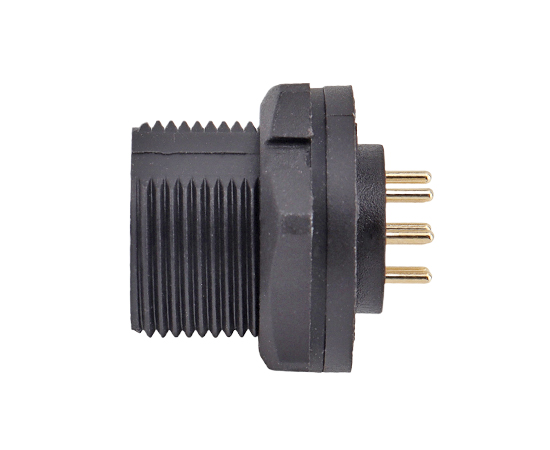

E10 Female Back Mount PCB Receptacle(Threaded) | 300V | 10A | 2B | E10T-S2B-PPF | ||
E10 Female Back Mount PCB Receptacle(Threaded) | 300V | 10A | 3B | E10T-S3B-PPF | ||
E10 Female Back Mount PCB Receptacle(Threaded) | 300V | 10A | 4B | E10T-S4B-PPF | ||
E10 Female Back Mount PCB Receptacle(Threaded) | 125V | 10A | 2C | E10T-S2C-PPF | ||
E10 Female Back Mount PCB Receptacle(Threaded) | 125V | 10A | 3C | E10T-S3C-PPF | ||
E10 Female Back Mount PCB Receptacle(Threaded) | 125V | 10A | 4C | E10T-S4C-PPF | ||
E10 Female Back Mount PCB Receptacle(Threaded) | 60V | 5A | 2 | E10T-S2-PPF | ||
E10 Female Back Mount PCB Receptacle(Threaded) | 60V | 5A | 3 | E10T-S3-PPF | ||
E10 Female Back Mount PCB Receptacle(Threaded) | 60V | 5A | 4 | E10T-S4-PPF | ||
E10 Female Back Mount PCB Receptacle(Threaded) | 60V | 5A | 5 | E10T-S5-PPF | ||
E10 Female Back Mount PCB Receptacle(Threaded) | 60V | 5A | 6 | E10T-S6-PPF | ||
E10 Female Back Mount PCB Receptacle(Threaded) | 60V | 5A | 7 | E10T-S7-PPF | ||
E10 Female Back Mount PCB Receptacle(Threaded) | 60V | 5A | 8 | E10T-S8-PPF |
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

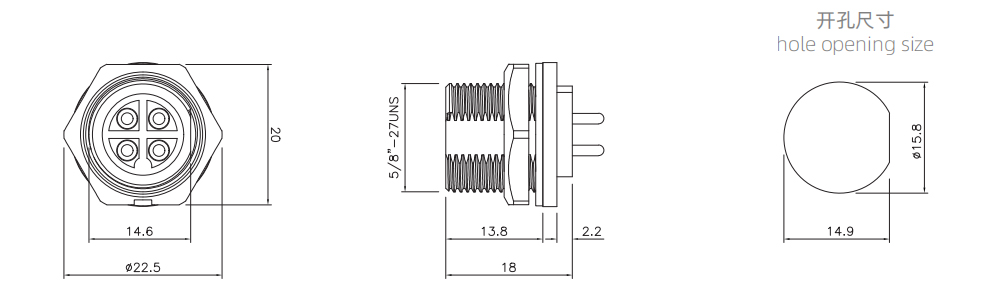

Dimensions

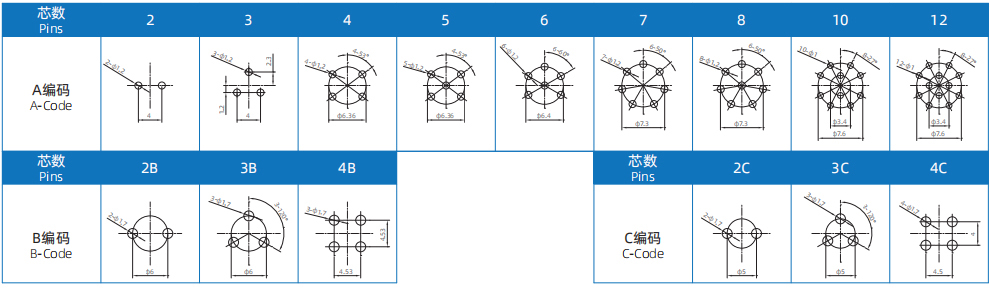

Pins arrangement
