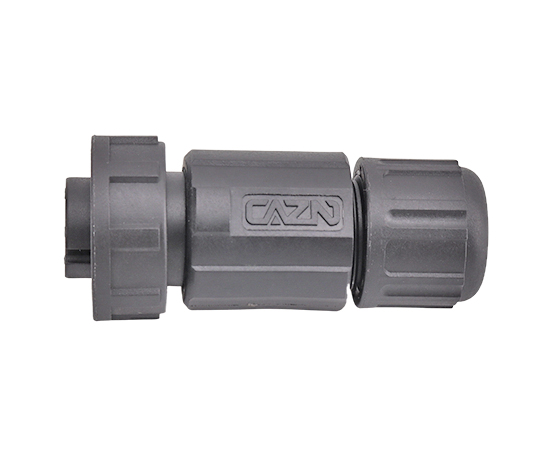

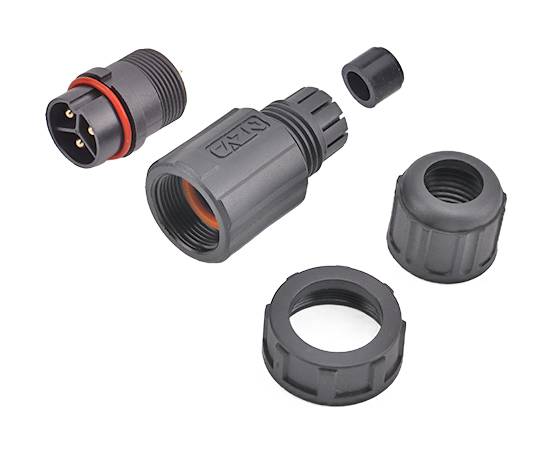

E13 Straight Male Field Installable Plug(Threaded)
MECHANICAL PARAMETER
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material: | Copper gold-plated |
| Coupling: | Thread (T); Bayonet(B) |
| Termination Way: | Solder |
| Solder： | ≥500 Cycles |
| Insulation resistance: | ≥2000mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Wiring range: | 6.0mm~10.0mm |
| Waterproof grade: | IP67，IP68 |
| Specifications: | 13/16"-28UNS |
ELECTRICAL PARAMETERS
| Product Name | Pins | P/N(OD~ф8) | P/N(OD~ф10) | 3D Download | 2D Download |
| E13 Straight Male Assembled Plug(Threaded) | 2 | C13T-02PAM-W8 | C13T-02PAM-W10 | ф8/ф10 | |
| E13 Straight Male Assembled Plug(Threaded) | 3 | C13T-03PAM-W8 | C13T-03PAM-W10 | ф8/ф10 | |
| E13 Straight Male Assembled Plug(Threaded) | 4 | C13T-04PAM-W8 | C13T-04PAM-W10 | ф8/ф10 | |
| E13 Straight Male Assembled Plug(Threaded) | 5 | C13T-05PAM-W8 | C13T-05PAM-W10 | ф8/ф10 | |
| E13 Straight Male Assembled Plug(Threaded) | 6 | C13T-06PAM-W8 | C13T-06PAM-W10 | ф8/ф10 | |
| E13 Straight Male Assembled Plug(Threaded) | 7 | C13T-07PAM-W8 | C13T-07PAM-W10 | ф8/ф10 | |
| E13 Straight Male Assembled Plug(Threaded) | 8 | C13T-08PAM-W8 | C13T-08PAM-W10 | ф8/ф10 | |
| E13 Straight Male Assembled Plug(Threaded) | 9 | C13T-09PAM-W8 | C13T-09PAM-W10 | ф8/ф10 | |
| E13 Straight Male Assembled Plug(Threaded) | 10 | C13T-10PAM-W8 | C13T-10PAM-W10 | ф8/ф10 | |
| E13 Straight Male Assembled Plug(Threaded) | 12 | C13T-12PAM-W8 | C13T-12PAM-W10 | ф8/ф10 | |
| E13 Straight Male Assembled Plug(Threaded) | 14 | C13T-14PAM-W8 | C13T-14PAM-W10 | ф8/ф10 | |
| E13 Straight Male Assembled Plug(Threaded) | 2B | C13T-02BPAM-W8-01 | C13T-02BPAM-W10-01 | ф8/ф10 | |
| E13 Straight Male Assembled Plug(Threaded) | 3B | C13T-03BPAM-W8-01 | C13T-03BPAM-W10-01 | ф8/ф10 | |
| E13 Straight Male Assembled Plug(Threaded) | 4B | C13T-04BPAM-W8-01 | C13T-04BPAM-W10-01 | ф8/ф10 | |
| E13 Straight Male Assembled Plug(Threaded) | 8C | C13T-08CPAM-W8 | C13T-08CPAM-W10 |
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

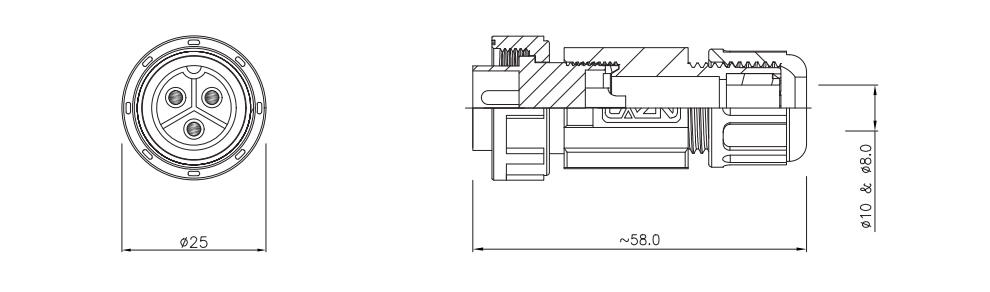

DIMENSION
