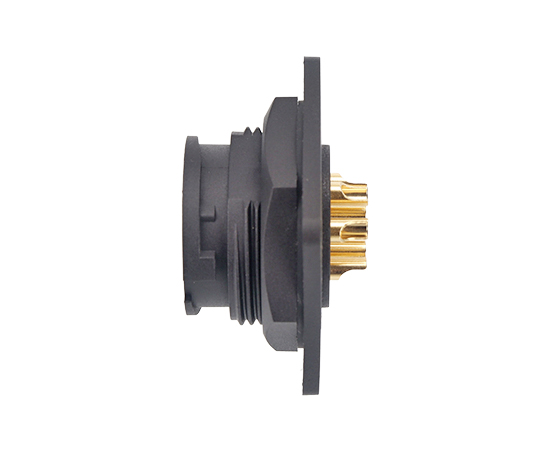

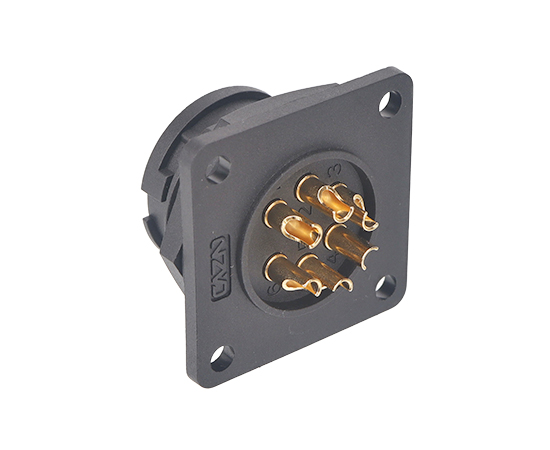

E16 Male Square Receptacle(Bayonet)
MECHANICAL PARAMETER
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material: | Copper gold-plated |
| Coupling: | Bayonet(B) |
| Termination Way: | Solder |
| Solder： | ≥500 Cycles |
| Insulation resistance: | ≥2000mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Wiring range: | 6.0mm~13.0mm |
| Waterproof grade: | IP67，IP68 |
| Specifications: | 1"-20UNEF |
| Rated current: | 250~600V AC/DC |
ELECTRICAL PARAMETERS
| ProductName | Pins | P/N | 3DDownload | 2DDownload |
| E16 Male Square Receptacle(Bayonet) | 2 | E16B-P2-PWH | ||
| E16 Male Square Receptacle(Bayonet) | 3 | E16B-P3-PWH | ||
| E16 Male Square Receptacle(Bayonet) | 4 | E16B-P4-PWH | ||
| E16 Male Square Receptacle(Bayonet) | 5 | E16B-P5-PWH | ||
| E16 Male Square Receptacle(Bayonet) | 6 | E16B-P6-PWH | ||
| E16 Male Square Receptacle(Bayonet) | 7 | E16B-P7-PWH | ||
| E16 Male Square Receptacle(Bayonet) | 18 | E16B-P18-PWH | ||
| E16 Male Square Receptacle(Bayonet) | 20 | E16B-P20-PWH | ||
| E16 Male Square Receptacle(Bayonet) | 21 | E16B-P21-PWH | ||
| E16 Male Square Receptacle(Bayonet) | 22 | E16B-P22-PWH |
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

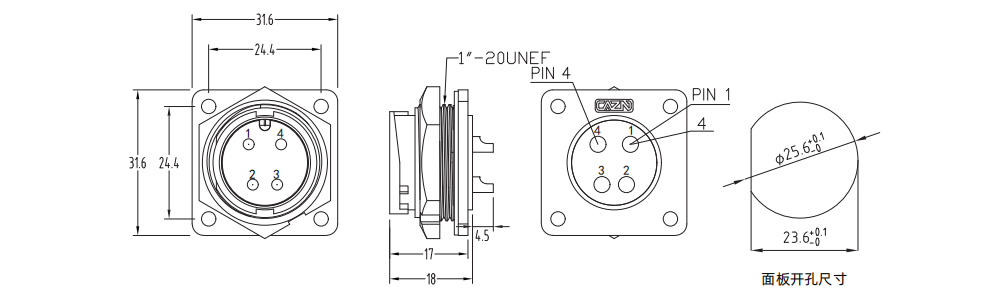

DIMENSIONS
