E16 Dust Cover Round Hole(Bayonet)
MECHANICAL PARAMETER
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Coupling: | Bayonet(B) |
| Solder： | ≥500 Cycles |
| Insulation resistance: | ≥2000mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Waterproof grade: | IP67，IP68 |
| Specifications: | 1"-20UNEF |
| Product Name | Type | P/N | 3D Download | 2D Download |
| E16 Dust Cover Round Hole(Bayonet) | Round Hole | E16B-VP-ST |
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

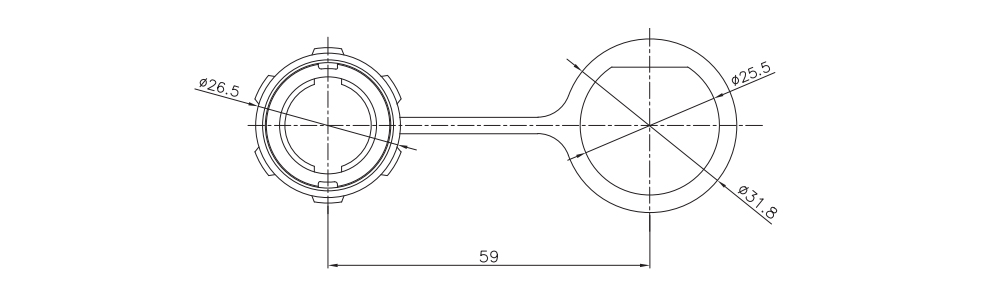

DIMENSIONS
