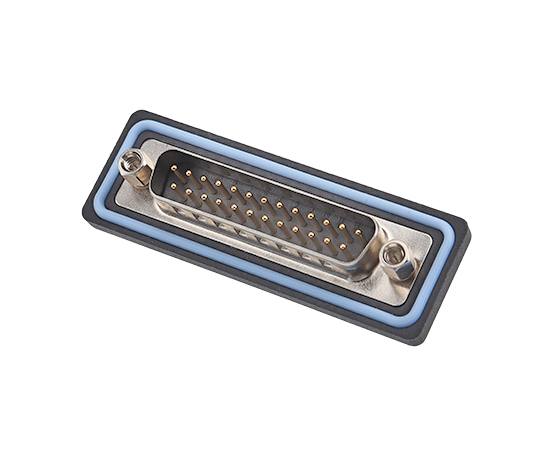

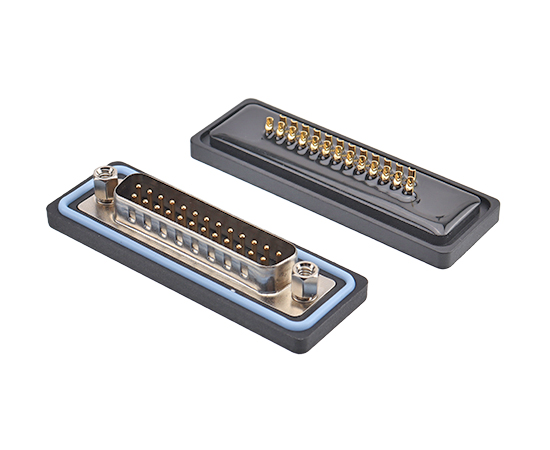

EDB3-Straight Male Socket(Solder)
PRODUCT PARAMETERS
| Rated current： | 10A/20A/30A/40A |
| Rated voltage： | 1000 V |
| Withstand voltage： | 500 V |
| Insulation impedance： | 5000 MΩ |
| Contact impedance： | 10 mΩ |
| Pulling Force： | Products comply with IEC60807-3 |
| Wiring range： | 8mm~14mm |
| Durability： | ≥500次 |
| Applicable temperature： | -55℃ ~ +105℃ |
| Shell material： | Thermoplastic PA66 ,Flame retardant grade：V-0 |
| Waterproof grade： | IP65/IP67 |
| Products comply： | CECC 7501-802.IEC 60807-3 |

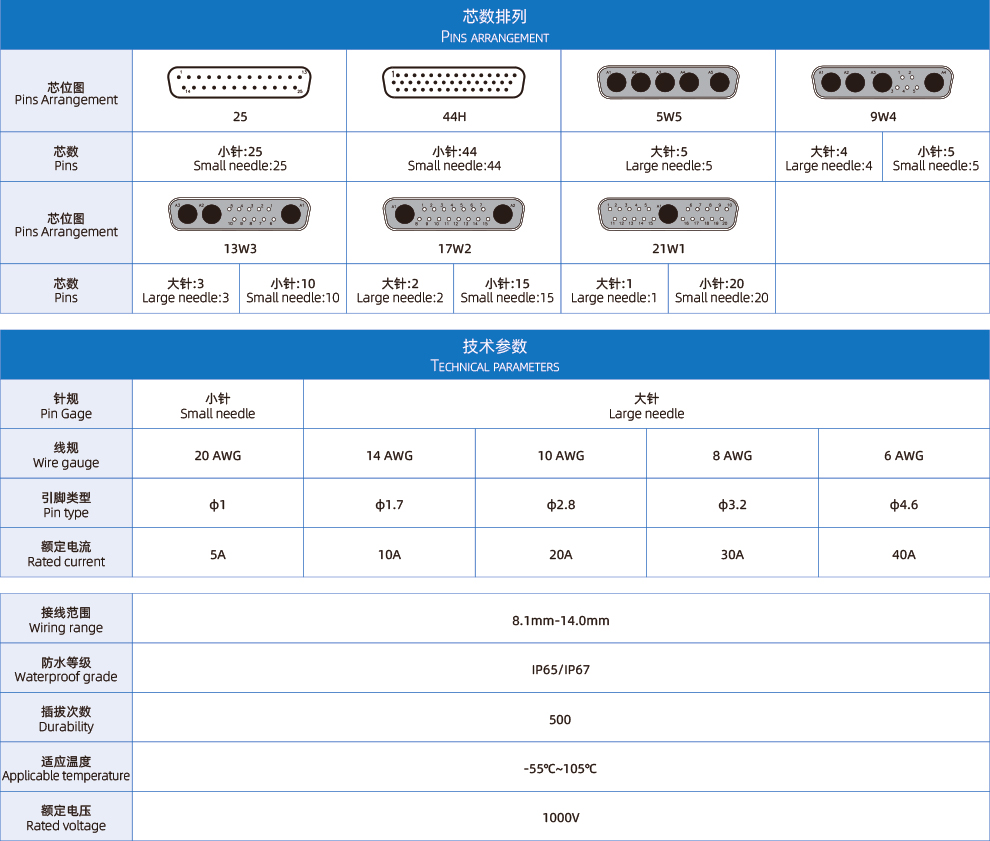

ELECTRICAL PARAMETERS
| Product Name | Pins | Max Pin Wire gauge | Rated current | Model | 3D Download | 2D Download |
| EDB3-Straight Male Socket(Solder) | 25 | 20 AWG | 5A | EDB3-M25-PWA | ↓ | |
| EDB3-Straight Male Socket(Solder) | 44H | 20 AWG | 5A | EDB3-M44H-PWA | ||
| EDB3-Straight Male Socket(Solder) | 5W5 | 20 AWG | 5A | EDB3-M5W5-PWA | ||
| EDB3-Straight Male Socket(Solder) | 9W4C | 20 AWG | 5A | EDB3-M9W4C-PWA | ||
| EDB3-Straight Male Socket(Solder) | 13W3 | 20 AWG | 5A | EDB3-M13W3-PWA | ↓ | |
| EDB3-Straight Male Socket(Solder) | 17W2 | 20 AWG | 5A | EDB3-M17W2-PWA | ||
| EDB3-Straight Male Socket(Solder) | 21W1 | 20 AWG | 5A | EDB3-M21W1-PWA | ||
| EDB3-Straight Male Socket(Solder) | 5W5 | 14 AWG | 10A | EDB3-M5W5-PWA14 | ||
| EDB3-Straight Male Socket(Solder) | 9W4C | 14 AWG | 5A/10A | EDB3-M9W4C-PWA14 | ||
| EDB3-Straight Male Socket(Solder) | 13W3 | 14 AWG | 5A/10A | EDB3-M13W3-PWA14 | ↓ | |
| EDB3-Straight Male Socket(Solder) | 17W2 | 14 AWG | 5A/10A | EDB3-M17W2-PWA14 | ||
| EDB3-Straight Male Socket(Solder) | 21W1 | 14 AWG | 5A/10A | EDB3-M21W1-PWA14 | ||
| EDB3-Straight Male Socket(Solder) | 5W5 | 10 AWG | 20A | EDB3-M5W5-PWA20 | ||
| EDB3-Straight Male Socket(Solder) | 9W4C | 10 AWG | 5A/20A | EDB3-M9W4C-PWA20 | ||
| EDB3-Straight Male Socket(Solder) | 13W3 | 10 AWG | 5A/20A | EDB3-M13W3-PWA20 | ↓ | |
| EDB3-Straight Male Socket(Solder) | 17W2 | 10 AWG | 5A/20A | EDB3-M17W2-PWA20 | ||
| EDB3-Straight Male Socket(Solder) | 21W1 | 10 AWG | 5A/20A | EDB3-M21W1-PWA20 | ||
| EDB3-Straight Male Socket(Solder) | 5W5 | 08 AWG | 30A | EDB3-M5W5-PWA30 | ||
| EDB3-Straight Male Socket(Solder) | 9W4C | 08 AWG | 5A/30A | EDB3-M9W4C-PWA30 | ||
| EDB3-Straight Male Socket(Solder) | 13W3 | 08 AWG | 5A/30A | EDB3-M13W3-PWA30 | ↓ | |
| EDB3-Straight Male Socket(Solder) | 17W2 | 08 AWG | 5A/30A | EDB3-M17W2-PWA30 | ||
| EDB3-Straight Male Socket(Solder) | 21W1 | 08 AWG | 5A/30A | EDB3-M21W1-PWA30 | ||
| EDB3-Straight Male Socket(Solder) | 5W5 | 06 AWG | 40A | EDB3-M5W5-PWA40 | ||
| EDB3-Straight Male Socket(Solder) | 9W4C | 06 AWG | 5A/40A | EDB3-M9W4C-PWA40 | ||
| EDB3-Straight Male Socket(Solder) | 13W3 | 06 AWG | 5A/40A | EDB3-M13W3-PWA40 | ↓ | |
| EDB3-Straight Male Socket(Solder) | 17W2 | 06 AWG | 5A/40A | EDB3-M17W2-PWA40 | ||
| EDB3-Straight Male Socket(Solder) | 21W1 | 06 AWG | 5A/40A | EDB3-M21W1-PWA40 |

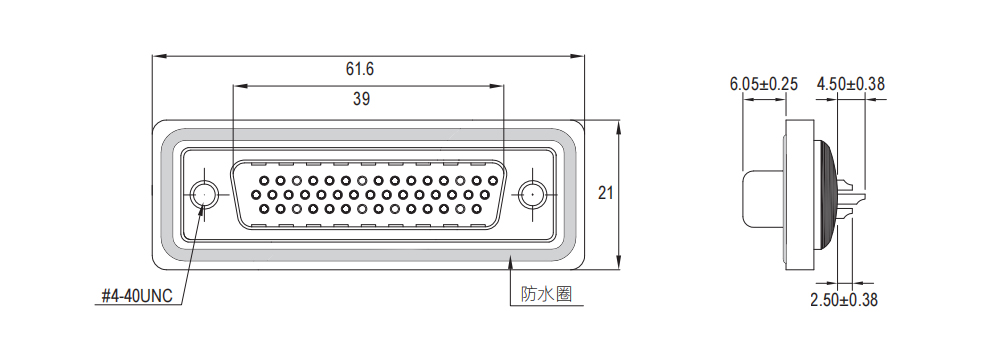

DIMENSIONS
