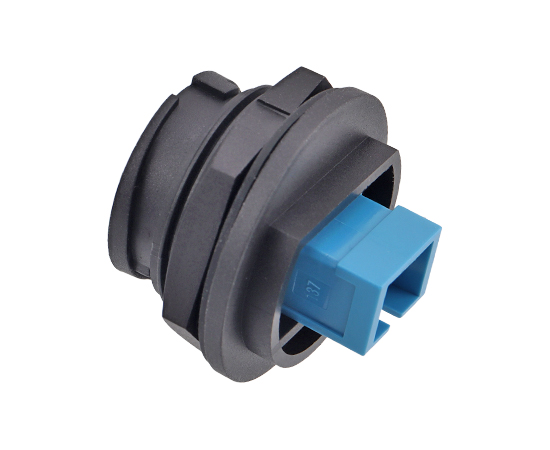

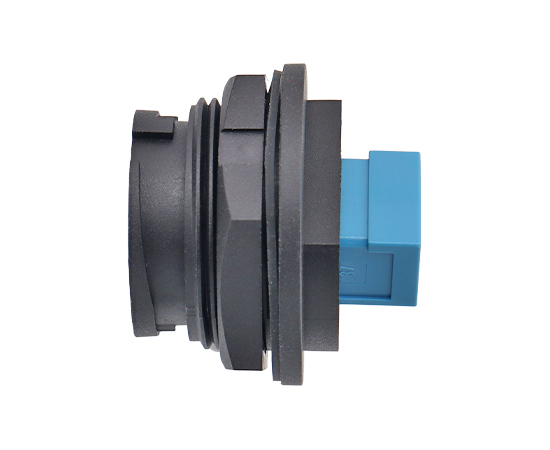

E16FDDI Single-mode Single-core Back Mount Receptacle(Bayonet)
MECHANICAL PARAMETER
| Shell material： | Thermoplastic PA66 Flame retardant grade：UL94-V0 |
| Coupling： | Bayonet(B) |
| Termination way： | Coupling connection |
| Durability： | ≥500次 |
| Wavelength： | 1200~1600nm |
| Applicable temperature： | -25℃ ~ +80℃ |
| Transfer rate： | 10Gb/s |
| Degree of protection： | IP67 |
| Product specifications： | 1"-20UNEF |
| Salt spray corrosion： | 48H |
| Product Name | Tail fastener | P/N | 3D Download | 2D Download |
| E16 EFDDI Single-mode Single-core Back Mount Receptacle(Bayonet) | F1:Single-mode Single-core | E16B-FF1-PRF | ↓ |
| PRODUCT CATALOG | CAZN-Plastic waterproof connector series |
| EMC | EMC Certificate、EMC Report、REACH233 Report |
| RoHS | Certificate、Report |
| WATERPROOF TEST REPORT | Certificate、Report |

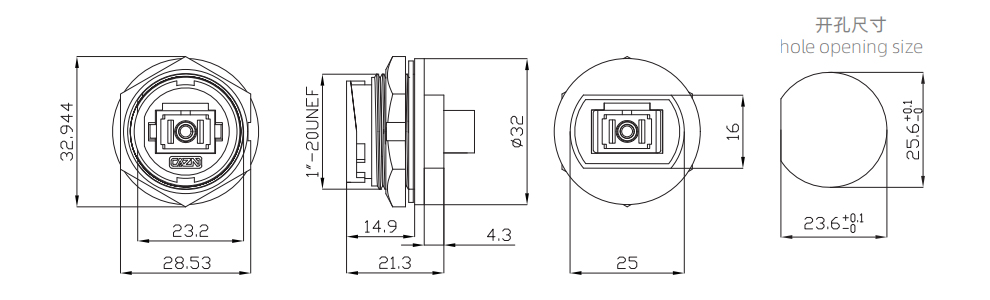

DIMENSIONS
