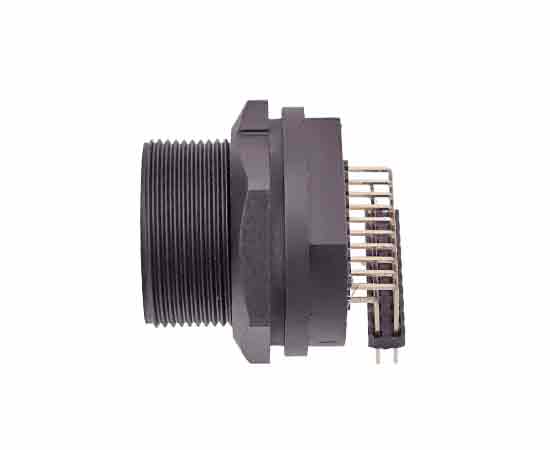

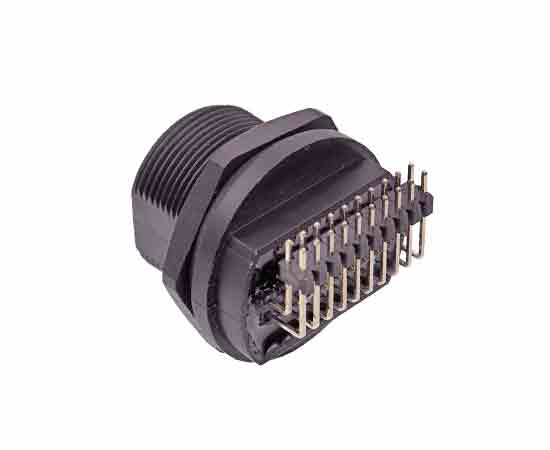

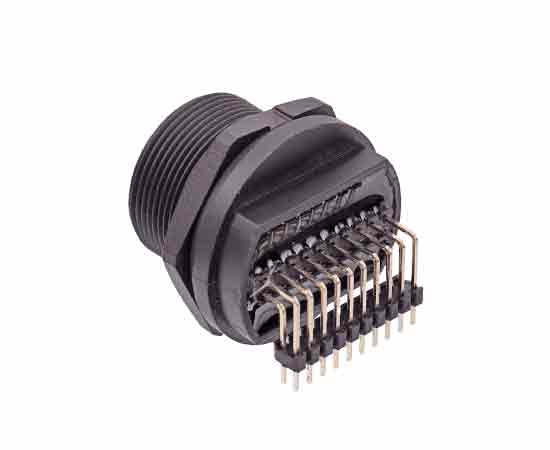

HDMI Female Back Mount Angled PCB Receptacle(Threaded)
MECHANICAL PARAMETER
| Plastic Material： | PA66, Nylon, Reinforced Nylon, Silicone |
| Metal Material： | Copper gold-plated |
| Coupling： | Threaded lock (T) |
| Termination way: | Solder、Welding plate |
| Contact resistance： | 30 mΩ |
| Durability： | ≥10000(Cycles) |
| Insulation resistance： | ≥100 mΩ DC500V |
| Applicable temperature： | -40℃ ~ +105℃ |
| Rated current： | 50 mA |
| Waterproof grade: | IP67 |
| Specification | 13/16"-28UNS |
| Product Name | Specification | P/N | 3D Download | 2D Download |
| HDMI Female Back Mount Angled PCB Receptacle(Threaded) | HDMI-2K | C13T-MI2LF-P | ↓ | ↓ |
| HDMI Female Back Mount Angled PCB Receptacle(Threaded) | HDMI-4K | C13T-MI4LF-P | ↓ | ↓ |
| HDMI Female Back Mount Angled PCB Receptacle(Threaded) | HDMI-8K | C13T-MI8LF-P | ↓ | ↓ |
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

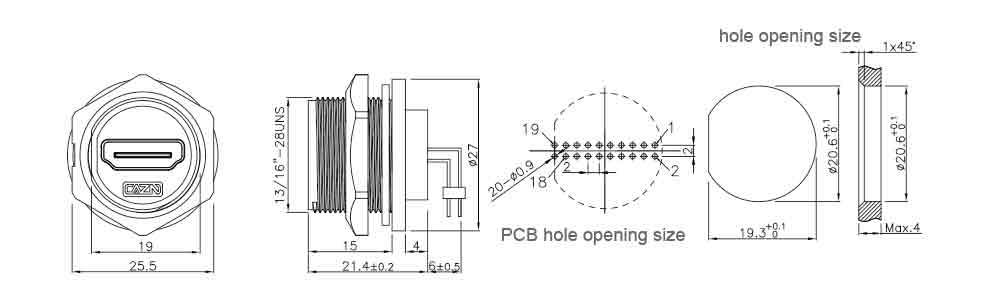

DIMENSION
