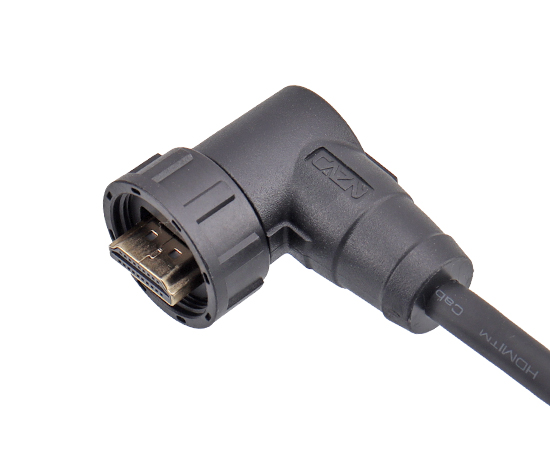

HDMI R/A Male to Str.Male Cable plug(Threaded)
Mechanical parameter
| Plastic Material： | PA66, Nylon, Reinforced Nylon, Silicone |
| Metal Material： | Copper gold-plated |
| Coupling： | Threaded lock (T) |
| Termination way: | Solder、Welding plate |
| Contact resistance： | 30 mΩ |
| Durability： | ≥10000(Cycles) |
| Insulation resistance： | ≥100 mΩ DC500V |
| Applicable temperature： | -40℃ ~ +105℃ |
| Rated current： | 50 mA |
| Waterproof grade: | IP67 |
| Specification | 13/16"-28UNS |
| Product Name | Specification | Cables | Shield | P/N | 3D Download | 2D Download |
| HDMI R/A Male to Str.Male Cable plug(Threaded)-xxM | HDMI-2K | PVC | YES | E13T-MH2-MWD/NWA-xxPV-S | ||
| HDMI R/A Male to Str.Male Cable plug(Threaded)-xxM | HDMI-2K | PVC | NO | E13T-MH2-MWD/NWA-xxPV | ||
| HDMI R/A Male to Str.Male Cable plug(Threaded)-xxM | HDMI-2K | PU | YES | E13T-MH2-MWD/NWA-xxPU-S | ||
| HDMI R/A Male to Str.Male Cable plug(Threaded)-xxM | HDMI-2K | PU | NO | E13T-MH2-MWD/NWA-xxPU | ||
| HDMI R/A Male to Str.Male Cable plug(Threaded)-xxM | HDMI-2K | PE | YES | E13T-MH2-MWD/NWA-xxPE-S | ||
| HDMI R/A Male to Str.Male Cable plug(Threaded)-xxM | HDMI-2K | PE | NO | E13T-MH2-MWD/NWA-xxPE | ||
| HDMI R/A Male to Str.Male Cable plug(Threaded)-xxM | HDMI-4K | PVC | YES | E13T-MH4-MWD/NWA-xxPV-S | ||
| HDMI R/A Male to Str.Male Cable plug(Threaded)-xxM | HDMI-4K | PVC | NO | E13T-MH4-MWD/NWA-xxPV | ||
| HDMI R/A Male to Str.Male Cable plug(Threaded)-xxM | HDMI-4K | PU | YES | E13T-MH4-MWD/NWA-xxPU-S | ||
| HDMI R/A Male to Str.Male Cable plug(Threaded)-xxM | HDMI-4K | PU | NO | E13T-MH4-MWD/NWA-xxPU | ||
| HDMI R/A Male to Str.Male Cable plug(Threaded)-xxM | HDMI-4K | PE | YES | E13T-MH4-MWD/NWA-xxPE-S | ||
| HDMI R/A Male to Str.Male Cable plug(Threaded)-xxM | HDMI-4K | PE | NO | E13T-MH4-MWD/NWA-xxPE | ||
| HDMI R/A Male to Str.Male Cable plug(Threaded)-xxM | HDMI-8K | PVC | YES | E13T-MH8-MWD/NWA-xxPV-S | ||
| HDMI R/A Male to Str.Male Cable plug(Threaded)-xxM | HDMI-8K | PVC | NO | E13T-MH8-MWD/NWA-xxPV | ||
| HDMI R/A Male to Str.Male Cable plug(Threaded)-xxM | HDMI-8K | PU | YES | E13T-MH8-MWD/NWA-xxPU-S | ||
| HDMI R/A Male to Str.Male Cable plug(Threaded)-xxM | HDMI-8K | PU | NO | E13T-MH8-MWD/NWA-xxPU | ||
| HDMI R/A Male to Str.Male Cable plug(Threaded)-xxM | HDMI-8K | PE | YES | E13T-MH8-MWD/NWA-xxPE-S | ||
| HDMI R/A Male to Str.Male Cable plug(Threaded)-xxM | HDMI-8K | PE | NO | E13T-MH8-MWD/NWA-xxPE |
*If you need to choose other wire, please consult customer service
| Product Catalog | CAZN-Plastic waterproof connector series |
| REACH233 | REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |
Dimension
