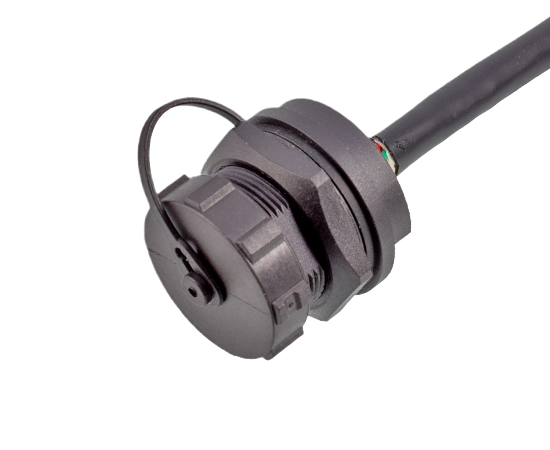

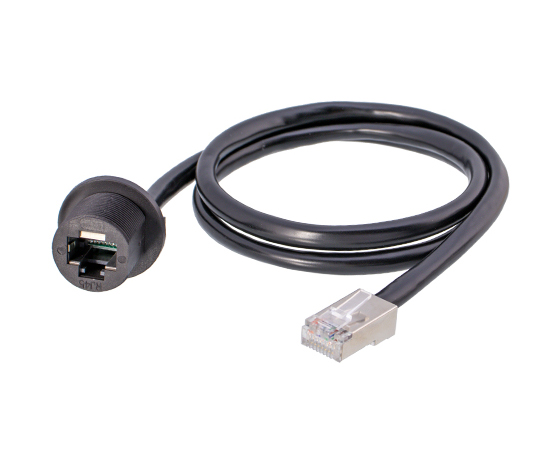

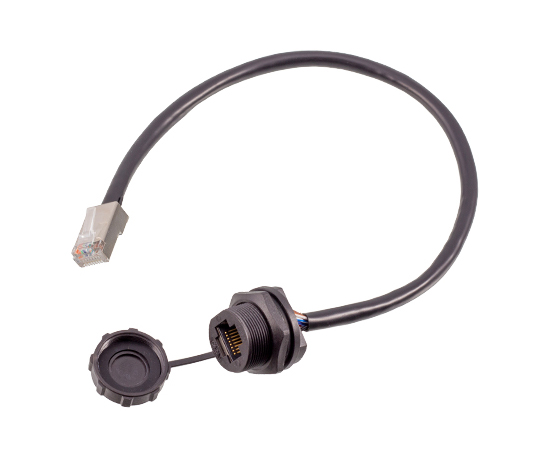

RJ45 Female Back Mount Receptacle with PCB Board(Threaded)
Mechanical parameter
| Shell material： | Thermoplastic plastic PA66, flame retardant grade: V-0 |

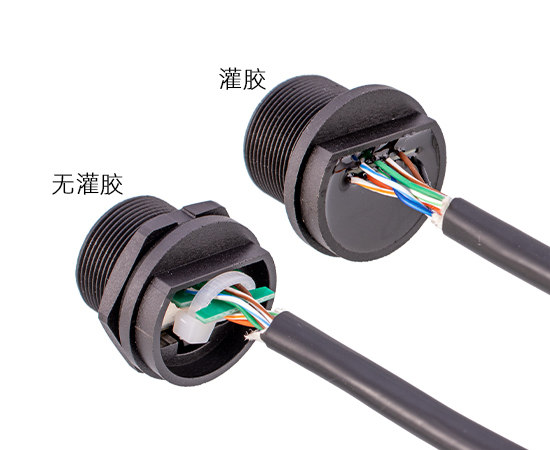

| Sealing material： | Epoxy resin/rubber |
| Contact material： | Phosphor copper gold-plated |
| Conform standard: | CAT5e，CAT6a |
| Contact impedance： | ≤5mΩ |
| Durability： | ≥750(Cycles) |
| Applicable temperature： | -30℃ ~ +105℃ |
| Wiring range： | 5.5mm~7.0mm |
| Waterproof grade: | IP67 |
| Product Name | Specification | Cable | Ground connection | P/N | 3D Download | 2D Download |
| RJ45 Female Back Mount Receptacle with PCB Board(Threaded)-xxM | 5E | PVC | YES | C13T-RJ5FF/RJ5AM-N-xxV | ↓ | ↓ |
| RJ45 Female Back Mount Receptacle with PCB Board(Threaded)-xxM | 5E | PVC | NO | C13T-RJ5FF/RJ5AM-N-xxV-JD | ↓ | ↓ |
| RJ45 Female Back Mount Receptacle with PCB Board(Threaded)-xxM | 5E | PU | YES | EC13T-RJ5FF/RJ5AM-N-xxU | ↓ | ↓ |
| RJ45 Female Back Mount Receptacle with PCB Board(Threaded)-xxM | 5E | PU | NO | EC13T-RJ5FF/RJ5AM-N-xxU-JD | ↓ | ↓ |
| RJ45 Female Back Mount Receptacle with PCB Board(Threaded)-xxM | 6E | PVC | YES | EC13T-RJ6FF/RJ6AM-N-xxV-JD | ↓ | ↓ |
| RJ45 Female Back Mount Receptacle with PCB Board(Threaded)-xxM | 6E | PVC | NO | EC13T-RJ6FF/RJ6AM-N-xxV | ↓ | ↓ |
| RJ45 Female Back Mount Receptacle with PCB Board(Threaded)-xxM | 6E | PU | YES | EC13T-RJ6FF/RJ6AM-N-xxU-JD | ↓ | ↓ |
| RJ45 Female Back Mount Receptacle with PCB Board(Threaded)-xxM | 6E | PU | NO | EC13T-RJ6FF/RJ6AM-N-xxU | ↓ | ↓ |
*If you need to choose other wire, please consult customer service
| Product Catalog | CAZN-Plastic waterproof connector series |
| REACH233 | REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

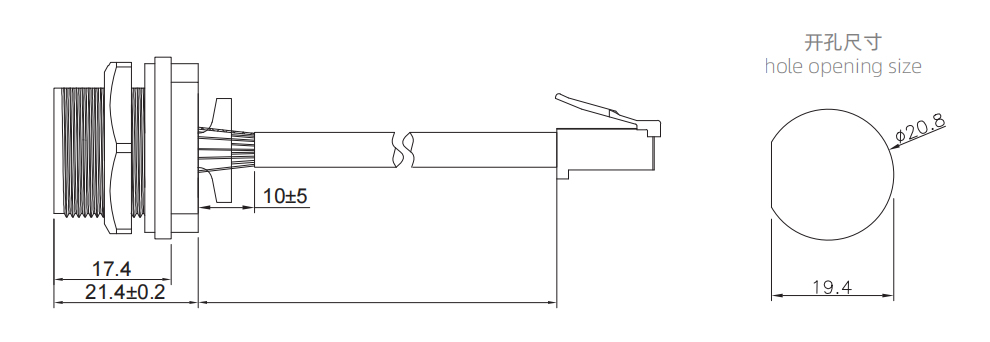

Dimension
