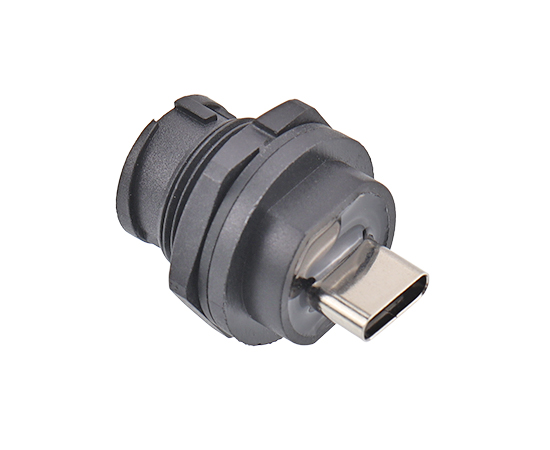

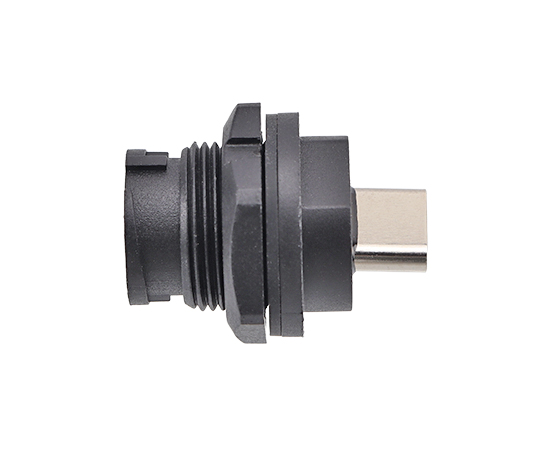

TYPE-C Female to Female Back Mount Receptacle(Bayonet)
Mechanical parameter
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material: | Brass |
| Cable material: | PVC |
| Coupling: | Thread (T); Bayonet(B) |
| Waterproof grade: | IP67，IP68 |
| Rated voltage | 30V |
| Rated current | 1.5A |
| Insulation resistance: | 2000 mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Durability: | ≥2000~10000次(Cycles) |
| Product Name | Standards | P/N | 3D Download | 2D Download |
| TYPE-C Female to Female Back Mount Receptacle(Bayonet) | USB 2.0 | B10B-C20FF/F | ||
| TYPE-C Female to Female Back Mount Receptacle(Bayonet) | USB 3.0 | B10B-C30FF/F | ↓ | ↓ |
| TYPE-C Female to Female Back Mount Receptacle(Bayonet) | USB 3.1 | B10B-C31FF/F | ||
| TYPE-C Female to Female Back Mount Receptacle(Bayonet) | USB 4.0 | B10B-C40FF/F |
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

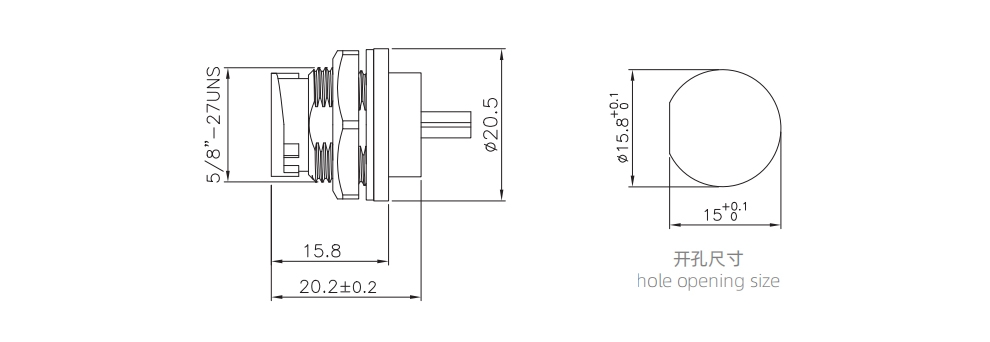

Dimension
