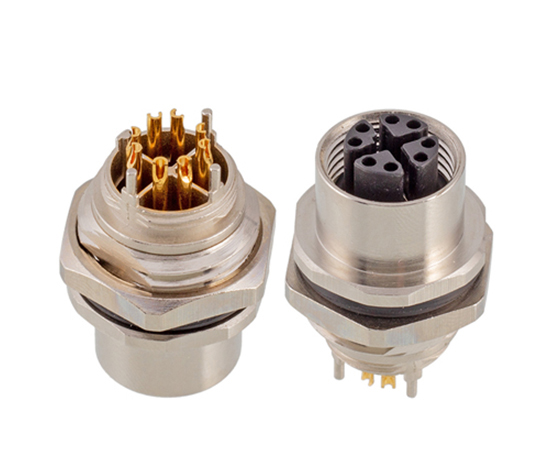

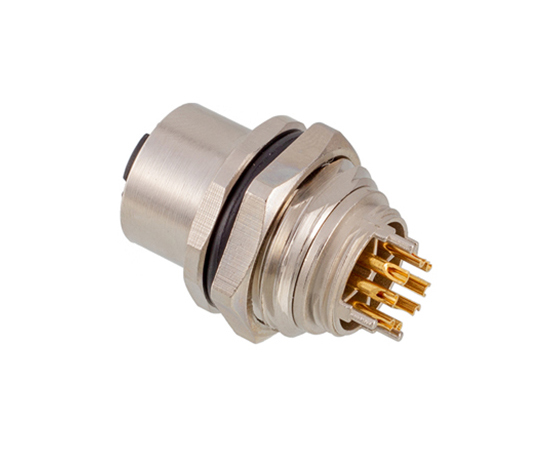

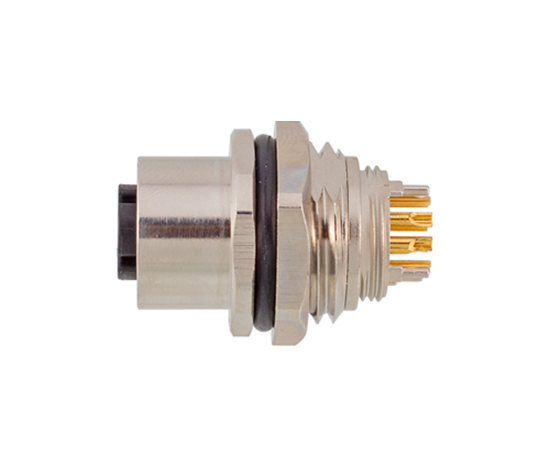

M12 Female Front Mount Socket Data type Solder Screw M16*1.5
Technical Parameter
Shell material | Brass nickel plating/Zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | Epoxy resin/Rubber |
Contact material | Brass /Phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | Insulation impedance |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |
Electrical parameter
Product name | Outlet size-M16 | 3D Download | 2D Download |
M12 female front mount socket data type 8X solder screw M16*1.5 | M12-S8X-GWBM16 | ||
M12 female front mount socket data type 6Y solder screw M16*1.5 | M12-S6Y-GWBM16 | ||
M12 female front mount socket data type 8Y solder screw M16*1.5 | M12-S8Y-GWBM16 |
Dimension
Wiring Definition
