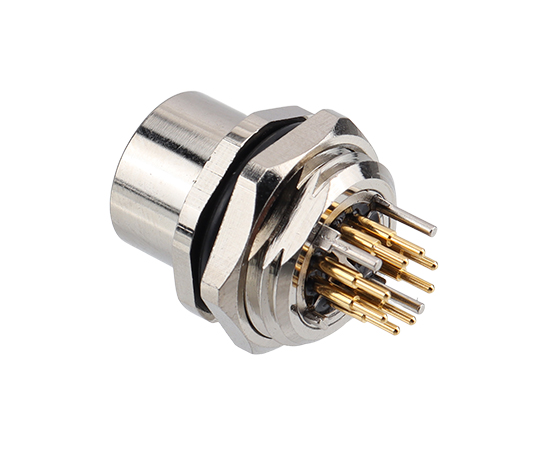

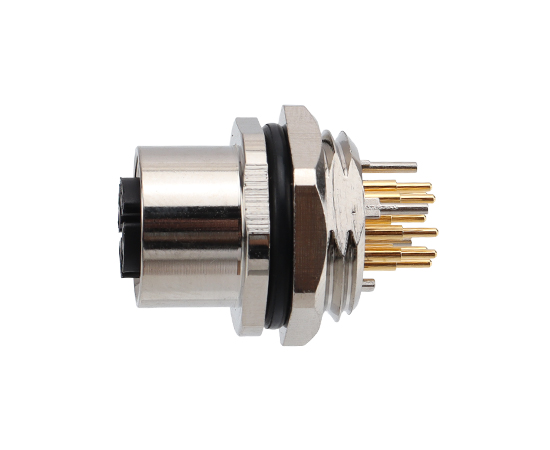

M12 Female Front Mount Socket PCB
Technical Parameter
Shell material | Brass nickel plating/Zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | Epoxy resin/Rubber |
Contact material | Brass /Phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | Insulation impedance |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |
Electrical parameter
Dimension
Wiring Definition
