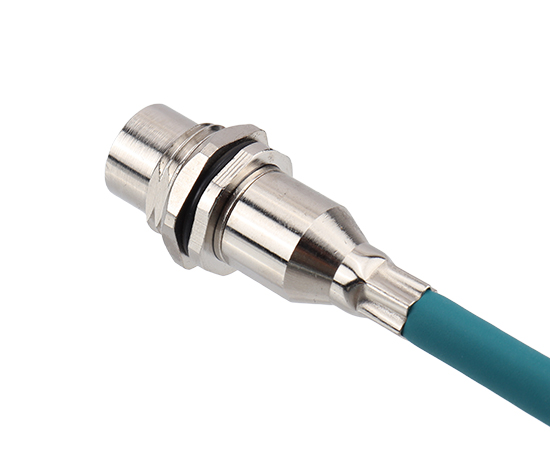

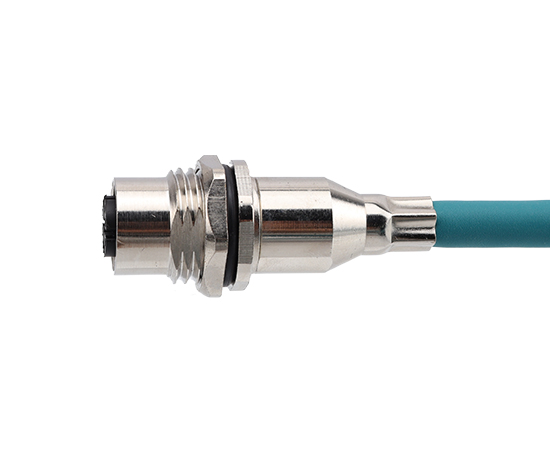

M12 plate rear mounting hole socket welding shielded type
Technical Parameters | |
Shell material： | Brass nickel plating/Zinc alloy nickel/PA+GF |
Rubber core material： | PA66/TPU |
Sealing material： | Epoxy resin/Fluororubber |
Pin material： | Phosphor copper gold plating/Brass gold plating |
Forming materials： | PUR/PVC |
Insulation impedance： | ≥100 MΩ |
Contact impedance： | ≤5 mΩ |
Durability： | ≥500 times |
Applicable temperature： | -25℃ ~ +80℃ |
IP code： | IP65 / IP67 |
Electrical parameter
Product name | Outlet size-M16 | Outlet size-PG9 | 3D Download | 2D Download |
M12 female back mount socket data type 8X solder shielded screw M16*1.5/PG9 | M12-S8X-GWFM16-PBG | M12-S8X-GWFPG9-PBG | ||
M12 female back mount socket data type 6Y solder shielded screw M16*1.5/PG9 | M12-S6Y-GWFM16-PBG | M12-S6Y-GWFPG9-PBG | ||
M12 female back mount socket data type 8Y solder shielded screw M16*1.5/PG9 | M12-S8Y-GWFM16-PBG | M12-S8Y-GWFPG9-PBG |
Dimension
Wiring Definition
