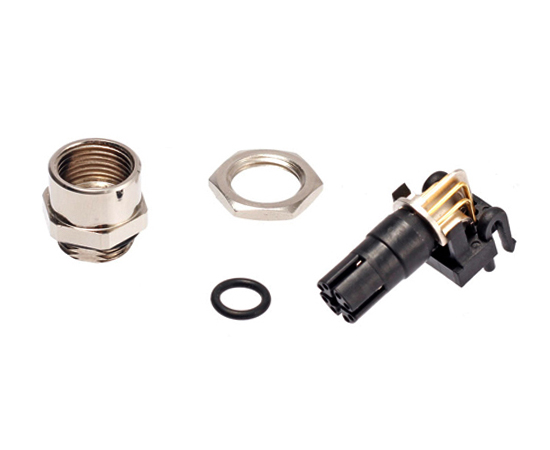

M12 Right Angled Female Socket Data type PCB

European standard connector M12 series

Structure type: front mount socket

Pin type: female type

Contacts number: 8X、6Y、8Y

Connection method: PCB

Shield: Yes

Certification: CE RoHS

Standard: IEC 61076-2-101

Shopping

Technical Parameter

Shell material	Brass nickel plating/Zinc alloy nickel/PA+GF
Insulator material	PA+GF/TPU
Sealing material	Epoxy resin/Rubber
Contact material	Brass /Phosphorus copper gold-plated
Molding material	TPU/PVC
Insulation impedance	Insulation impedance
Contact impedance	≤ 5 m Ω
Durability	≥ 500 cycles
Applicable temperature	-25 ℃~+80 ℃
Waterproof	IP65/IP67
Executive standard	IEC 61076-2-101

Electrical parameter

Product name	Pins	Product No.	3D Download	2D Download
M12 Right angle Female Socket (PCB)	8X	M12-S8X-PPL	↓	↓
M12 Right angle Female Socket (PCB)	6Y	M12-S6Y-PPL
M12 Right angle Female Socket (PCB)	8Y	M12-S8Y-PPL

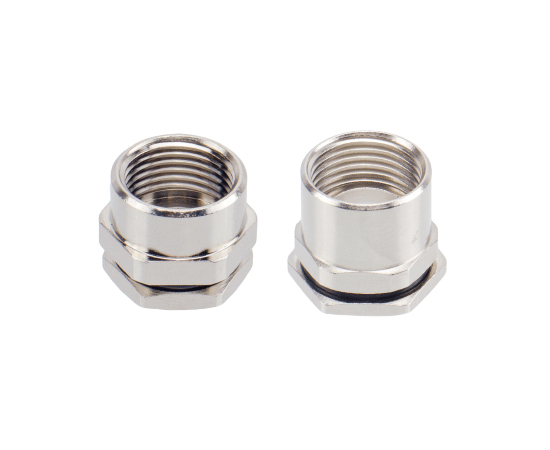

M12 Front Mount Female Shell(Screw M12*1)	-	M12-SGBM12-X	↓	↓
M12 Back Mount Female Shell(Screw M12*1)	-	M12-SGFM12-X	↓	↓
