M12 Straight Female Overmolded Plug (LED)
TECHNICAL PARAMETER
| Shell material | Brass nickel plating/Zinc alloy nickel/PA+GF |
| Insulator material | PA+GF/TPU |
| Sealing material | Epoxy resin/Rubber |
| Contact material | Brass/Phosphorus copper gold-plated |
| Molding material | TPA/PVC |
| Insulation impedance | ≥ 100 MΩ |
| Contact impedance | ≤ 5 mΩ |
| Durability | ≥ 500 cycles |
| Applicable temperature | -25℃ ~ +80℃ |
| Waterproof | IP65/IP67 |
| Executive standard | IEC 61076-2-101 |

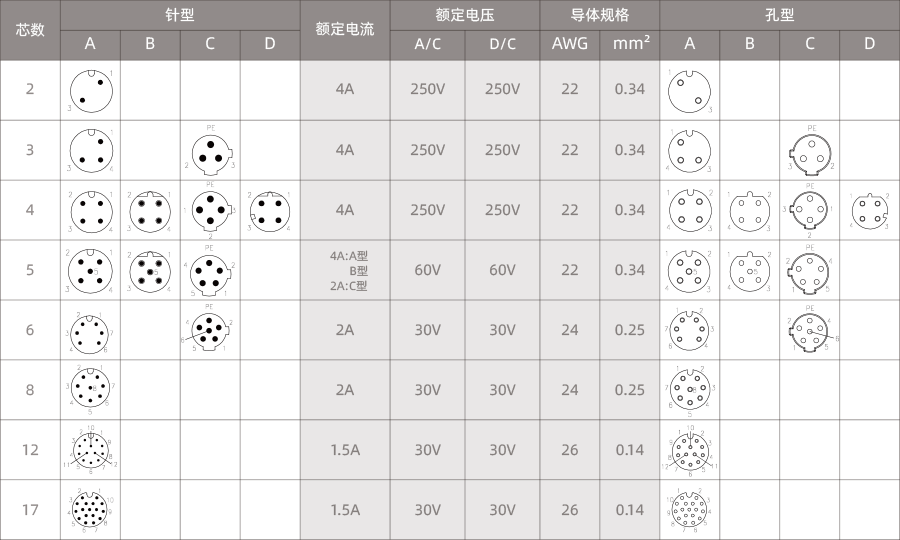

ELECTRICAL PARAMETERS
| Product Name | LED Qty | Pins | Part No. | 3D Download | 2D Download |
| M12 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 2 lights PNP | 3A | M12-S3A-MWA-1PV-LP2 | ||
| M12 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 2 lights NPN | 3A | M12-S3A-MWA-1PV-LN2 | ||
| M12 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 3 lights PNP | 3A | M12-S3A-MWA-1PV-LP3 | ||
| M12 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 3 lights NPN | 3A | M12-S3A-MWA-1PV-LN3 | ||
| M12 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 2 lights PNP | 4A | M12-S4A-MWA-1PV-LP2 | ||
| M12 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 2 lights NPN | 4A | M12-S4A-MWA-1PV-LN2 | ||
| M12 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 3 lights PNP | 4A | M12-S4A-MWA-1PV-LP3 | ||
| M12 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 3 lights NPN | 4A | M12-S4A-MWA-1PV-LN3 | ||
| M12 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 2 lights PNP | 5A | M12-S5A-MWA-1PV-LP2 | ||
| M12 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 2 lights NPN | 5A | M12-S5A-MWA-1PV-LN2 | ||
| M12 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 3 lights PNP | 5A | M12-S5A-MWA-1PV-LP3 | ||
| M12 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 3 lights NPN | 5A | M12-S5A-MWA-1PV-LN3 |
*If need to choose other wires, please consult customer service.
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |

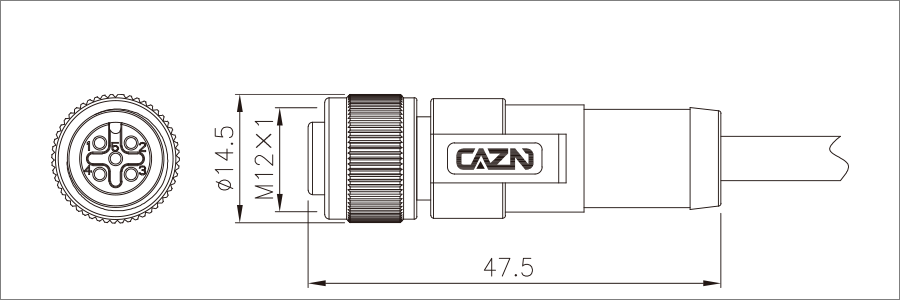

DIMENSION

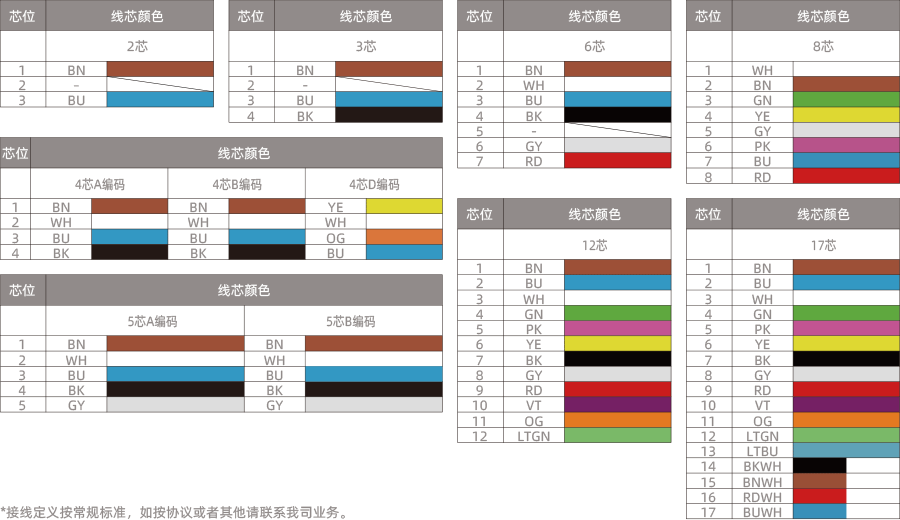

WIRING DEFINITION
