M12 Female SMD Socket Data type SMD type
Technical Parameter
Shell material | Brass nickel plating/Zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | Epoxy resin/Rubber |
Contact material | Brass /Phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | Insulation impedance |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |
Electrical parameter
| Product name | Pins | Product No. | 3D Download | 2D Download |

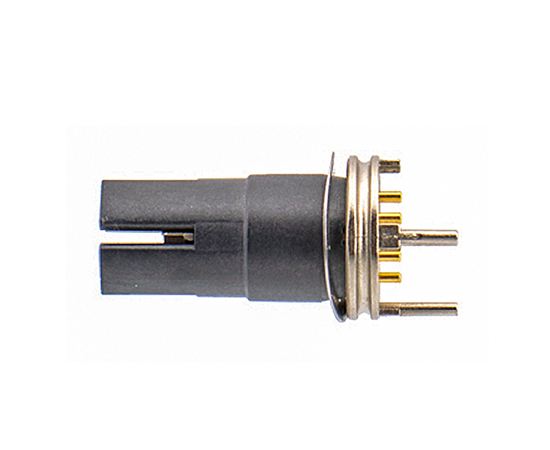

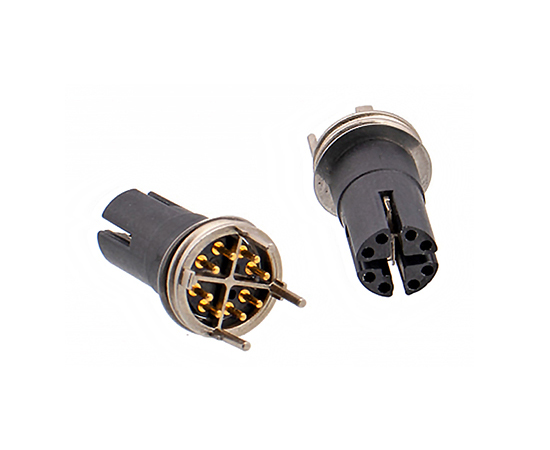

| M12 Right angle Female Socket (PCB) | 8X | M12-S8X-PPL | ↓ | ↓ |
| M12 Right angle Female Socket (PCB) | 6Y | M12-S6Y-PPL | ||
| M12 Right angle Female Socket (PCB) | 8Y | M12-S8Y-PPL | ||

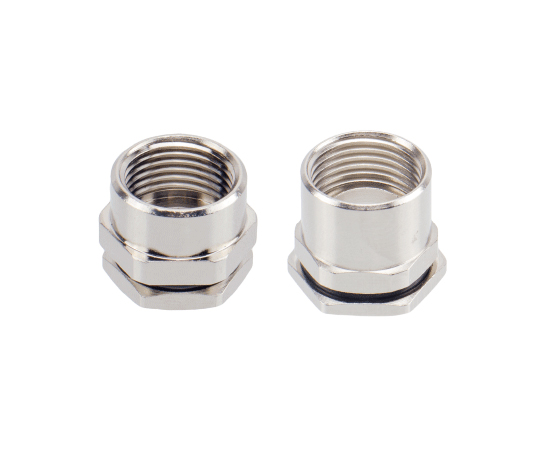

| M12 Front Mount Female Shell(Screw M12*1) | - | M12-SGBM12-X | ↓ | ↓ |
| M12 Back Mount Female Shell(Screw M12*1) | - | M12-SGFM12-X | ↓ | ↓ |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |
Dimension
Wiring Definition
