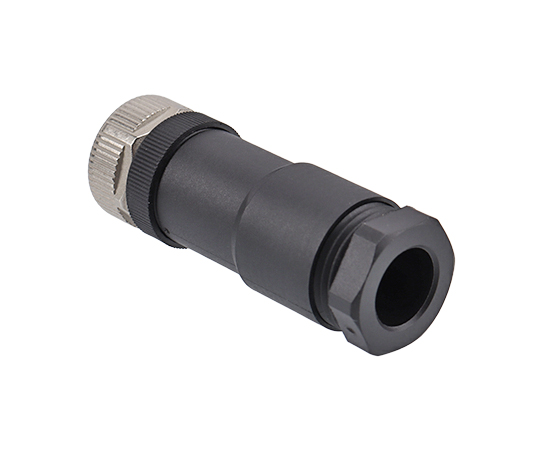

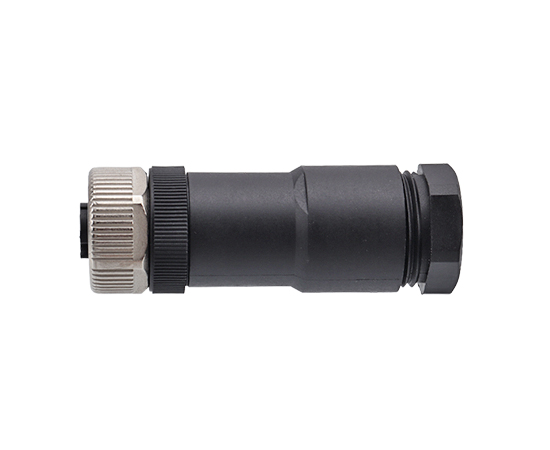

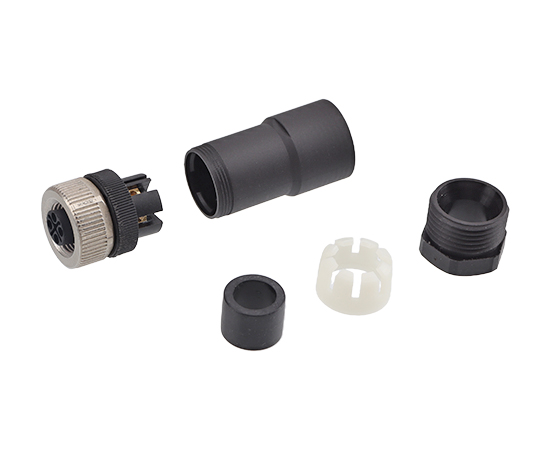

TECHNICAL PARAMETER
Shell material | Brass nickel plating / Zinc alloy nickel / PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | Epoxy resin / Rubber |
Contact material | Brass / Phosphorus copper gold-plated |
Molding material | TPU / PVC |
Insulation impedance | ≥ 100 MΩ |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 Cycles |
Applicable temperature | -25℃ ~ +80℃ |
Waterproof | IP65 / IP67 |
Executive standard | IEC 61076-2-101 |

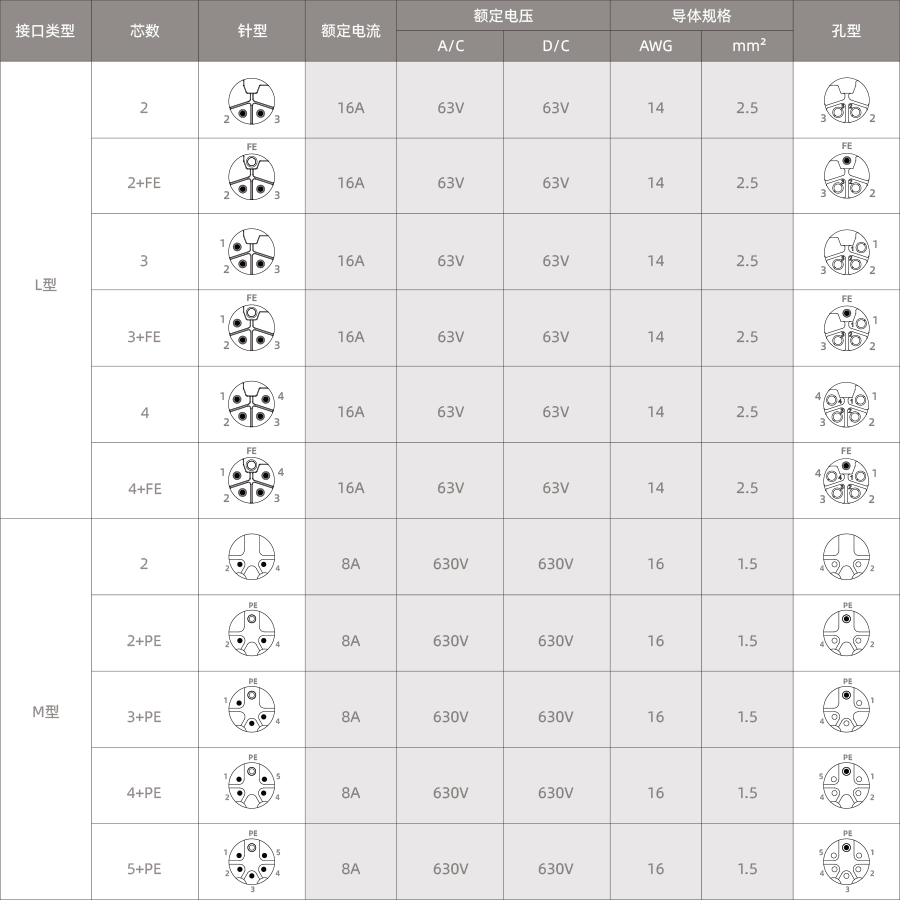

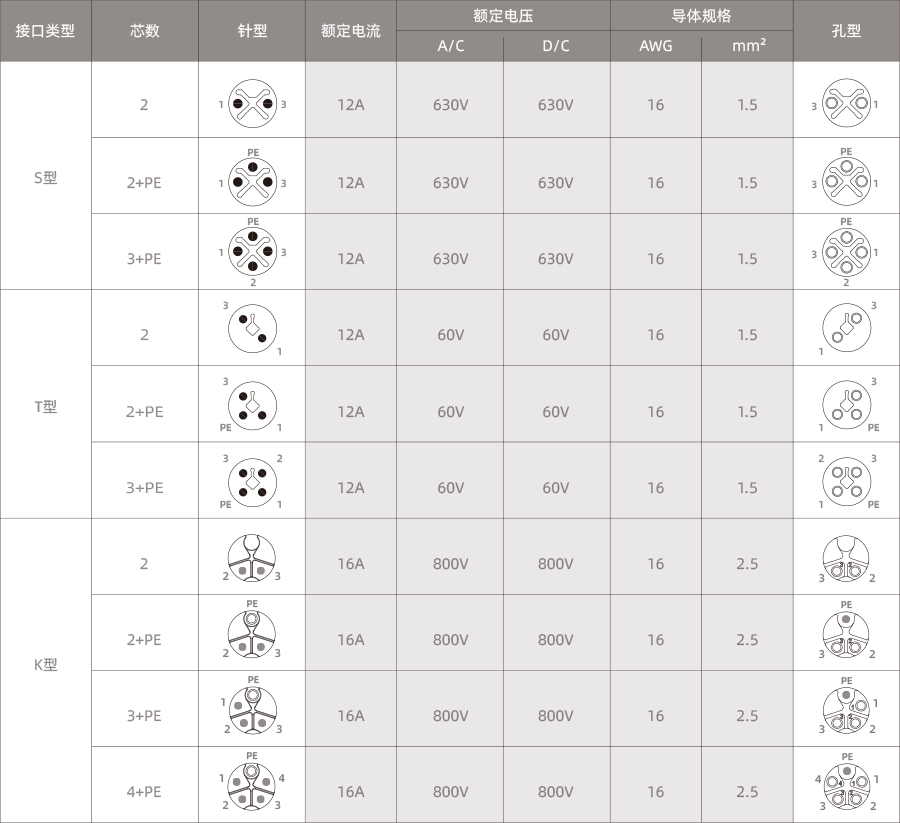

ELECTRICAL PARAMETER
Product Name | Pins | Outlet Size-PG9 | Outlet Size-PG11 | 3D Download | 2D Download |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | 2S | M12-S2S-PLAP9 | M12-S2S-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | (2+PE)S | M12-S2PS-PLAP9 | M12-S2PS-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | (3+PE)S | M12-S3PS-PLAP9 | M12-S3PS-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | 2T | M12-S2T-PLAP9 | M12-S2T-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | (2+PE)T | M12-S2PT-PLAP9 | M12-S2PT-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | (3+PE)T | M12-S3PT-PLAP9 | M12-S3PT-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | 2K | M12-S2K-PLAP9 | M12-S2K-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | (2+PE)K | M12-S2PK-PLAP9 | M12-S2PK-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | (3+PE)K | M12-S3PK-PLAP9 | M12-S3PK-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | (4+PE)K | M12-S4PK-PLAP9 | M12-S4PK-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | 2L | M12-S2L-PLAP9 | M12-S2L-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | (2+FE)L | M12-S2FL-PLAP9 | M12-S2FL-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | 3L | M12-S3L-PLAP9 | M12-S3L-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | (3+FE)L | M12-S3FL-PLAP9 | M12-S3FL-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | 4L | M12-S4L-PLAP9 | M12-S4L-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | (4+FE)L | M12-S4FL-PLAP9 | M12-S4FL-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | 2M | M12-S2M-PLAP9 | M12-S2M-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | (2+PE)M | M12-S2PM-PLAP9 | M12-S2PM-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | (3+PE)M | M12-S3PM-PLAP9 | M12-S3PM-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | (4+PE)M | M12-S4PM-PLAP9 | M12-S4PM-PLAP11 | PG9/PG11 | PG9/PG11 |
M12 Straight Female Plastic Assembled Plug (Power type, Screw) | (5+PE)M | M12-S5PM-PLAP9 | M12-S5PM-PLAP11 | PG9/PG11 | PG9/PG11 |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |

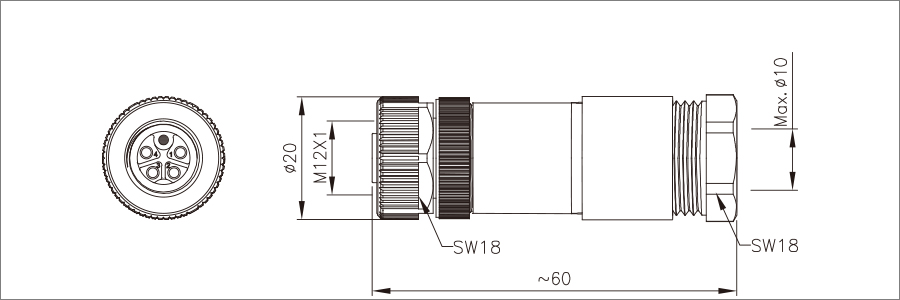

DIMENSION

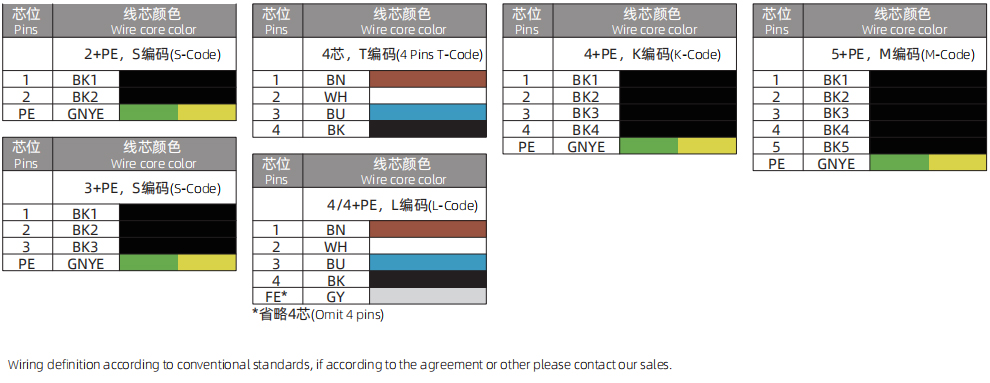

WIRING DEFINITION
