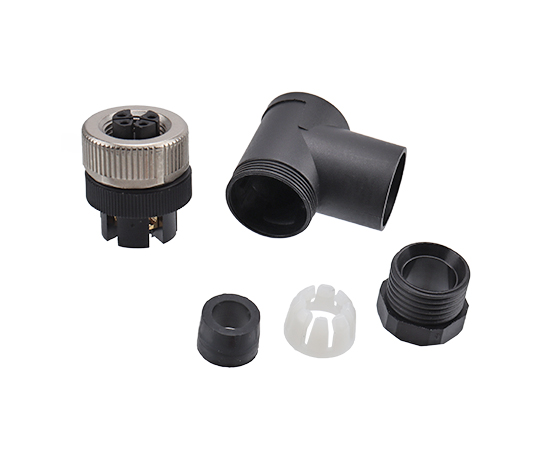

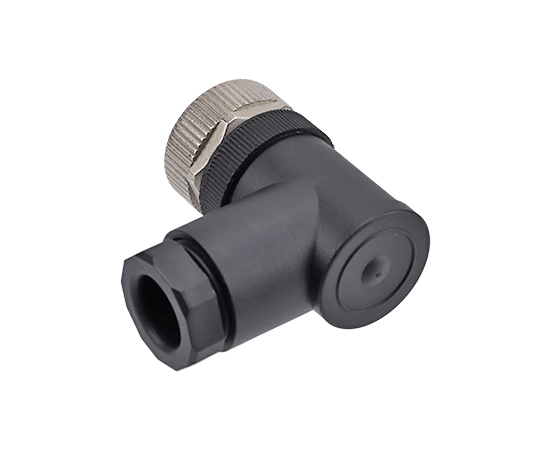

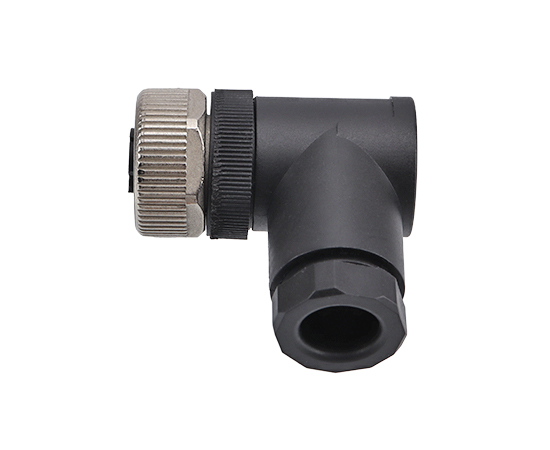

TECHNICAL PARAMETER
Shell material | Brass nickel plating / Zinc alloy nickel / PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | Epoxy resin / Rubber |
Contact material | Brass / Phosphorus copper gold-plated |
Molding material | TPU / PVC |
Insulation impedance | ≥ 100 MΩ |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 Cycles |
Applicable temperature | -25℃ ~ +80℃ |
Waterproof | IP65 / IP67 |
Executive standard | IEC 61076-2-101 |

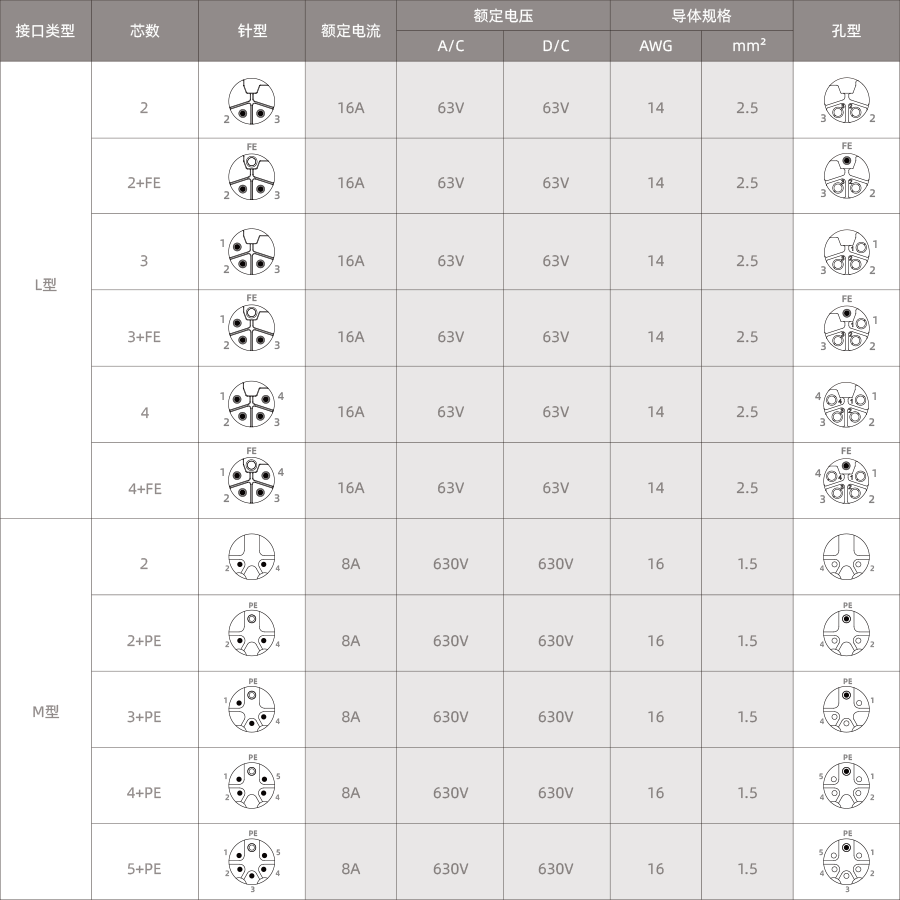

ELECTRICAL PARAMETER
Product Name | Pins | Outlet Size-PG9 | 3D Download | 2D Download |
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | 2S | M12-S2S-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | (2+PE)S | M12-S2PS-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | (3+PE)S | M12-S3PS-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | 2T | M12-S2T-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | (2+PE)T | M12-S2PT-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | (3+PE)T | M12-S3PT-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | 2K | M12-S2K-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | (2+PE)K | M12-S2PK-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | (3+PE)K | M12-S3PK-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | (4+PE)K | M12-S4PK-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | 2L | M12-S2L-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | (2+FE)L | M12-S2FL-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | 3L | M12-S3L-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | (3+FE)L | M12-S3FL-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | 4L | M12-S4L-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | (4+FE)L | M12-S4FL-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | 2M | M12-S2M-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | (2+PE)M | M12-S2PM-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | (3+PE)M | M12-S3PM-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | (4+PE)M | M12-S4PM-PWDP9 | ||
M12 Angled Female Plastic Assembled Plug (Power type, Screw) | (5+PE)M | M12-S5PM-PWDP9 |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |

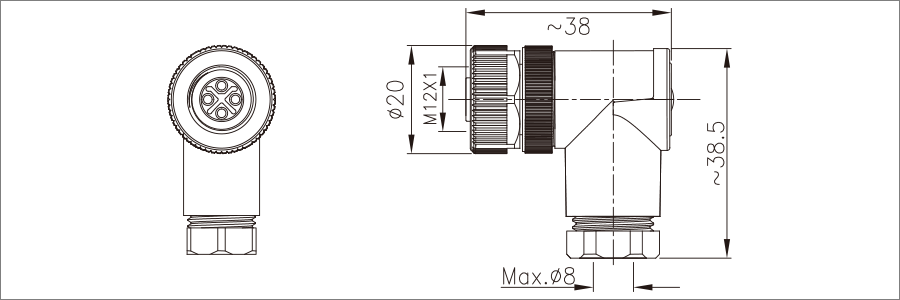

DIMENSION

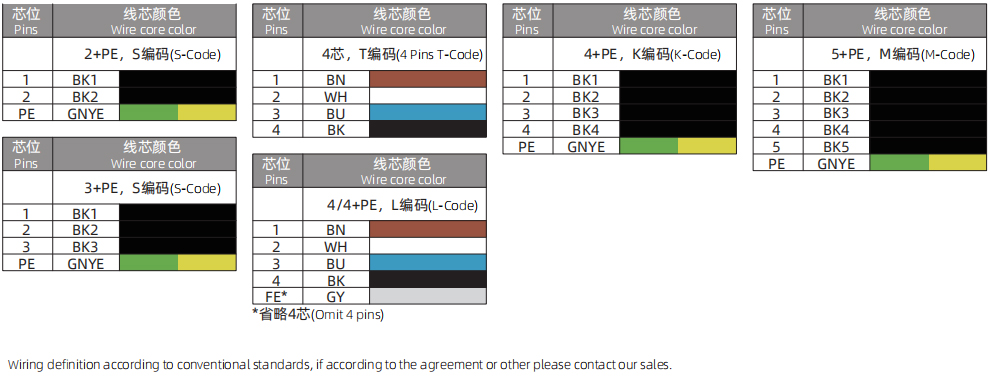

WIRING DEFINITION
