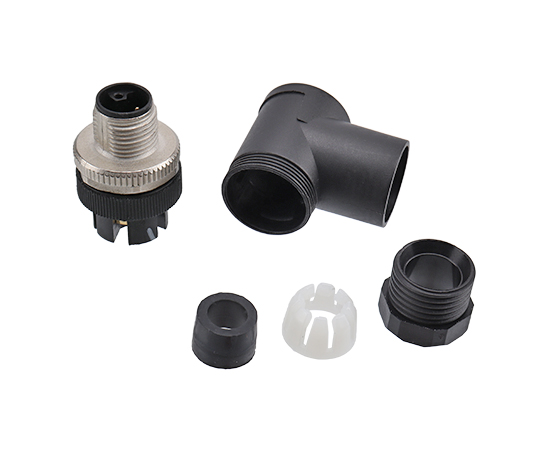

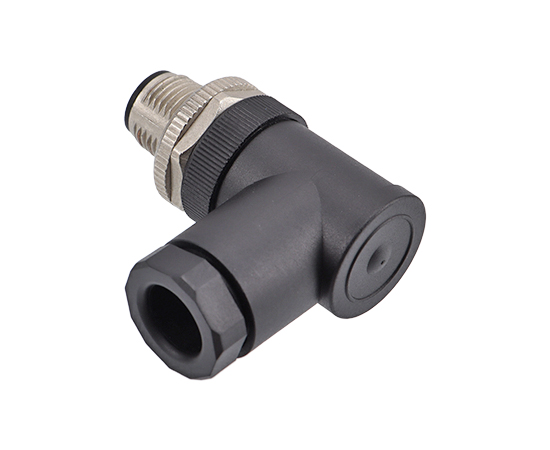

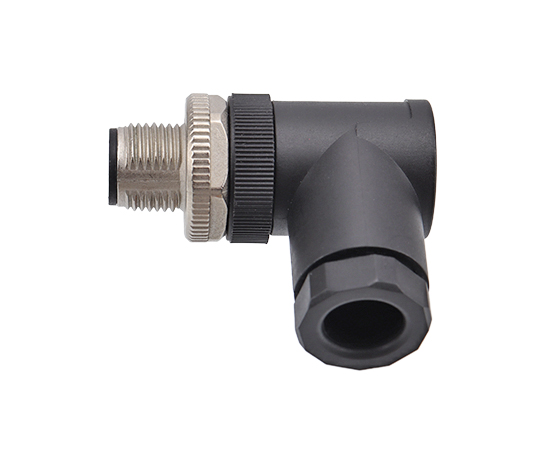

TECHNICAL PARAMETER
Shell material | Brass nickel plating / Zinc alloy nickel / PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | Epoxy resin / Rubber |
Contact material | Brass / Phosphorus copper gold-plated |
Molding material | TPU / PVC |
Insulation impedance | ≥ 100 MΩ |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 Cycles |
Applicable temperature | -25℃ ~ +80℃ |
Waterproof | IP65 / IP67 |
Executive standard | IEC 61076-2-101 |

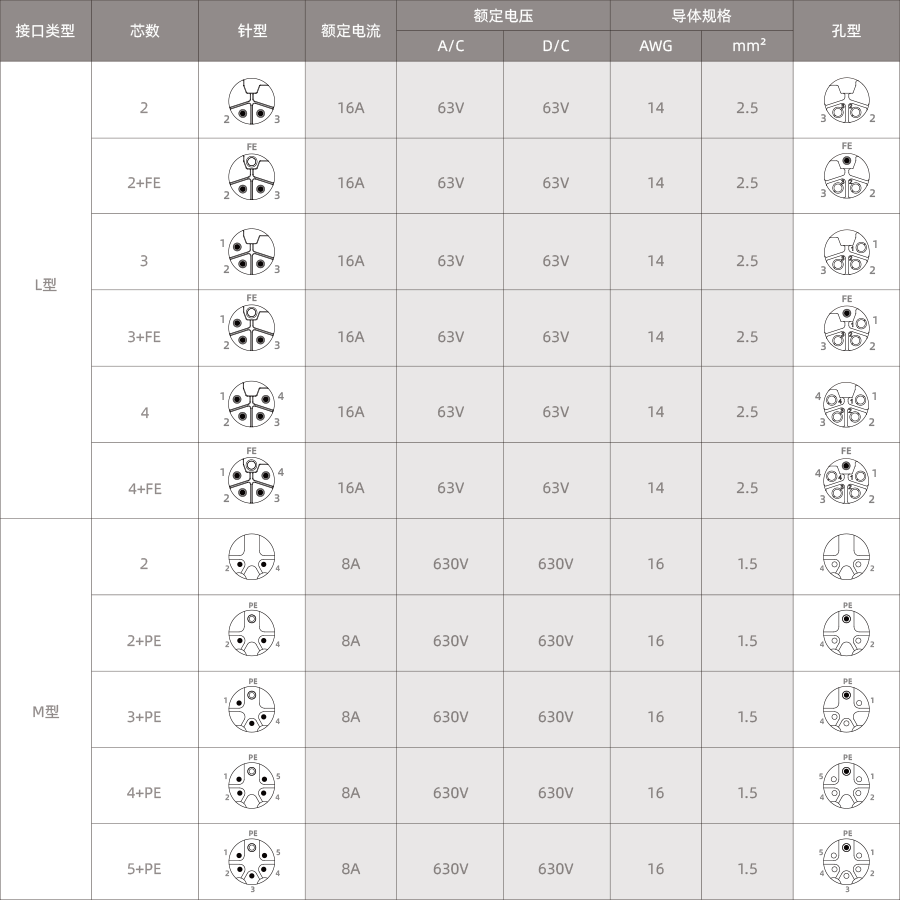

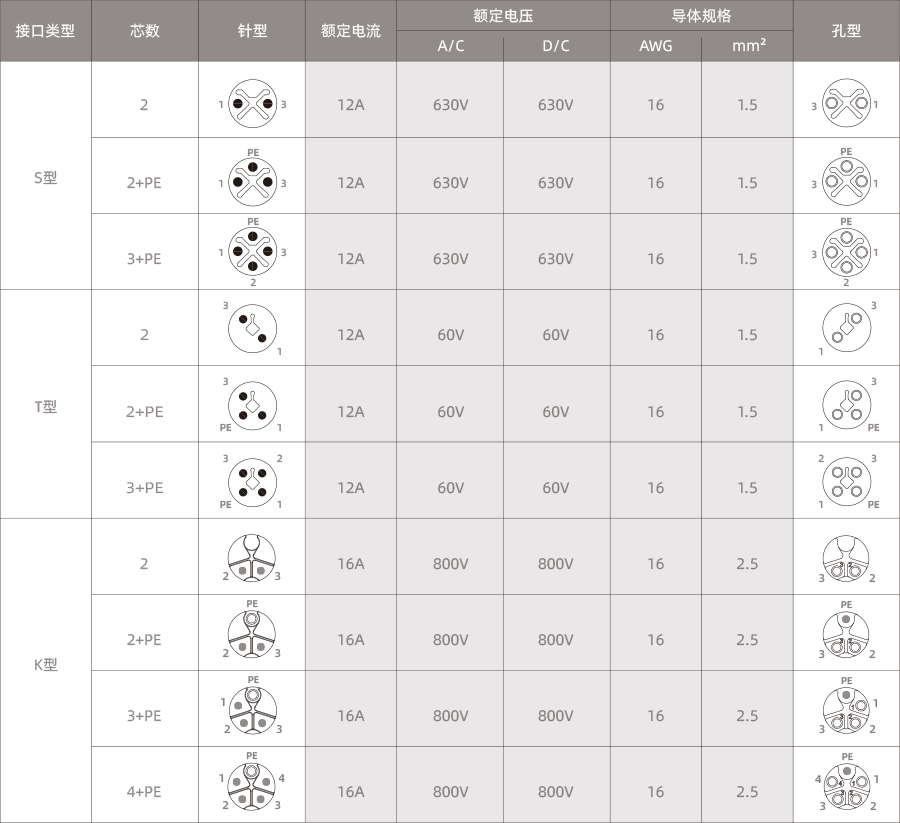

ELECTRICAL PARAMETER
Product Name | Pins | Outlet Size-PG9 | 3D Download | 2D Download |
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | 2S | M12S-02PDM-PSP9 | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | (2+PE)S | M12S-03PDM-PSP9 | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | (3+PE)S | M12S-04PDM-PSP9 | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | 2T | M12T-02PDM-PSP9 | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | (2+PE)T | M12T-03PDM-PSP9 | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | (3+PE)T | M12T-04PDM-PSP9 | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | 2K | M12K-02PDM-PSP9 | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | (2+PE)K | M12K-03PDM-PSP9 | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | (3+PE)K | M12K-04PDM-PSP9 | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | (4+PE)K | M12K-05PDM-PSP9 | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | 2L | M12L-02PDM-PSP9-N | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | (2+FE)L | M12L-02PDM-PSP9 | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | 3L | M12L-03PDM-PSP9-N | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | (3+FE)L | M12L-03PDM-PSP9 | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | 4L | M12L-04PDM-PSP9-N | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | (4+FE)L | M12L-04PDM-PSP9 | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | 2M | M12-P2M-PWDP9 | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | (2+PE)M | M12-P2PM-PWDP9 | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | (3+PE)M | M12-P3PM-PWDP9 | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | (4+PE)M | M12-P4PM-PWDP9 | ||
M12 Angled Male Plastic Assembled Plug (Power type, Screw) | (5+PE)M | M12-P5PM-PWDP9 |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |

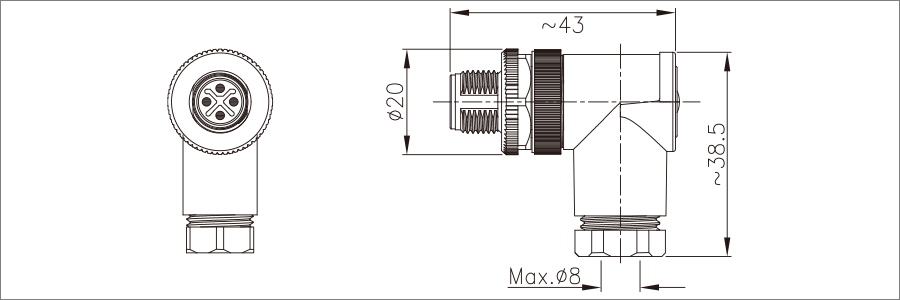

DIMENSION

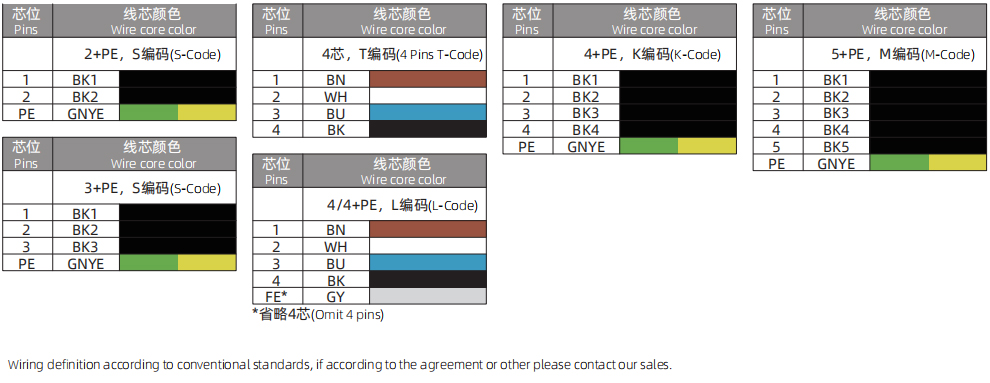

WIRING DEFINITION
