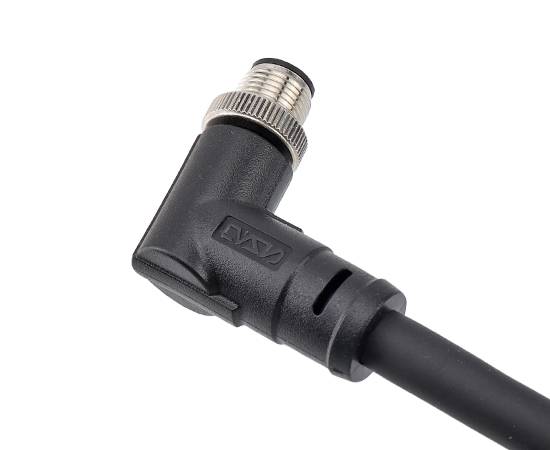

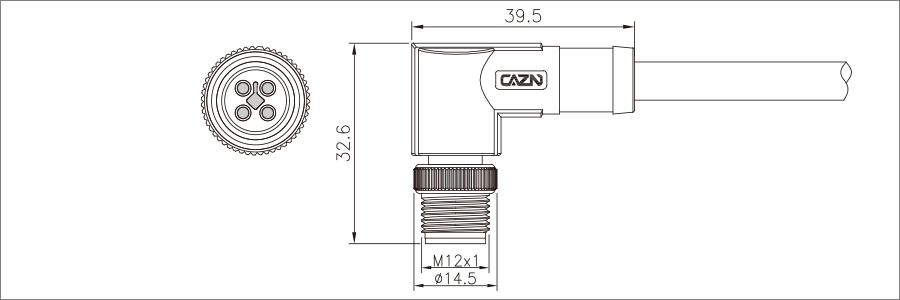

M12 Angled Male Overmolded Plug Power type

European standard connector M12 series power type

Structure type: Overmolded curved plug

Pin type: Male type

Contacts number: 2,3,4,5,6 Pins

Connection method: Solder

Shield: No

Certification: CE RoHS

Standard: IEC 61076-2-111-2014

PDF Download

Shopping

TECHNICAL PARAMETER

Shell material	Brass nickel plating / Zinc alloy nickel/PA+GF
Insulator material	PA+GF / TPU
Sealing material	Epoxy resin / Rubber
Contact material	Brass / Phosphorus copper gold-plated
Molding material	TPA / PVC
Insulation impedance	≥ 100 MΩ
Contact impedance	≤ 5 mΩ
Durability	≥ 500 cycles
Applicable temperature	-25℃ ~ +80℃
Waterproof	IP65 / IP67
Executive standard	IEC 61076-2-111-2014

ELECTRICAL PARAMETER

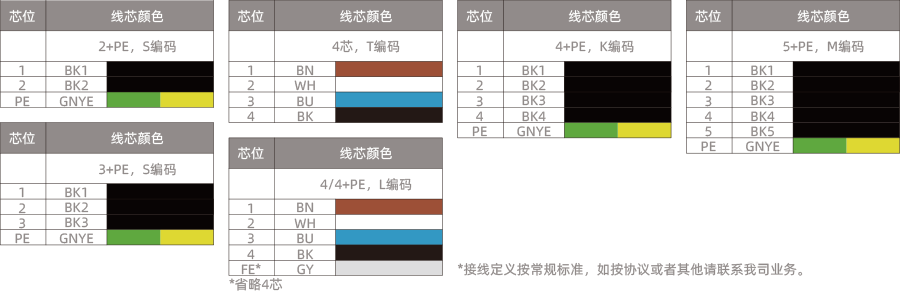

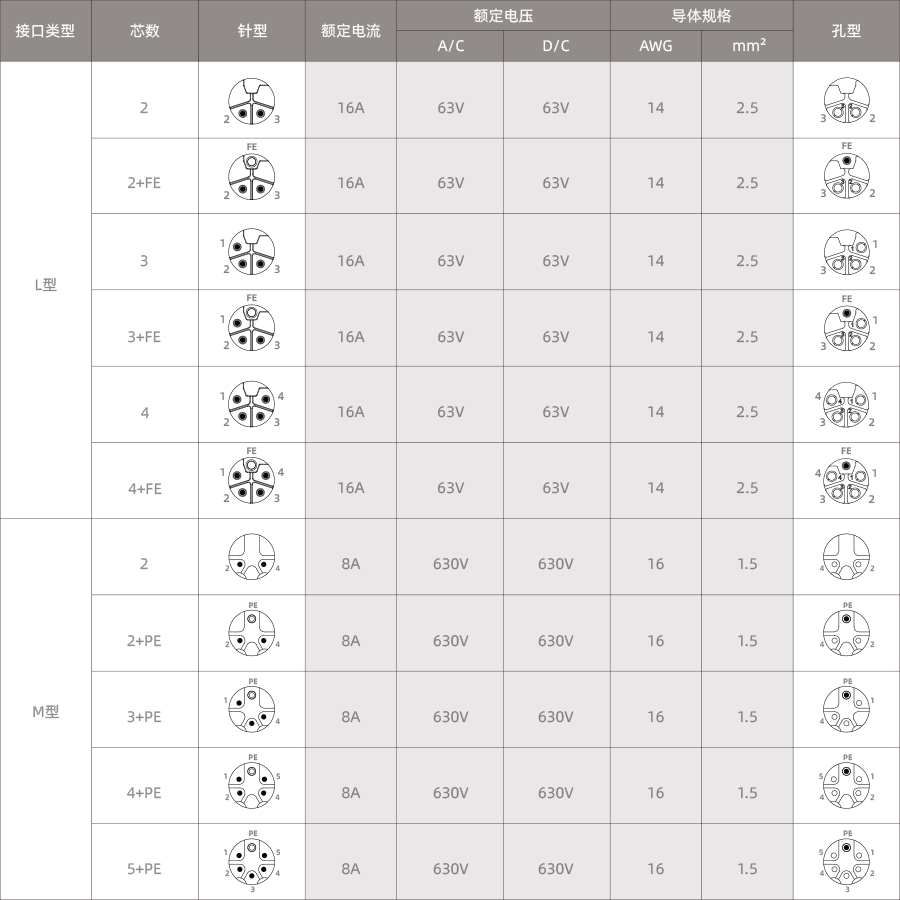

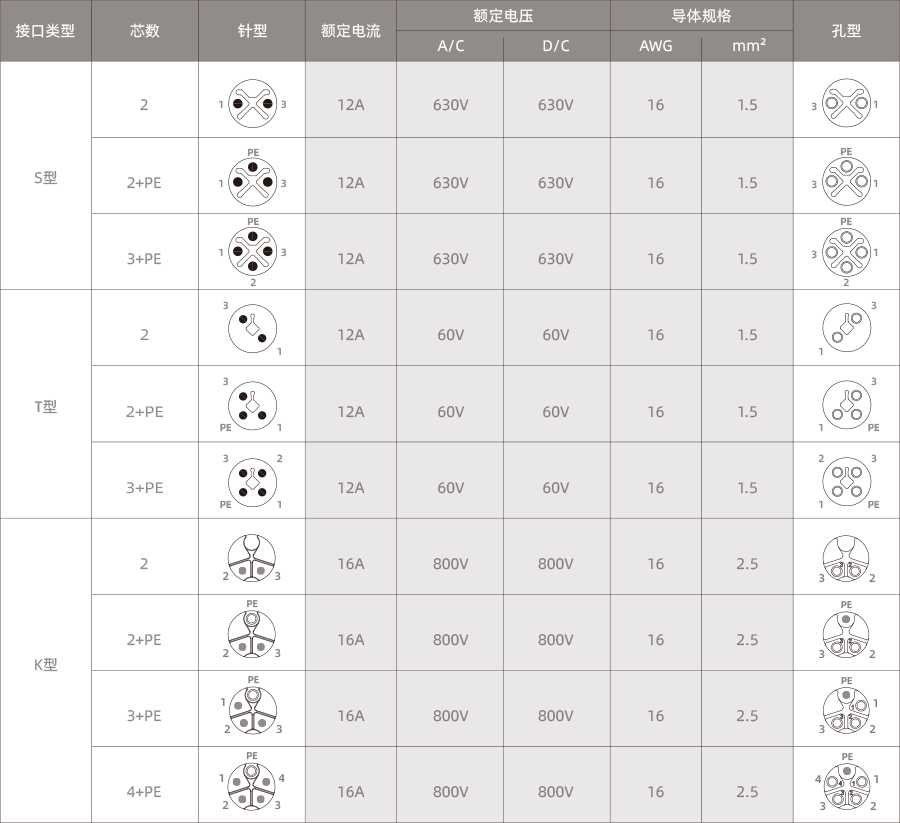

M12-电气参数STLKM-900-1.png M12-电气参数STLKM-900-2.png

Product Name	Pins	Part No.-Shielded	Part No.-Unshielded	3D Download	2D Download
M12 Angled Male Overmolded Plug(Power type)	2S	M12-P2S-MWD-xxPV-S	M12-P2S-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	(2+PE)S	M12-P2PS-MWD-xxPV-S	M12-P2PS-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	(3+PE)S	M12-P3PS-MWD-xxPV-S	M12-P3PS-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	2T	M12-P2T-MWD-xxPV-S	M12-P2T-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	(2+PE)T	M12-P2PT-MWD-xxPV-S	M12-P2PT-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	(3+PE)T	M12-P3PT-MWD-xxPV-S	M12-P3PT-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	2K	M12-P2K-MWD-xxPV-S	M12-P2K-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	(2+PE)K	M12-P2PK-MWD-xxPV-S	M12-P2PK-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	(3+PE)K	M12-P3PK-MWD-xxPV-S	M12-P3PK-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	(4+PE)K	M12-P4PK-MWD-xxPV-S	M12-P4PK-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	2L	M12-P2L-MWD-xxPV-S	M12-P2L-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	(2+FE)L	M12-P2FL-MWD-xxPV-S	M12-P2FL-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	3L	M12-P3L-MWD-xxPV-S	M12-P3L-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	(3+FE)L	M12-P3FL-MWD-xxPV-S	M12-P3FL-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	4L	M12-P4L-MWD-xxPV-S	M12-P4L-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	(4+FE)L	M12-P4FL-MWD-xxPV-S	M12-P4FL-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	2M	M12-P2M-MWD-xxPV-S	M12-P2M-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	(2+PE)M	M12-P2PM-MWD-xxPV-S	M12-P2PM-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	(3+PE)M	M12-P3PM-MWD-xxPV-S	M12-P3PM-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	(4+PE)M	M12-P4PM-MWD-xxPV-S	M12-P4PM-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
M12 Angled Male Overmolded Plug(Power type)	(5+PE)M	M12-P5PM-MWD-xxPV-S	M12-P5PM-MWD-xxPV	Shielded/ Unshielded	Shielded/ Unshielded
