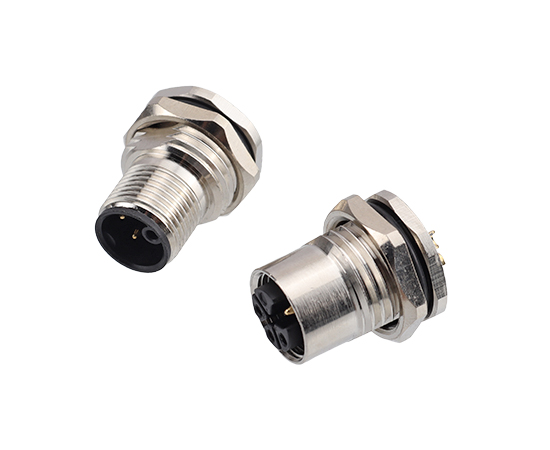

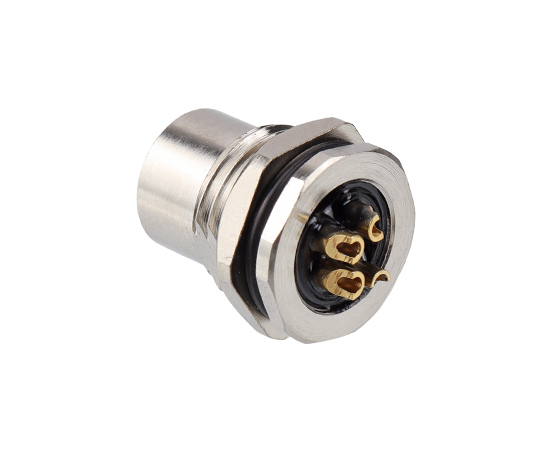

Technical Parameter
Shell material | Brass nickel plating/Zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | Epoxy resin/Rubber |
Contact material | Brass /Phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | ≥ 100 m Ω |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |
Electrical parameter
Product name | Outlet size-M16 | 3D Download | 2D Download |
M12 female back mount socket power type 2S solder screw M16*1.5 | M12-S2S-GWFM16 | ||
M12 female back mount socket power type 2PS solder screw M16*1.5 | M12-S2PS-GWFM16 | ||
M12 female back mount socket power type 3PS solder screw M16*1.5 | M12-S2PS-GWFM16 | ||
M12 female back mount socket power type 2T solder screw M16*1.5 | M12-S2T-GWFM16 | ||
M12 female back mount socket power type 2PT solder screw M16*1.5 | M12-S2PT-GWFM16 | ||
M12 female back mount socket power type 3PT solder screw M16*1.5 | M12-S2PT-GWFM16 | ||
M12 female back mount socket power type 2K solder screw M16*1.5 | M12-S2K-GWFM16 | ||
M12 female back mount socket power type 2PK solder screw M16*1.5 | M12-S2PK-GWFM16 | ||
M12 female back mount socket power type 3PK solder screw M16*1.5 | M12-S3PK-GWFM16 | ||
M12 female back mount socket power type 4PK solder screw M16*1.5 | M12-S4PK-GWFM16 | ||
M12 female back mount socket power type 2L solder screw M16*1.5 | M12-S2L-GWFM16 | ||
M12 female back mount socket power type 2FL solder screw M16*1.5 | M12-S2FL-GWFM16 | ||
M12 female back mount socket power type 3L solder screw M16*1.5 | M12-S3L-GWFM16 | ||
M12 female back mount socket power type 3FL solder screw M16*1.5 | M12-S3FL-GWFM16 | ||
M12 female back mount socket power type 4L solder screw M16*1.5 | M12-S4L-GWFM16 | ||
M12 female back mount socket power type 4FL solder screw M16*1.5 | M12-S4FL-GWFM16 |
Dimension
Wiring Definition
