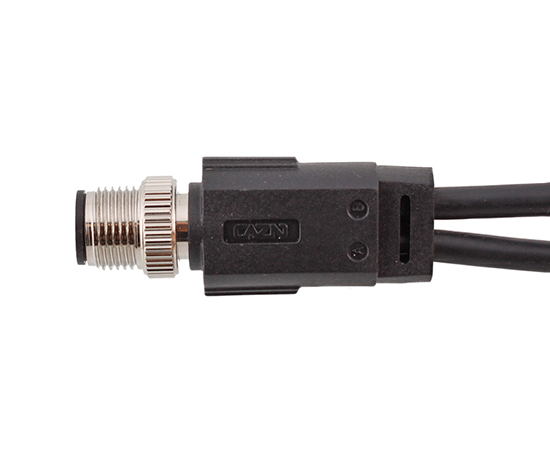

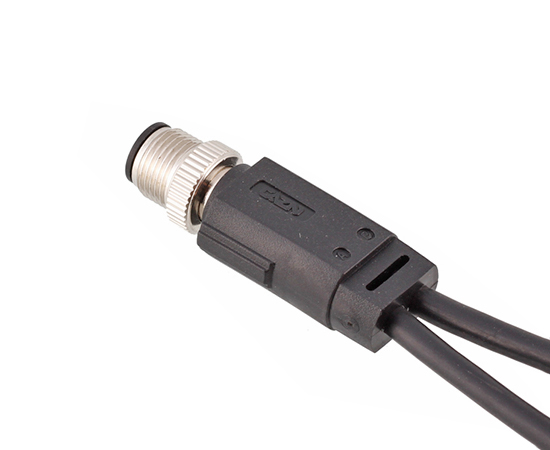

TECHNICAL PARAMETER
| Shell material | Brass nickel plating / Zinc alloy nickel/PA+GF |
| Insulator material | PA+GF / TPU |
| Sealing material | Epoxy resin / Rubber |
| Contact material | Brass / Phosphorus copper gold-plated |
| Molding material | TPA / PVC |
| Insulation impedance | ≥ 100 MΩ |
| Contact impedance | ≤ 5 mΩ |
| Durability | ≥ 500 cycles |
| Applicable temperature | -25℃ ~ +80℃ |
| Waterproof | IP65 / IP67 |
| Executive standard | IEC 61076-2-101 |

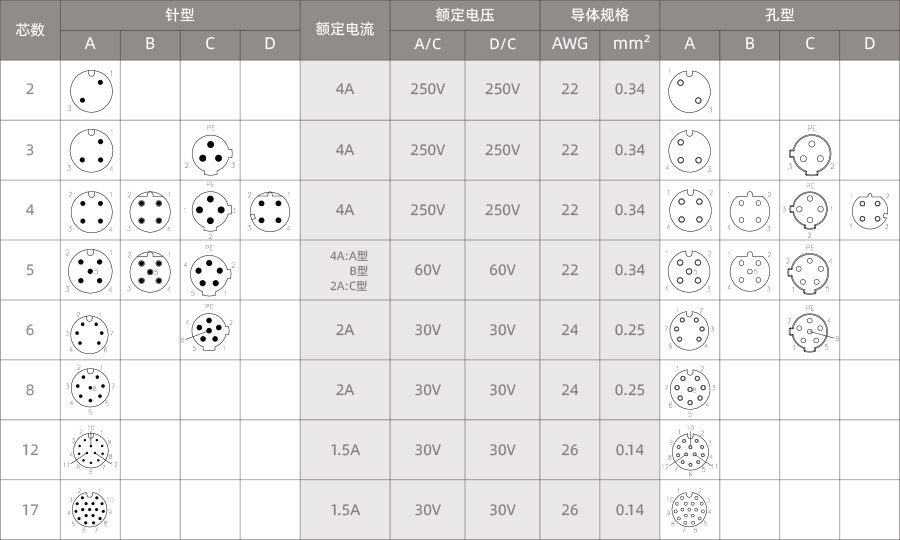

ELECTRICAL PARAMETERS
Product Name | Pins | Part No.-Shielded | Part No.-Unshielded | 3D | 2D |
M12 Male 1 to 2 Overmolded Plug-xx M-PVC Jacket | 2A | M12-P2A-MWA-xxPV-S-1T2 | M12-P2A-MWA-xxPV-1T2 | Shielded/ | Shielded/ |
M12 Male 1 to 2 Overmolded Plug-xx M-PVC Jacket | 3A | M12-P3A-MWA-xxPV-S-1T2 | M12-P3A-MWA-xxPV-1T2 | Shielded/ | Shielded/ |
M12 Male 1 to 2 Overmolded Plug-xx M-PVC Jacket | 4A | M12-P4A-MWA-xxPV-S-1T2 | M12-P4A-MWA-xxPV-1T2 | Shielded/ | Shielded/ |
M12 Male 1 to 2 Overmolded Plug-xx M-PVC Jacket | 5A | M12-P5A-MWA-xxPV-S-1T2 | M12-P5A-MWA-xxPV-1T2 | Shielded/ | Shielded/ |
M12 Male 1 to 2 Overmolded Plug-xx M-PVC Jacket | 6A | M12-P6A-MWA-xxPV-S-1T2 | M12-P6A-MWA-xxPV-1T2 | Shielded/ | Shielded/ |
M12 Male 1 to 2 Overmolded Plug-xx M-PVC Jacket | 8A | M12-P8A-MWA-xxPV-S-1T2 | M12-P8A-MWA-xxPV-1T2 | Shielded/ | Shielded/ |
M12 Male 1 to 2 Overmolded Plug-xx M-PVC Jacket | 12A | M12-P12A-MWA-xxPV-S-1T2 | M12-P12A-MWA-xxPV-1T2 | Shielded/ | Shielded/ |
M12 Male 1 to 2 Overmolded Plug-xx M-PVC Jacket | 17A | M12-P17A-MWA-xxPV-S-1T2 | M12-P17A-MWA-xxPV-1T2 | Shielded/ | Shielded/ |
M12 Male 1 to 2 Overmolded Plug-xx M-PVC Jacket | 5B | M12-P5B-MWA-xxPV-S-1T2 | M12-P5B-MWA-xxPV-1T2 | Shielded/ | Shielded/ |
M12 Male 1 to 2 Overmolded Plug-xx M-PVC Jacket | 3C | M12-P3C-MWA-xxPV-S-1T2 | M12-P3C-MWA-xxPV-1T2 | Shielded/ | Shielded/ |
M12 Male 1 to 2 Overmolded Plug-xx M-PVC Jacket | 4C | M12-P4C-MWA-xxPV-S-1T2 | M12-P4C-MWA-xxPV-1T2 | Shielded/ | Shielded/ |
M12 Male 1 to 2 Overmolded Plug-xx M-PVC Jacket | 5C | M12-P5C-MWA-xxPV-S-1T2 | M12-P5C-MWA-xxPV-1T2 | Shielded/ | Shielded/ |
M12 Male 1 to 2 Overmolded Plug-xx M-PVC Jacket | 6C | M12-P6C-MWA-xxPV-S-1T2 | M12-P6C-MWA-xxPV-1T2 | Shielded/ | Shielded/ |
M12 Male 1 to 2 Overmolded Plug-xx M-PVC Jacket | 4D | M12-P4D-MWA-xxPV-S-1T2 | M12-P4D-MWA-xxPV-1T2 | Shielded/ | Shielded/ |
*If needing other cable materials please contact our sales.
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |

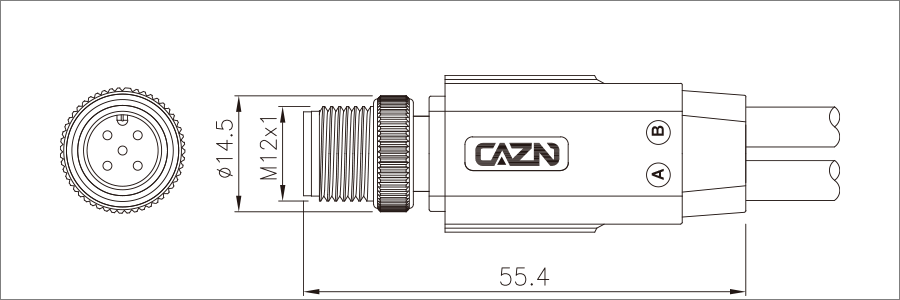

DIMENSION

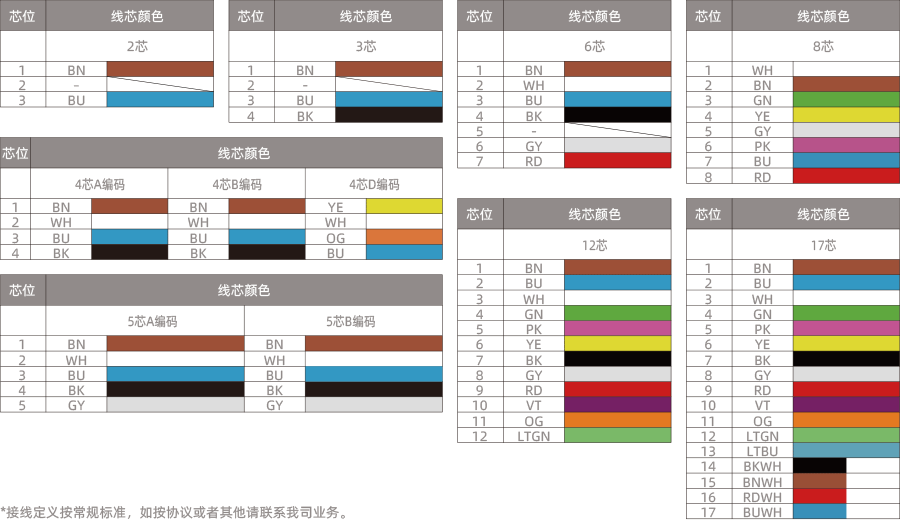

WIRING DEFINITION
