TECHNICAL PARAMETER
Shell material | Brass nickel plating / Zinc alloy nickel / PA+GF |
Insulator material | PA+GF / TPU |
Sealing material | Epoxy resin / Rubber |
Contact material | Brass / Phosphorus copper gold-plated |
Molding material | TPU / PVC |
Insulation impedance | ≥ 100 MΩ |
Contact impedance | ≤ 5 mΩ |
Durability | ≥ 500 Cycles |
Applicable temperature | -25℃ ~ +80℃ |
Waterproof | IP65 / IP67 |
Executive standard | IEC 61076-2-101 |
ELECTRICAL PARAMETERS
Product Name | Pins | Outlet Size-M15x1 | 3D Download | 2D Download |

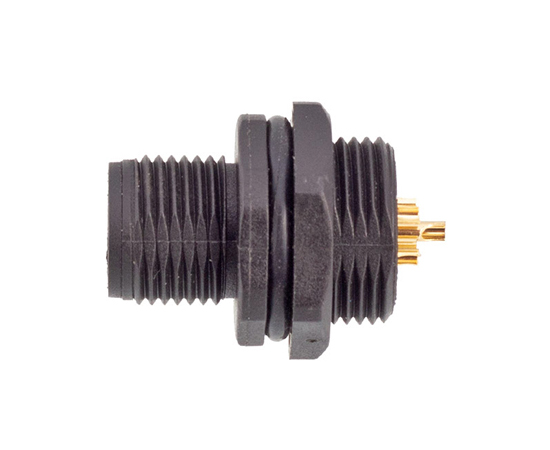

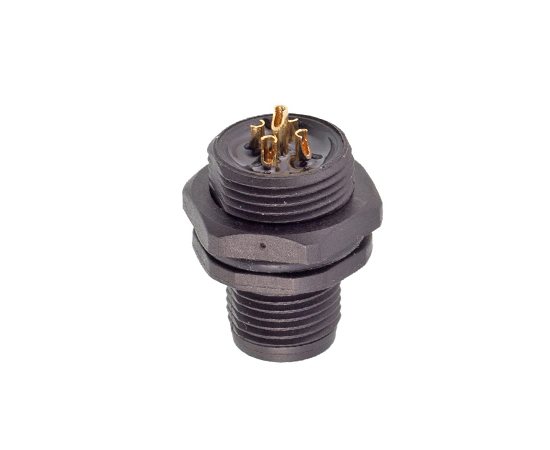

M12 Male Front Mount Socket(Solder, Screw M15*1, Plastic type) | 2A | M12-P2A-PWBM15 | ||
M12 Male Front Mount Socket(Solder, Screw M15*1, Plastic type) | 3A | M12-P3A-PWBM15 | ||
M12 Male Front Mount Socket(Solder, Screw M15*1, Plastic type) | 3C | M12-P3C-PWBM15 | ||
M12 Male Front Mount Socket(Solder, Screw M15*1, Plastic type) | 4A | M12-P4A-PWBM15 | ||
M12 Male Front Mount Socket(Solder, Screw M15*1, Plastic type) | 4D | M12-P4D-PWBM15 | ||
M12 Male Front Mount Socket(Solder, Screw M15*1, Plastic type) | 4C | M12-P4C-PWBM15 | ||
M12 Male Front Mount Socket(Solder, Screw M15*1, Plastic type) | 5A | M12-P5A-PWBM15 | ||
M12 Male Front Mount Socket(Solder, Screw M15*1, Plastic type) | 5B | M12-P5B-PWBM15 | ||
M12 Male Front Mount Socket(Solder, Screw M15*1, Plastic type) | 5C | M12-P5C-PWBM15 | ||
M12 Male Front Mount Socket(Solder, Screw M15*1, Plastic type) | 6A | M12-P6A-PWBM15 | ||
M12 Male Front Mount Socket(Solder, Screw M15*1, Plastic type) | 6C | M12-P6C-PWBM15 | ||
M12 Male Front Mount Socket(Solder, Screw M15*1, Plastic type) | 8A | M12-P8A-PWBM15 | ||
M12 Male Front Mount Socket(Solder, Screw M15*1, Plastic type) | 12A | M12-P12A-PWBM15 | ||
M12 Male Front Mount Socket(Solder, Screw M15*1, Plastic type) | 17A | M12-P17A-PWBM15 |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |
DIMENSION

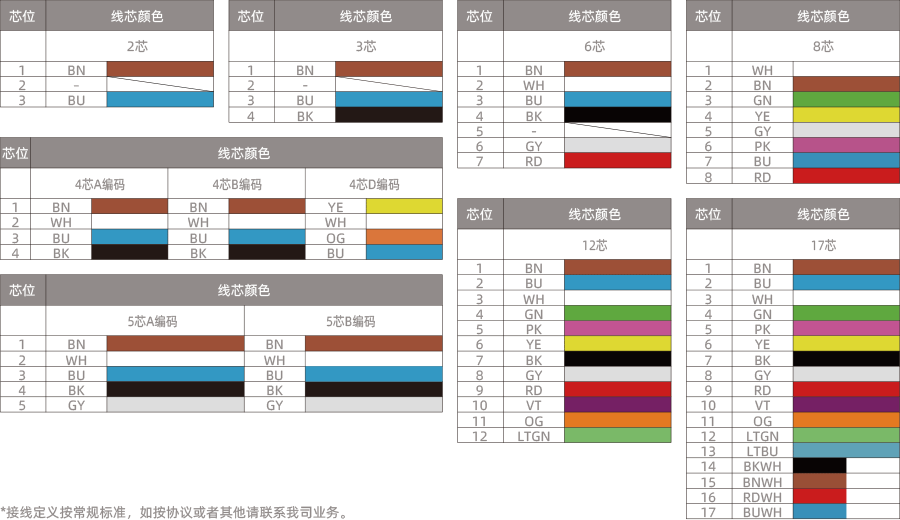

WIRING DEFINITION
