TECHNICAL PARAMETER
Shell material | brass nickel plating/zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | epoxy resin/rubber |
Contact material | brass /phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | ≥ 100 M Ω |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |
ELECTRICAL PARAMETER
Product name | Screw | Pins | Model Name | 3D Download | 2D Download |
M12 Female Front Mount Socket-PCB | M12x1 | 2A | M12-S2A-GPB M12 | ||
M12 Female Front Mount Socket-PCB | M12x1 | 3A | M12-S3A-GPB M12 | ||
M12 Female Front Mount Socket-PCB | M12x1 | 3C | M12-S3C-GPB M12 | ||
M12 Female Front Mount Socket-PCB | M12x1 | 4A | M12-S4A-GPB M12 | ||
M12 Female Front Mount Socket-PCB | M12x1 | 4D | M12-S4D-GPB M12 | ||
M12 Female Front Mount Socket-PCB | M12x1 | 4C | M12-S4C-GPB M12 | ||
M12 Female Front Mount Socket-PCB | M12x1 | 5A | M12-S5A-GPB M12 | ||
M12 Female Front Mount Socket-PCB | M12x1 | 5B | M12-S5B-GPB M12 | ||
M12 Female Front Mount Socket-PCB | M12x1 | 5C | M12-S5C-GPB M12 | ||
M12 Female Front Mount Socket-PCB | M12x1 | 6A | M12-S6A-GPB M12 | ||
M12 Female Front Mount Socket-PCB | M12x1 | 6C | M12-S6C-GPB M12 | ||
M12 Female Front Mount Socket-PCB | M12x1 | 8A | M12-S8A-GPB M12 | ||
M12 Female Front Mount Socket-PCB | M12x1 | 12A | M12-S12A-GPB M12 | ||
M12 Female Front Mount Socket-PCB | M12x1 | 17A | M12-S17A-GPB M12 |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |

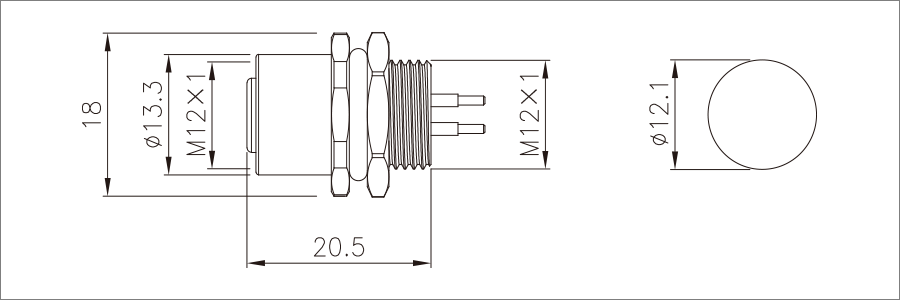

DIMENSION

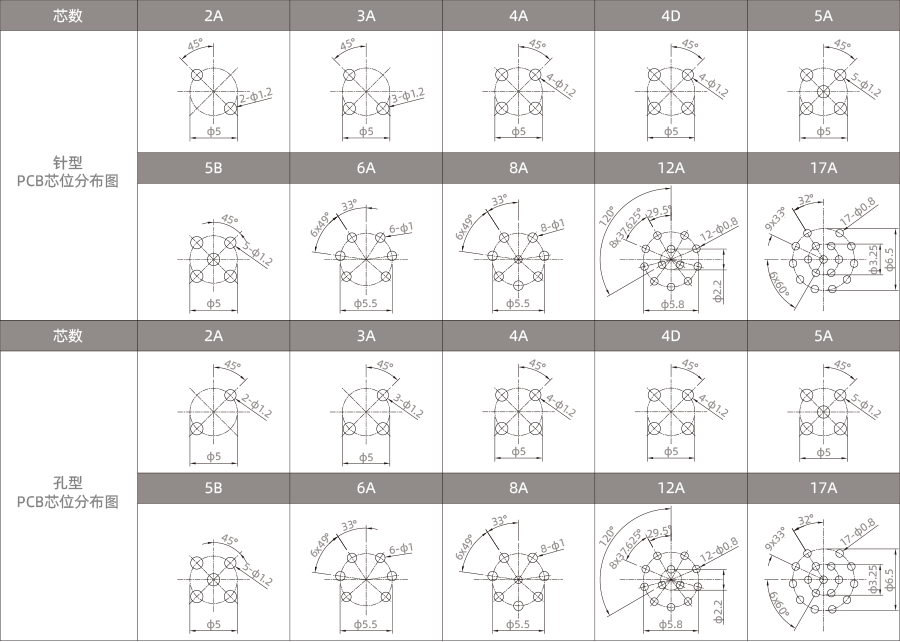

PCB PIN BITMAP

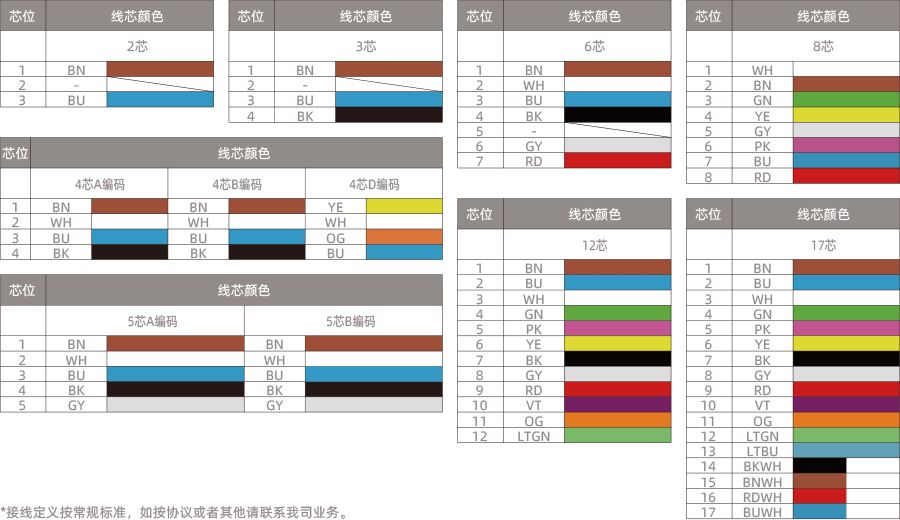

WIRING DEFINITION
