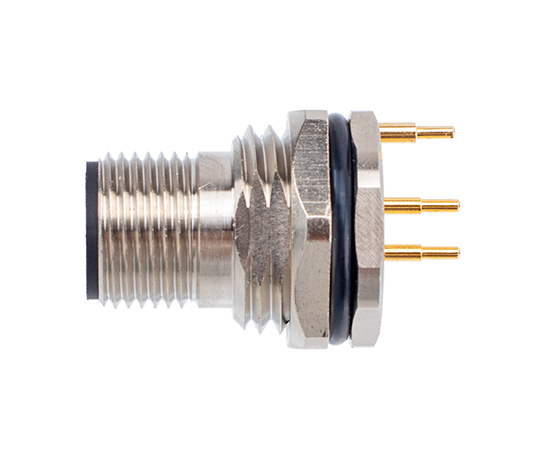

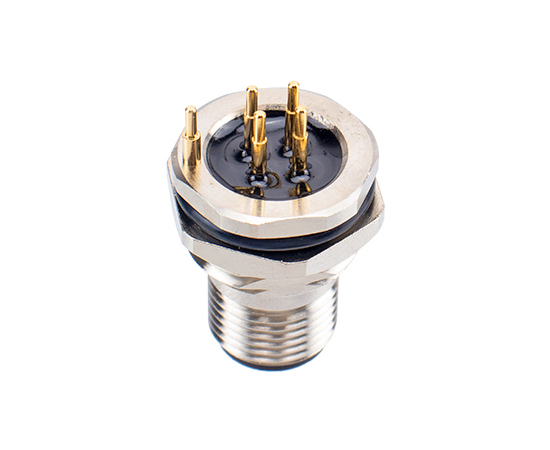

M12 Male Back Mount Socket (PCB, Grounded type)

European standard connector M12 series

Structure type: back mount socket

Pin type: male type

Contacts number: 2,3,4,5,6,8,12,17pins

Connection method: PCB

Shield: Yes

Certification: CE RoHS

Standard: IEC 61076-2-101

PDF Download

Shopping

TECHNICAL PARAMETER

Shell material	Brass nickel plating/Zinc alloy nickel/PA+GF
Insulator material	PA+GF/TPU
Sealing material	Epoxy resin / Rubber
Contact material	Brass / Phosphorus copper gold-plated
Molding material	TPU/PVC
Insulation impedance	≥ 100 MΩ
Contact impedance	≤ 5 mΩ
Durability	≥ 500 Cycles
Applicable temperature	-25℃ ~ +80℃
Waterproof	IP65/IP67
Executive standard	IEC 61076-2-101

ELECTRICAL PARAMETER


Product name	Pins	*Part No.(Screw M161.5)**	Part No.(Screw PG9)	3D Download	2D Download
M12 Male Back Mount Socket (PCB, Grounded type,Big screw)	2A	M12-P2A-GPFM16-JD	M12-P2A-GPFP9-JD	M16/PG9	M16/PG9
M12 Male Back Mount Socket (PCB, Grounded type,Big screw)	3A	M12-P3A-GPFM16-JD	M12-P3A-GPFP9-JD	M16/PG9	M16/PG9
M12 Male Back Mount Socket (PCB, Grounded type,Big screw)	4A	M12-P4A-GPFM16-JD	M12-P4A-GPFP9-JD	M16/PG9	M16/PG9
M12 Male Back Mount Socket (PCB, Grounded type,Big screw)	5A	M12-P5A-GPFM16-JD	M12-P5A-GPFP9-JD	M16/PG9	M16/PG9
M12 Male Back Mount Socket (PCB, Grounded type,Big screw)	6A	M12-P6A-GPFM16-JD	M12-P6A-GPFP9-JD	M16/PG9	M16/PG9
M12 Male Back Mount Socket (PCB, Grounded type,Big screw)	8A	M12-P8A-GPFM16-JD	M12-P8A-GPFP9-JD	M16/PG9	M16/PG9
M12 Male Back Mount Socket (PCB, Grounded type,Big screw)	12A	M12-P12A-GPFM16-JD	M12-P12A-GPFP9-JD	M16/PG9	M16/PG9
M12 Male Back Mount Socket (PCB, Grounded type,Big screw)	17A	M12-P17A-GPFM16-JD	M12-P17A-GPFP9-JD	M16/PG9	M16/PG9
M12 Male Back Mount Socket (PCB, Grounded type,Big screw)	5B	M12-P5B-GPFM16-JD	M12-P5B-GPFP9-JD	M16/PG9	M16/PG9
M12 Male Back Mount Socket (PCB, Grounded type,Big screw)	3C	M12-P3C-GPFM16-JD	M12-P3C-GPFP9-JD	M16/PG9	M16/PG9
M12 Male Back Mount Socket (PCB, Grounded type,Big screw)	4C	M12-P4C-GPFM16-JD	M12-P4C-GPFP9-JD	M16/PG9	M16/PG9
M12 Male Back Mount Socket (PCB, Grounded type,Big screw)	5C	M12-P5C-GPFM16-JD	M12-P5C-GPFP9-JD	M16/PG9	M16/PG9
M12 Male Back Mount Socket (PCB, Grounded type,Big screw)	6C	M12-P6C-GPFM16-JD	M12-P6C-GPFP9-JD	M16/PG9	M16/PG9
M12 Male Back Mount Socket (PCB, Grounded type,Big screw)	4D	M12-P4D-GPFM16-JD	M12-P4D-GPFP9-JD	M16/PG9	M16/PG9
