TECHNICAL PARAMETER
| Shell material | Brass nickel plating/Zinc alloy nickel/PA+GF |
| Insulator material | PA+GF/TPU |
| Sealing material | Epoxy resin / Rubber |
| Contact material | Brass / Phosphorus copper gold-plated |
| Molding material | TPU/PVC |
| Insulation impedance | ≥ 100 MΩ |
| Contact impedance | ≤ 5 mΩ |
| Durability | ≥ 500 Cycles |
| Applicable temperature | -25℃ ~ +80℃ |
| Waterproof | IP65/IP67 |
| Executive standard | IEC 61076-2-101 |
ELECTRICAL PARAMETER
Product name | Cut-Out Size-M12 | 3D Download | 2D Download |

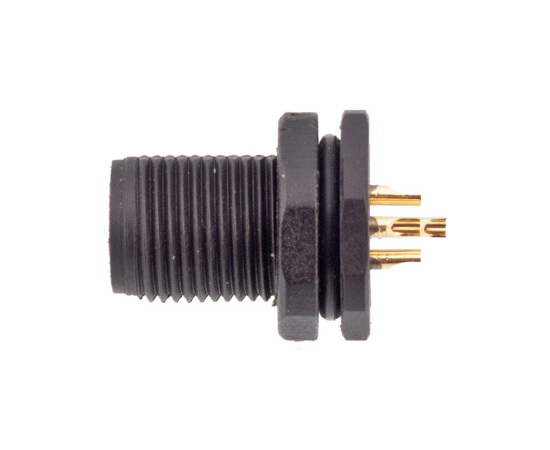

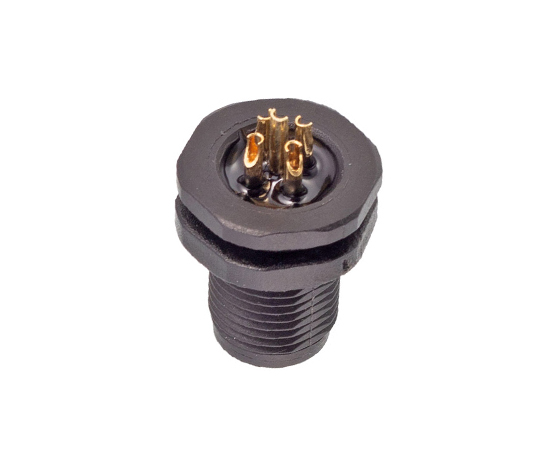

M12 male back mount socket 2A solder screw M12*1 | M12-S2A-GWFM12-xPV | ||
M12 male back mount socket 3A solder screwM12*1 | M12-S3A-GWFM12-xPV | ||
M12 male back mount socket 3C solder screw M12*1 | M12-S3C-GWFM12-xPV | ||
M12 male back mount socket 4A solder screw M12*1 | M12-S4A-GWFM12-xPV | ||
M12 male back mount socket 4D solder screw M12*1 | M12-S2A-GWFM12-xPV | ||
M12 male back mount socket 4C solder screw M12*1 | M12-S2A-GWFM12-xPV | ||
M12 male back mount socket 5A solder screwM12*1 | M12-S5A-GWFM12-xPV | ||
M12 male back mount socket 5B solder screw M12*1 | M12-S2A-GWFM12-xPV | ||
M12 male back mount socket 5C solder screw M12*1 | M12-S2A-GWFM12-xPV | ||
M12 male back mount socket 6A solder screw M12*1 | M12-S2A-GWFM12-xPV | ||
M12 male back mount socket 6C solder screw M12*1 | M12-S2A-GWFM12-xPV | ||
M12 male back mount socket 8A solder screw M12*1 | M12-S2A-GWFM12-xPV | ||
M12 male back mount socket 12A solder screw M12*1 | M12-S2A-GWFM12-xPV | ||
M12 male back mount socket 17A solder screw M12*1 | M12-S17A-GWFM12-xPV |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |
DIMENSION
WIEING DEFINITION
