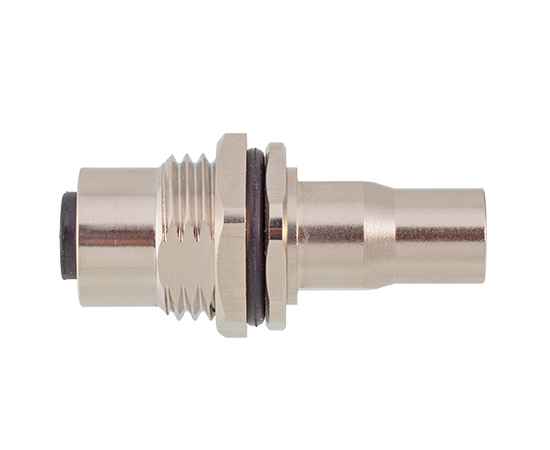

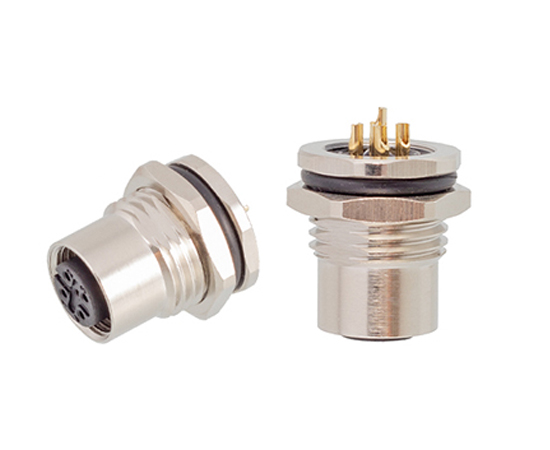

Technical Parameter
Shell material | brass nickel plating/zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | epoxy resin/rubber |
Contact material | brass /phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | ≥ 100 M Ω |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |
Electrical parameter
Product name | Cut-Out Size-M16 | Cut-Out Size-PG9 | 3D Download | 2D Download |
M12 female back mount socket 2A solder screw M16*1.5/PG9 Shielded | M12-S2A-GWFM16-xPV-PBG | M12-S2A-GWFPG9-xPV-PBG | ||
M12 female back mount socket 3A solder screw M16*1.5/PG9 Shielded | M12-S3A-GWFM16-xPV-PBG | M12-S3A-GWFPG9-xPV-PBG | ||
M12 female back mount socket 3C solder screw M16*1.5/PG9 Shielded | M12-S3C-GWFM16-xPV-PBG | M12-S3C-GWFPG9-xPV-PBG | ||
M12 female back mount socket 4A solder screw M16*1.5/PG9 Shielded | M12-S4A-GWFM16-xPV-PBG | M12-S4A-GWFPG9-xPV-PBG | ||
M12 female back mount socket 4D solder screw M16*1.5/PG9 Shielded | M12-S2A-GWFM16-xPV-PBG | M12-S2A-GWFPG9-xPV-PBG | ||
M12 female back mount socket 4C solder screw M16*1.5/PG9 Shielded | M12-S2A-GWFM16-xPV-PBG | M12-S2A-GWFPG9-xPV-PBG | ||
M12 female back mount socket 5A solder screw M16*1.5/PG9 Shielded | M12-S5A-GWFM16-xPV-PBG | M12-S5A-GWFPG9-xPV-PBG | ||
M12 female back mount socket 5B solder screw M16*1.5/PG9 Shielded | M12-S2A-GWFM16-xPV-PBG | M12-S2A-GWFPG9-xPV-PBG | ||
M12 female back mount socket 5C solder screw M16*1.5/PG9 Shielded | M12-S2A-GWFM16-xPV-PBG | M12-S2A-GWFPG9-xPV-PBG | ||
M12 female back mount socket 6A solder screw M16*1.5/PG9 Shielded | M12-S2A-GWFM16-xPV-PBG | M12-S2A-GWFPG9-xPV-PBG | ||
M12 female back mount socket 6C solder screw M16*1.5/PG9 Shielded | M12-S2A-GWFM16-xPV-PBG | M12-S2A-GWFPG9-xPV-PBG | ||
M12 female back mount socket 8A solder screw M16*1.5/PG9 Shielded | M12-S2A-GWFM16-xPV-PBG | M12-S2A-GWFPG9-xPV-PBG | ||
M12 female back mount socket 12A solder screw M16*1.5/PG9 Shielded | M12-S2A-GWFM16-xPV-PBG | M12-S2A-GWFPG9-xPV-PBG | ||
M12 female back mount socket 17A solder screw M16*1.5/PG9 Shielded | M12-S17A-GWFM16-xPV-PBG | M12-S17A-GWFPG9-xPV-PBG |
Dimension
Wiring Definition
