Technical Parameter
Shell material | brass nickel plating/zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | epoxy resin/rubber |
Contact material | brass /phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | ≥ 100 M Ω |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |
Electrical parameter
Product name | Pins | Product No.-M16*1.5 | Product No.-PG9 | 3D Download | 2D Download |

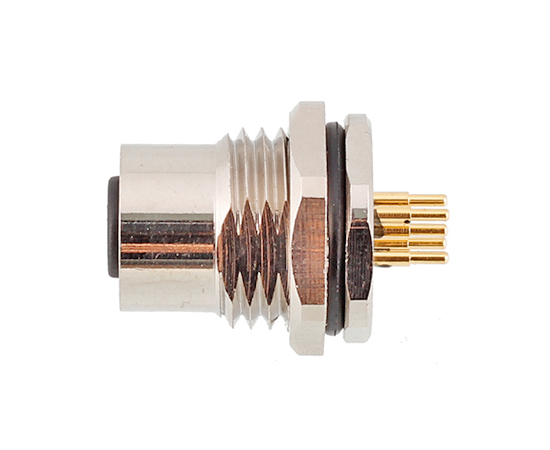

M12 Female Back Mount Socket (PCB,Big screw) | 2A | M12-S2A-GPFM16 | M12-S2A-GPFP9 | ||
M12 Female Back Mount Socket (PCB,Big screw) | 3A | M12-S3A-GPFM16 | M12-S3A-GPFP9 | ||
M12 Female Back Mount Socket (PCB,Big screw) | 4A | M12-S4A-GPFM16 | M12-S4A-GPFP9 | ||
M12 Female Back Mount Socket (PCB,Big screw) | 5A | M12-S5A-GPFM16 | M12-S5A-GPFP9 | ||
M12 Female Back Mount Socket (PCB,Big screw) | 6A | M12-S6A-GPFM16 | M12-S6A-GPFP9 | ||
M12 Female Back Mount Socket (PCB,Big screw) | 8A | M12-S8A-GPFM16 | M12-S8A-GPFP9 | ||
M12 Female Back Mount Socket (PCB,Big screw) | 12A | M12-S12A-GPFM16 | M12-S12A-GPFP9 | ||
M12 Female Back Mount Socket (PCB,Big screw) | 17A | M12-S17A-GPFM16 | M12-S17A-GPFP9 | ||
M12 Female Back Mount Socket (PCB,Big screw) | 5B | M12-S5B-GPFM16 | M12-S5B-GPFP9 | ||
M12 Female Back Mount Socket (PCB,Big screw) | 3C | M12-S3C-GPFM16 | M12-S3C-GPFP9 | ||
M12 Female Back Mount Socket (PCB,Big screw) | 4C | M12-S4C-GPFM16 | M12-S4C-GPFP9 | ||
M12 Female Back Mount Socket (PCB,Big screw) | 5C | M12-S5C-GPFM16 | M12-S5C-GPFP9 | ||
M12 Female Back Mount Socket (PCB,Big screw) | 6C | M12-S6C-GPFM16 | M12-S6C-GPFP9 | ||
M12 Female Back Mount Socket (PCB,Big screw) | 4D | M12-S4D-GPFM16 | M12-S4D-GPFP9 |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |
Dimension
PCB pin bitmap
Wiring Definition
