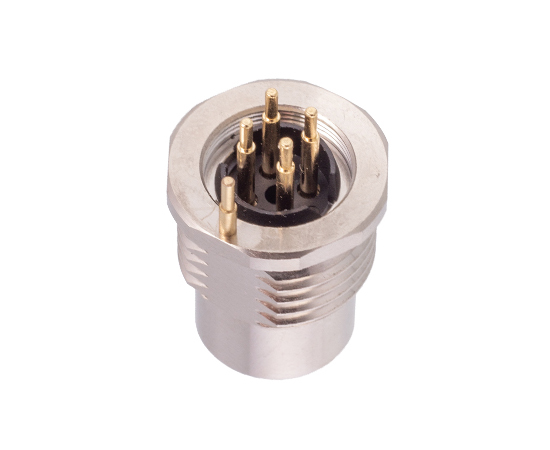

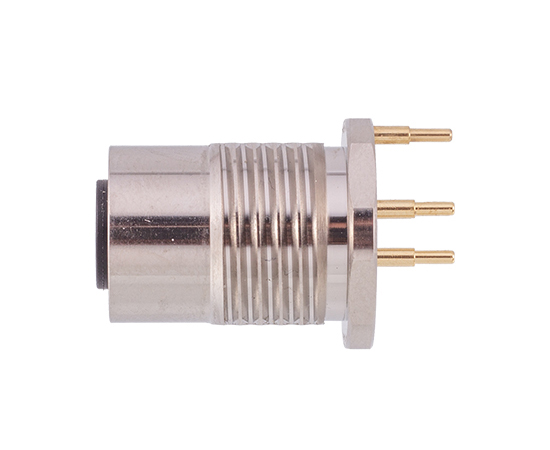

M12 Female Back Mount Socket (PCB, Grounded type)

European standard connector M12 series

Structure type: back mount socket

Pin type: female type

Contacts number: 2,3,4,5,6,8,12,17pins

Connection method: PCB

Shield: Yes

Certification: CE RoHS

Standard: IEC 61076-2-101

Shopping

Technical Parameter

Shell material	brass nickel plating/zinc alloy nickel/PA+GF
Insulator material	PA+GF/TPU
Sealing material	epoxy resin/rubber
Contact material	brass /phosphorus copper gold-plated
Molding material	TPU/PVC
Insulation impedance	≥ 100 M Ω
Contact impedance	≤ 5 m Ω
Durability	≥ 500 cycles
Applicable temperature	-25 ℃~+80 ℃
Waterproof	IP65/IP67
Executive standard	IEC 61076-2-101

Electrical parameter


Product name	Pins	*Part No.(Screw M161.5)**	Part No.(Screw PG9)	3D Download	2D Download
M12 Female Back Mount Socket (PCB, Grounded type)	2A	M12-S2A-GPFM16-JD	M12-S2A-GPFP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	3A	M12-S3A-GPFM16-JD	M12-S3A-GPFP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	4A	M12-S4A-GPFM16-JD	M12-S4A-GPFP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	5A	M12-S5A-GPFM16-JD	M12-S5A-GPFP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	6A	M12-S6A-GPFM16-JD	M12-S6A-GPFP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	8A	M12-S8A-GPFM16-JD	M12-S8A-GPFP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	12A	M12-S12A-GPFM16-JD	M12-S12A-GPFP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	17A	M12-S17A-GPFM16-JD	M12-S17A-GPFP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	5B	M12-S5B-GPFM16-JD	M12-S5B-GPFP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	3C	M12-S3C-GPFM16-JD	M12-S3C-GPFP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	4C	M12-S4C-GPFM16-JD	M12-S4C-GPFP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	5C	M12-S5C-GPFM16-JD	M12-S5C-GPFP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	6C	M12-S6C-GPFM16-JD	M12-S6C-GPFP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	4D	M12-S4D-GPFM16-JD	M12-S4D-GPFP9-JD	M16/PG9	M16/PG9
