Technical Parameter
Shell material | brass nickel plating/zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | epoxy resin/rubber |
Contact material | brass /phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | ≥ 100 M Ω |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |
Electrical parameter
Product name | Hole screw size-14*14 | 3D Download | 2D Download |

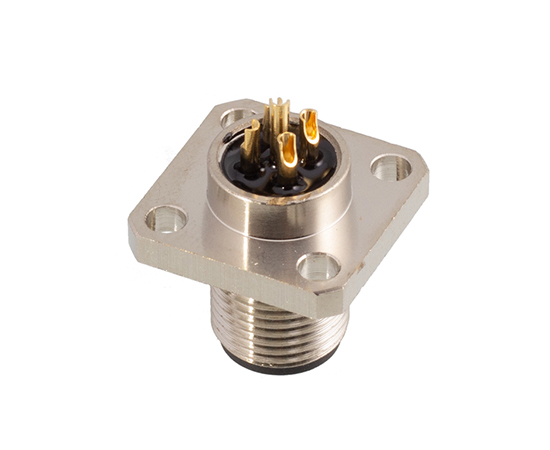

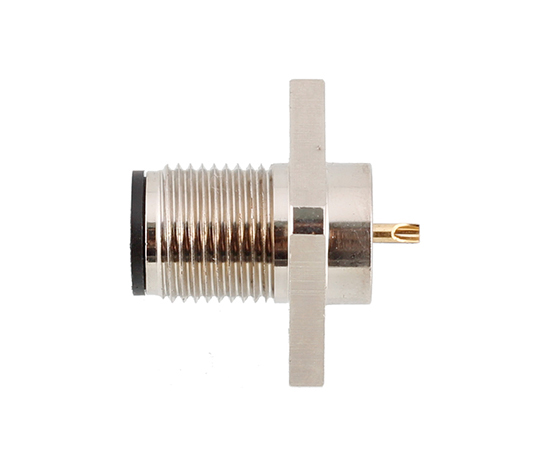

M12 square flange male socket 2A solder 14*14 | M12-P2A-GWH | ||
M12 square flange male socket 3A solder 14*14 | M12-P3A-GWH | ||
M12 square flange male socket 3C solder 14*14 | M12-P3C-GWH | ||
M12 square flange male socket 4A solder 14*14 | M12-P4A-GWH | ||
M12 square flange male socket 4D solder 14*14 | M12-P2A-GWH | ||
M12 square flange male socket 4C solder 14*14 | M12-P2A-GWH | ||
M12 square flange male socket 5A solder 14*14 | M12-P5A-GWH | ||
M12 square flange male socket 5B solder 14*14 | M12-P2A-GWH | ||
M12 square flange male socket 5C solder 14*14 | M12-P2A-GWH | ||
M12 square flange male socket 6A solder 14*14 | M12-P2A-GWH | ||
M12 square flange male socket 6C solder 14*14 | M12-P2A-GWH | ||
M12 square flange male socket 8A solder 14*14 | M12-P2A-GWH | ||
M12 square flange male socket 12A solder 14*14 | M12-P2A-GWH | ||
M12 square flange male socket17A solder 14*14 | M12-P17A-GWH |
Dimension
Wiring Definition
