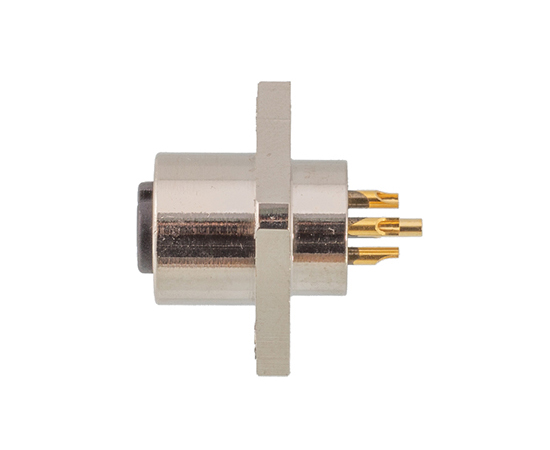

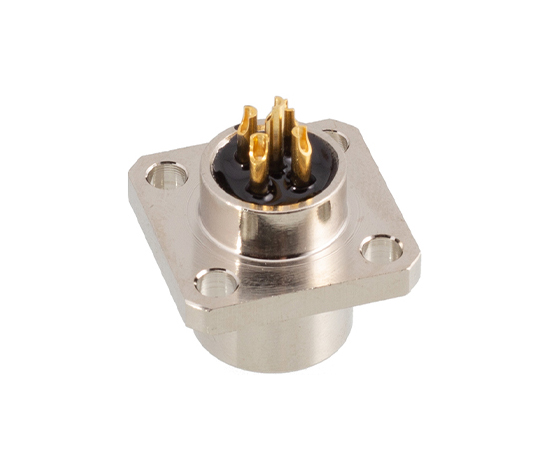

Technical Parameter
Shell material | brass nickel plating/zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | epoxy resin/rubber |
Contact material | brass /phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | ≥ 100 M Ω |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |
Electrical parameter
Product name | Outlet size-M12 | 3D Download | 2D Download |
M12 square flange female socket 2A solder | M12-S2A-GWH-xPV | ||
M12 square flange female socket 3A solder | M12-S3A-GWH-xPV | ||
M12 square flange female socket 3C solder | M12-S3C-GWH-xPV | ||
M12 square flange female socket 4A solder | M12-S4A-GWH-xPV | ||
M12 square flange female socket 4D solder | M12-S2A-GWH-xPV | ||
M12 square flange female socket 4C solder | M12-S2A-GWH-xPV | ||
M12 square flange female socket 5A solder | M12-S5A-GWH-xPV | ||
M12 square flange female socket 5B solder | M12-S2A-GWH-xPV | ||
M12 square flange female socket 5C solder | M12-S2A-GWH-xPV | ||
M12 square flange female socket 6A solder | M12-S2A-GWH-xPV | ||
M12 square flange female socket 6C solder | M12-S2A-GWH-xPV | ||
M12 square flange female socket 8A solder | M12-S2A-GWH-xPV | ||
M12 square flange female socket 12A solder | M12-S2A-GWH-xPV | ||
M12 square flange female socket17A solder | M12-S17A-GWH-xPV |
Dimension
Wiring Definition
