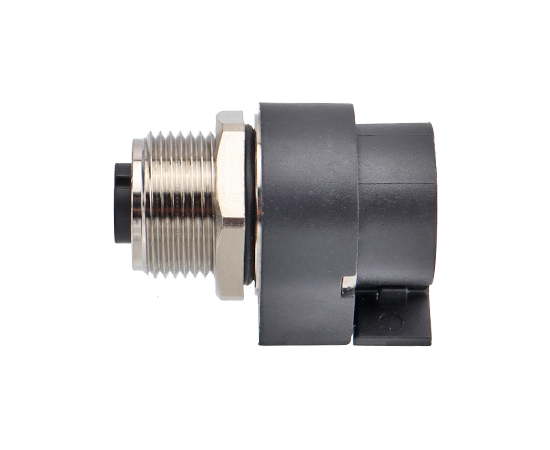

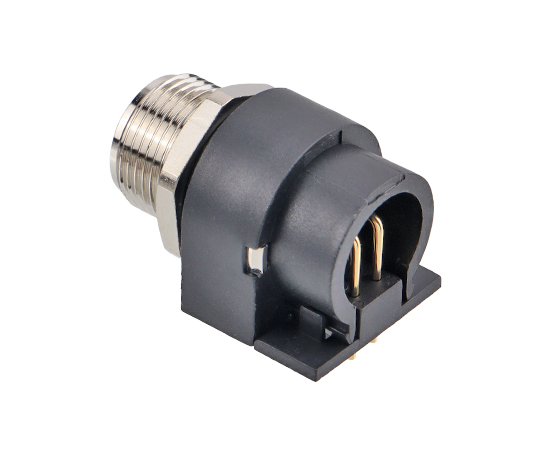

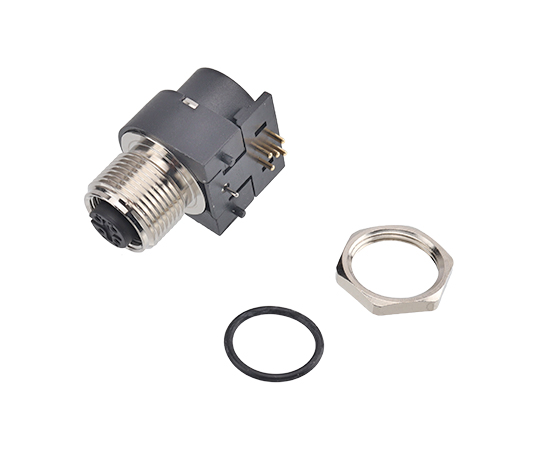

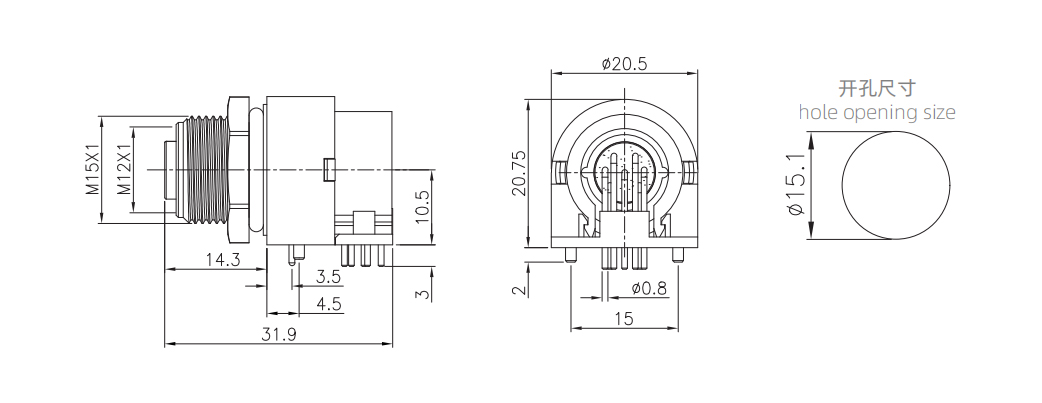

M12 Curved Hole Socket (PCB, Screw M15*1, Big volume)

European standard connector M12 series

Structure type: back mount socket

Pin type: female type

Contacts number: 2,3,4,5,6,8,12,17 pins

Connection method: PCB

Shield: Yes

Certification: CE,RoHS,UL,

Standard: IEC 61076-2-101

Shopping

Technical Parameter

Shell material	brass nickel plating/zinc alloy nickel/PA+GF
Insulator material	PA+GF/TPU
Sealing material	epoxy resin/rubber
Contact material	brass /phosphorus copper gold-plated
Molding material	TPU/PVC
Insulation impedance	≥ 100 M Ω
Contact impedance	≤ 5 m Ω
Durability	≥ 500 cycles
Applicable temperature	-25 ℃~+80 ℃
Waterproof	IP65/IP67
Executive standard	IEC 61076-2-101

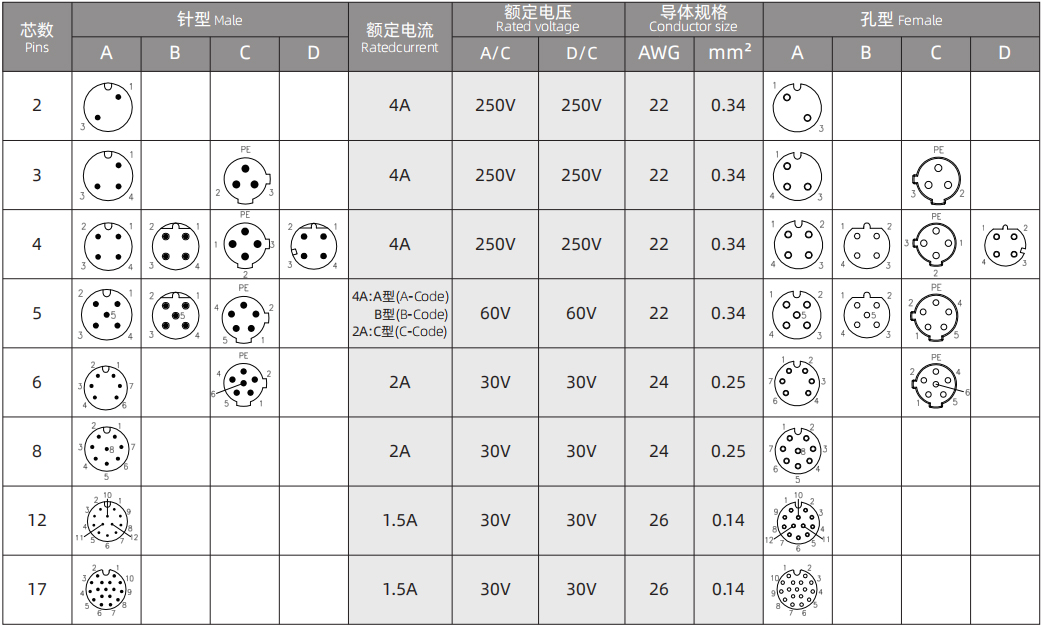

Electrical parameter


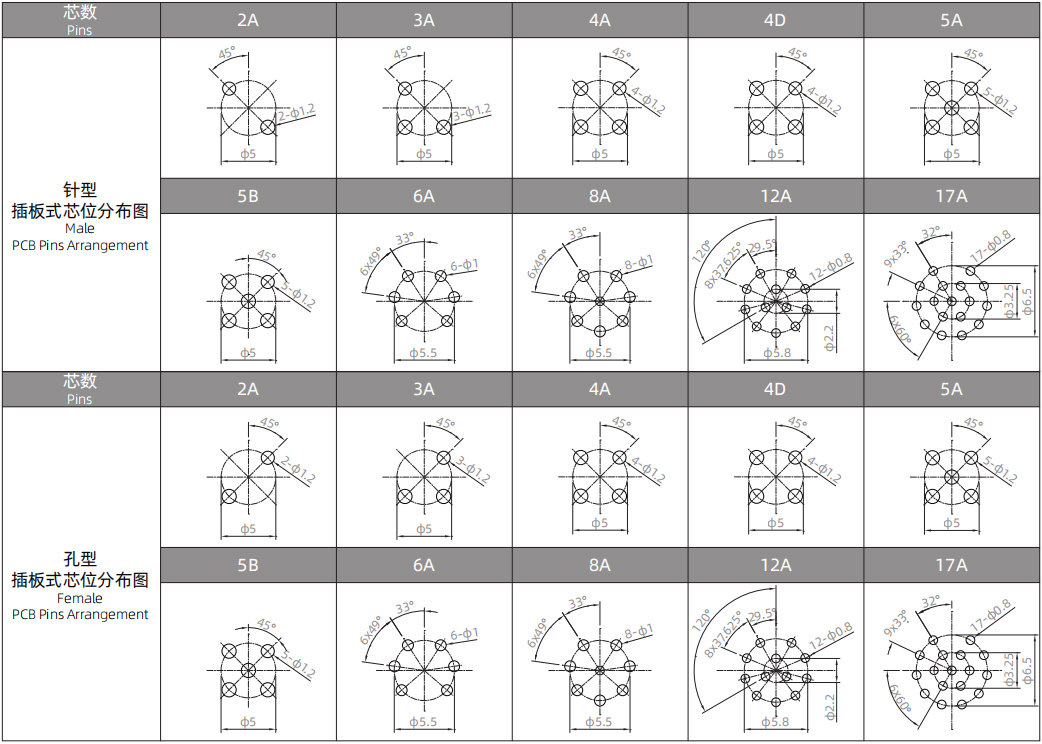

Product Name	Pins	Model	3D Download	2D Download
M12 Curved Hole Socket (PCB, Screw M15*1, Big volume)	2A	M12-S2A-GPL M15-BS
M12 Curved Hole Socket (PCB, Screw M15*1, Big volume)	3A	M12-S3A-GPL M15-BS
M12 Curved Hole Socket (PCB, Screw M15*1, Big volume)	4A	M12-S4A-GPL M15-BS
M12 Curved Hole Socket (PCB, Screw M15*1, Big volume)	5A	M12-S5A-GPL M15-BS
M12 Curved Hole Socket (PCB, Screw M15*1, Big volume)	6A	M12-S6A-GPL M15-BS
M12 Curved Hole Socket (PCB, Screw M15*1, Big volume)	8A	M12-S8A-GPL M15-BS
M12 Curved Hole Socket (PCB, Screw M15*1, Big volume)	12A	M12-S12A-GPL M15-BS
M12 Curved Hole Socket (PCB, Screw M15*1, Big volume)	17A	M12-S17A-GPL M15-BS
M12 Curved Hole Socket (PCB, Screw M15*1, Big volume)	5B	M12-S5B-GPL M15-BS
M12 Curved Hole Socket (PCB, Screw M15*1, Big volume)	4D	M12-S4D-GPL M15-BS
