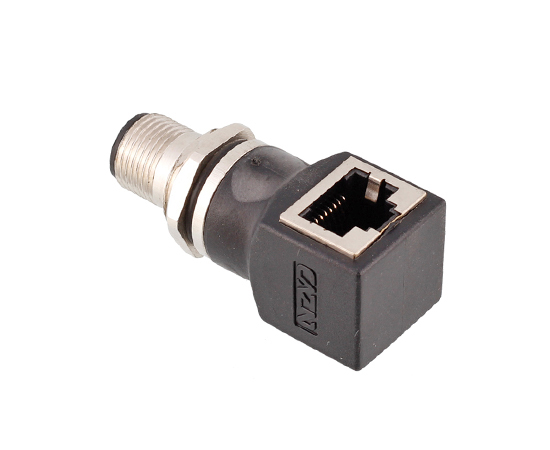

M12 Angled Male to RJ45 Adapter
Technical Parameter
Shell material | brass nickel plating/zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | epoxy resin/rubber |
Contact material | brass /phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | ≥ 100 M Ω |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |

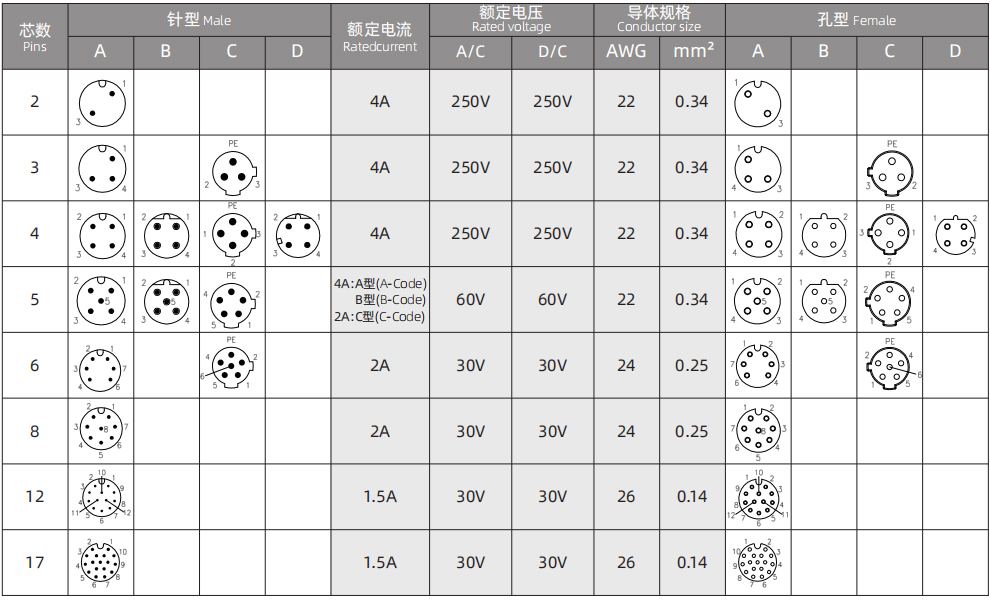

Electrical parameter
Product Name | Pins | Outlet Size-M12x1 | 3D Download | 2D Download |
M12 Angled Male to RJ45 Adapter | 4A | M12-P4A/RJ45-D-F8 | ||
M12 Angled Male to RJ45 Adapter | 8A | M12-P4A/RJ45-D-F8 | ||
M12 Angled Male to RJ45 Adapter | 4D | M12-P4A/RJ45-D-F8 |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |
Dimension
Wiring Definition
