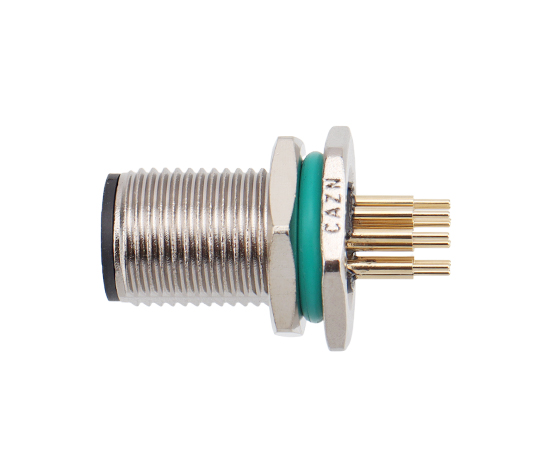

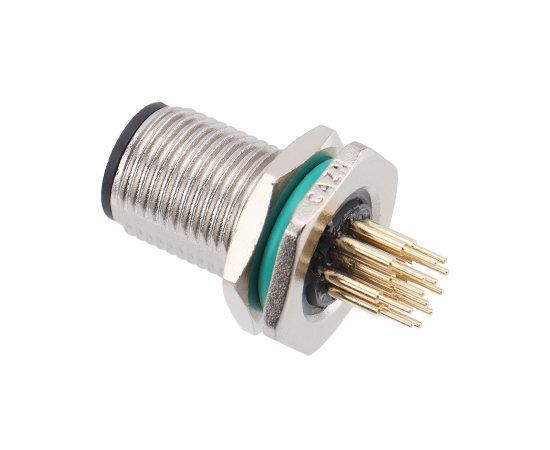

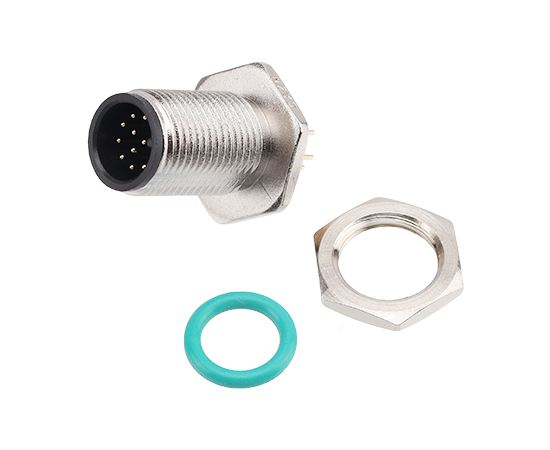

TECHNICAL PARAMETER
Shell material | Brass/Zinc alloy nickel plated |
Insulator material | PA+GF / TPU |
Sealing material | Fluoro rubber,Green |
Contact material | Brass ， gold-plated |
Molding material | TPU / PVC |
Insulation impedance | ≥ 100 MΩ |
Contact impedance | ≤ 5 mΩ |
Durability | ≥ 500 Cycles |
Applicable temperature | -40℃ ~ +80℃ |
Waterproof | IP67 |
Executive standard | IEC 61076-2-101 |
ELECTRICAL PARAMETER
Product Name | Pins | Outlet Size-M12x1 | 3D Download | 2D Download |
M12 Male Back Mount Socket (PCB, Screw M12*1, Zinc alloy) | 2A | M12-P2A-GPFM12-ZA | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Zinc alloy) | 3A | M12-P3A-GPFM12-ZA | ||
| M12 Male Back Mount Socket (PCB, Screw M12*1, Zinc alloy) | 3C | M12-P3C-GPFM12-ZA | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Zinc alloy) | 4A | M12-P4A-GPFM12-ZA | ||
| M12 Male Back Mount Socket (PCB, Screw M12*1, Zinc alloy) | 4C | M12-P4C-GPFM12-ZA | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Zinc alloy) | 4D | M12-P4D-GPFM12-ZA | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Zinc alloy) | 5A | M12-P5A-GPFM12-ZA | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Zinc alloy) | 5B | M12-P5B-GPFM12-ZA | ||
| M12 Male Back Mount Socket (PCB, Screw M12*1, Zinc alloy) | 5C | M12-P5C-GPFM12-ZA | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Zinc alloy) | 5D | M12-P5D-GPFM12-ZA | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Zinc alloy) | 6A | M12-P6A-GPFM12-ZA | ||
| M12 Male Back Mount Socket (PCB, Screw M12*1, Zinc alloy) | 6C | M12-P6C-GPFM12-ZA | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Zinc alloy) | 8A | M12-P8A-GPFM12-ZA | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Zinc alloy) | 12A | M12-P12A-GPFM12-ZA | ||
M12 Male Back Mount Socket (PCB, Screw M12*1, Zinc alloy) | 17A | M12-P17A-GPFM12-ZA |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |
