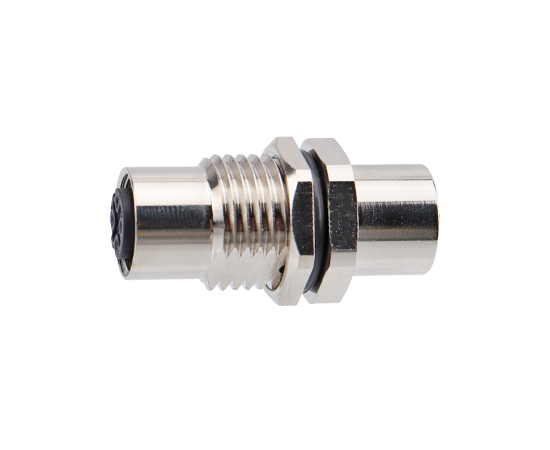

M12 I-Type Adapter (M12-M12, SS, Metal Style)

European standard connector M12 series

Structure type: Adapter

Pin type: I-Type

Contacts number: 2,3,4,5,6,8,12pins

Shield: No

Certification: CE,RoHS,UL,

Standard: IEC 61076-2-101

Shopping

Technical Parameter

Shell material	brass nickel plating/zinc alloy nickel/PA+GF
Insulator material	PA+GF/TPU
Sealing material	epoxy resin/rubber
Contact material	brass /phosphorus copper gold-plated
Molding material	TPU/PVC
Insulation impedance	≥ 100 M Ω
Contact impedance	≤ 5 m Ω
Durability	≥ 500 cycles
Applicable temperature	-25 ℃~+80 ℃
Waterproof	IP65/IP67
Executive standard	IEC 61076-2-101

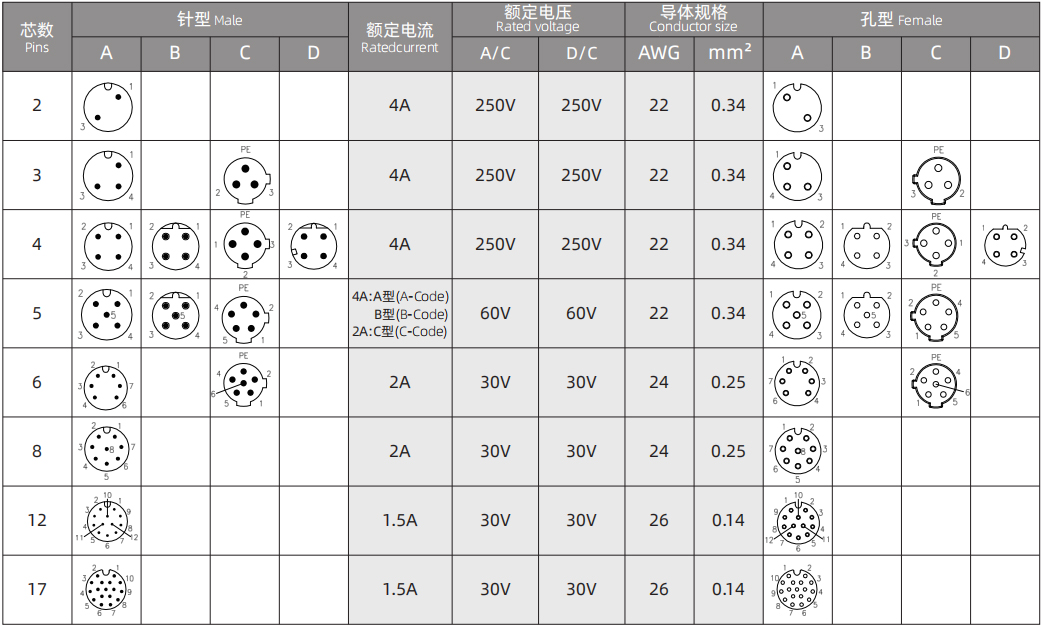

Electrical paramete


Product name	Models	3D Download	2D Download
M12 I-Type Adapter (M12-M12, SS, Metal Style)	M12 - I - S 2A / S 2A- GA
M12 I-Type Adapter (M12-M12, SS, Metal Style)	M12 - I - S 3A / S 3A - GA
M12 I-Type Adapter (M12-M12, SS, Metal Style)	M12 - I - S 4A / S 4A - GA
M12 I-Type Adapter (M12-M12, SS, Metal Style)	M12 - I - S 5A / S 5A - GA
M12 I-Type Adapter (M12-M12, SS, Metal Style)	M12 - I - S 6A / S 6A - GA
M12 I-Type Adapter (M12-M12, SS, Metal Style)	M12 - I - S 8A / S 8A - GA
M12 I-Type Adapter (M12-M12, SS, Metal Style)	M12 - I - S 12A / S 12A - GA
M12 I-Type Adapter (M12-M12, SS, Metal Style)	M12 - I - S 5B / S 5B - GA
M12 I-Type Adapter (M12-M12, SS, Metal Style)	M12 - I - S 3C / S 3C - GA
M12 I-Type Adapter (M12-M12, SS, Metal Style)	M12 - I - S 4C / S 4C - GA
M12 I-Type Adapter (M12-M12, SS, Metal Style)	M12 - I - S 5C / S 5C - GA
M12 I-Type Adapter (M12-M12, SS, Metal Style)	M12 - I - S 6C / S 6C - GA
M12 I-Type Adapter (M12-M12, SS, Metal Style)	M12 - I - S 4D / S 4D - GA
