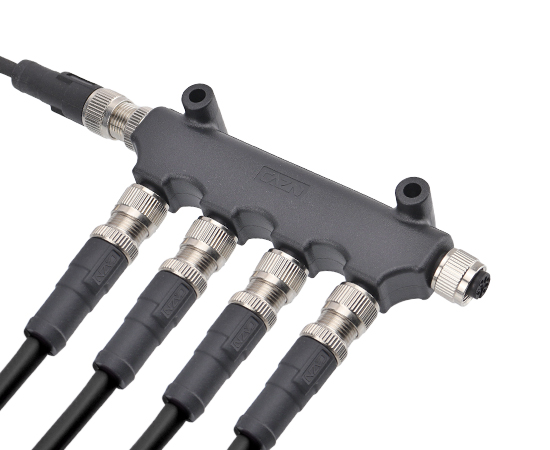

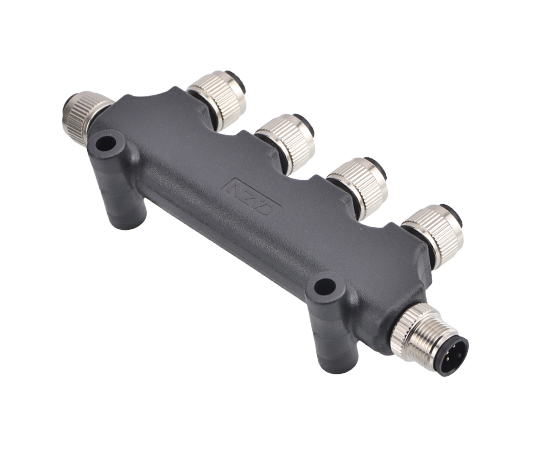

M12 T-type adapter PSSSSS type plastic
Technical Parameter
Shell material | brass nickel plating/zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | epoxy resin/rubber |
Contact material | brass /phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | ≥ 100 M Ω |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |

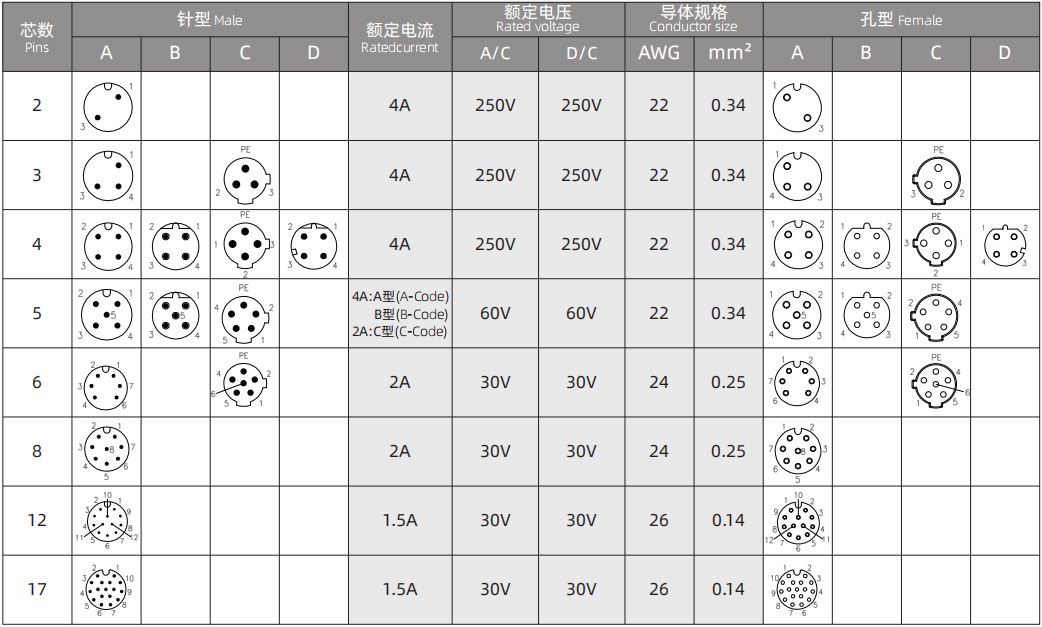

Electrical paramete
| Product name | Models | 3D Download | 2D Download |
| M12 T-Type Adapter (PSSSSS) | M12 - T - P 2A / S 2A x5 | ||
| M12 T-Type Adapter (PSSSSS) | M12 - T - P 3A / S 3A x5 | ||
| M12 T-Type Adapter (PSSSSS) | M12 - T - P 4A / S 4A x5 | ||
| M12 T-Type Adapter (PSSSSS) | M12 - T - P 4D / S 4D x5 | ||
| M12 T-Type Adapter (PSSSSS) | M12 - T - P 5A / S 5A x5 | ||
| M12 T-Type Adapter (PSSSSS) | M12 - T - P 5B / S 5B x5 | ||
| M12 T-Type Adapter (PSSSSS) | M12 - T - P 6A / S 6A x5 | ||
| M12 T-Type Adapter (PSSSSS) | M12 - T - P 8A / S 8A x5 |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |
Dimension

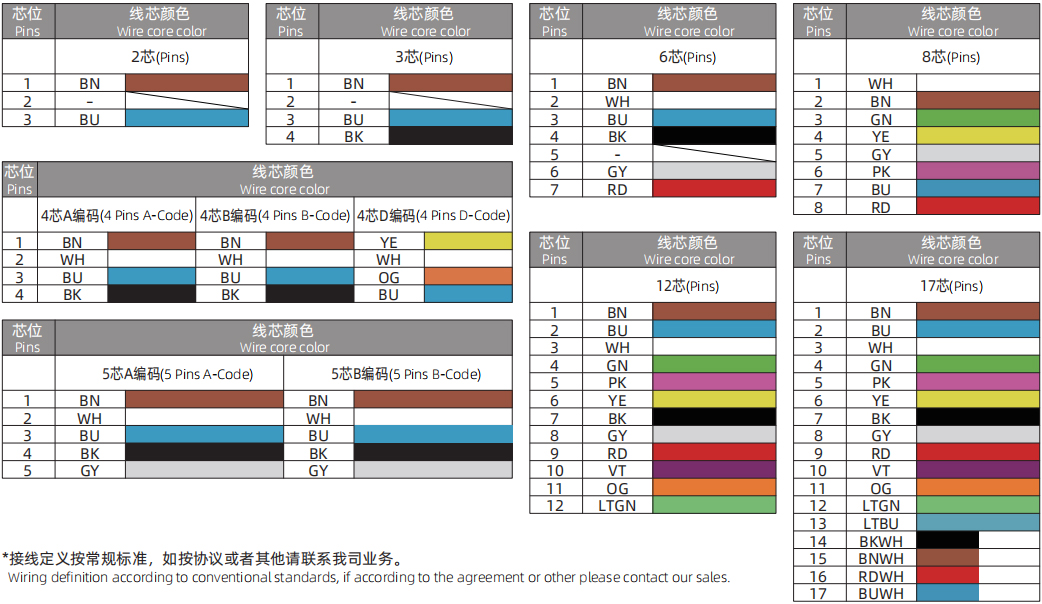

Wiring Definition
