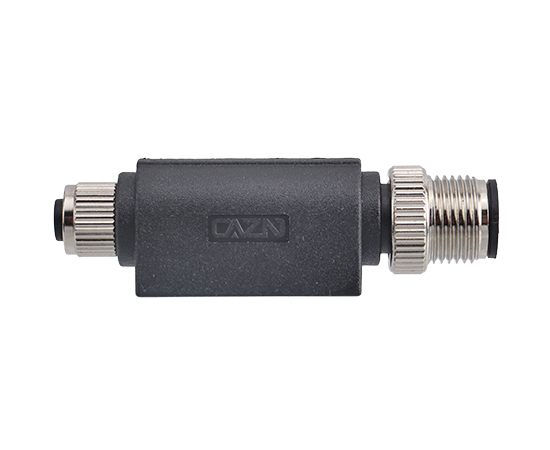

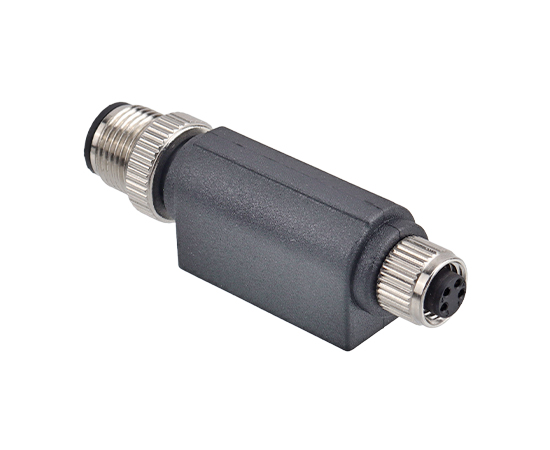

M12 I-Type Adapter (M12-M8, PS, Plastic style)

European standard connector M12 series

Structure type: Adapter

Pin type: I-Type

Contacts number: 2,3,4,5,6,8,12 pins

Shield: No

Certification: CE,RoHS,UL,

Standard: IEC 61076-2-101

Shopping

Technical Parameter

Shell material	brass nickel plating/zinc alloy nickel/PA+GF
Insulator material	PA+GF/TPU
Sealing material	epoxy resin/rubber
Contact material	brass /phosphorus copper gold-plated
Molding material	TPU/PVC
Insulation impedance	≥ 100 M Ω
Contact impedance	≤ 5 m Ω
Durability	≥ 500 cycles
Applicable temperature	-25 ℃~+80 ℃
Waterproof	IP65/IP67
Executive standard	IEC 61076-2-101

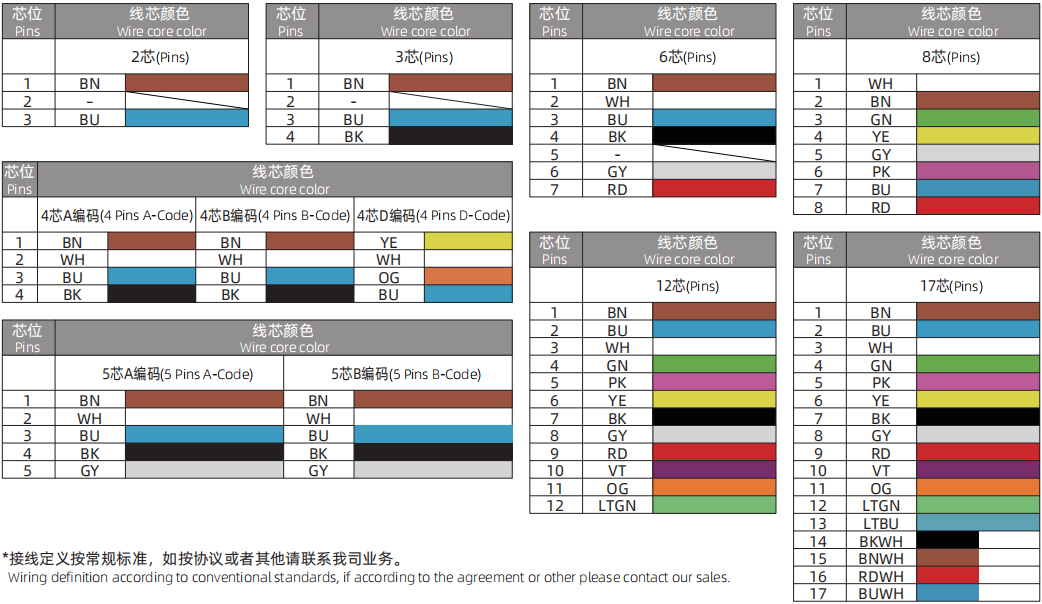

Electrical paramete

正在上传...

Product name	Models	3D Download	2D Download
M12 I-Type Adapter (M12-M8, PS, Plastic style)	M12 - I - P 2A / M8 - S 2A
M12 I-Type Adapter (M12-M8, PS, Plastic style)	M12 - I - P 3A / M8 - S 3A
M12 I-Type Adapter (M12-M8, PS, Plastic style)	M12 - I - P 4A / M8 - S 4A
M12 I-Type Adapter (M12-M8, PS, Plastic style)	M12 - I - P 5A / M8 - S 5A
M12 I-Type Adapter (M12-M8, PS, Plastic style)	M12 - I - P 6A / M8 - S 6A
M12 I-Type Adapter (M12-M8, PS, Plastic style)	M12 - I - P 8A / M8 - S 8A
M12 I-Type Adapter (M12-M8, PS, Plastic style)	M12 - I - P 12A / M8 - S 12A
M12 I-Type Adapter (M12-M8, PS, Plastic style)	M12 - I - P 5B / M8 - S 5B
M12 I-Type Adapter (M12-M8, PS, Plastic style)	M12 - I - P 4D / M8 - S 4D
