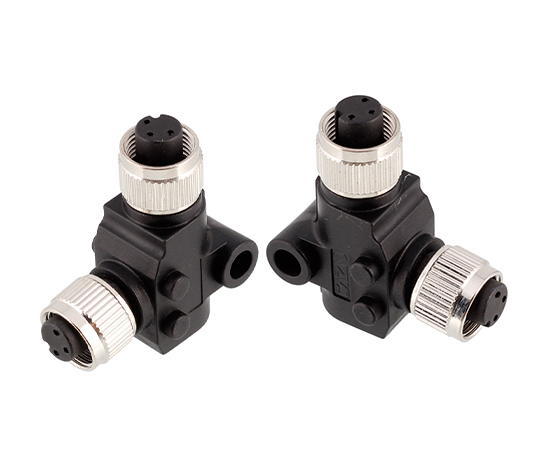

M12 L-Type Adapter (SS)
Technical Parameter
Shell material | brass nickel plating/zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | epoxy resin/rubber |
Contact material | brass /phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | ≥ 100 M Ω |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |

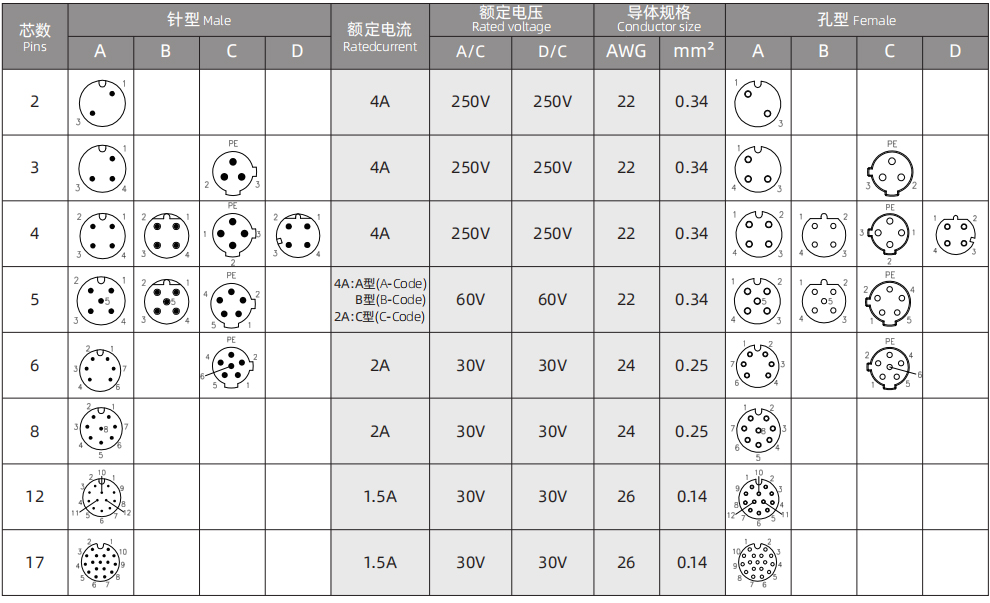

Electrical paramete
| Product name | Models | 3D Download | 2D Download |
| M12 L-Type Adapter (SS) | M12 - L - S 2A / S 2A | ||
| M12 L-Type Adapter (SS) | M12 - L - S 3A / S 3A | ||
| M12 L-Type Adapter (SS) | M12 - L - S 4A / S 4A | ||
| M12 L-Type Adapter (SS) | M12 - L - S 4D / S 4D | ||
| M12 L-Type Adapter (SS) | M12 - L - S 5A / S 5A | ||
| M12 L-Type Adapter (SS) | M12 - L - S 5B / S 5B | ||
| M12 L-Type Adapter (SS) | M12 - L - S 6A / S 6A | ||
| M12 L-Type Adapter (SS) | M12 - L - S 8A / S 8A |
Dimension
Wiring Definition
