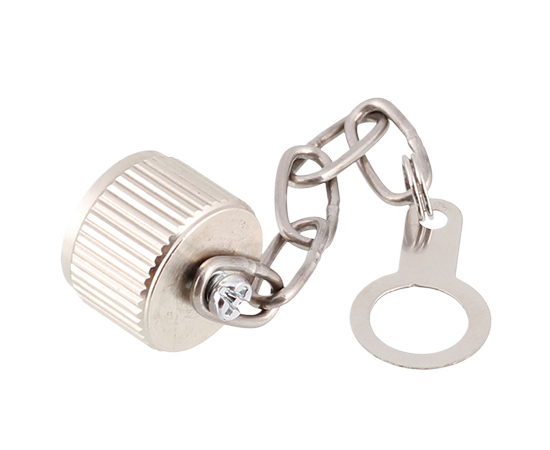

M12 metal dust cover (inner teeth+metal chain)
TECHNICAL PARAMETER
| Shell material | Brass nickel plating |
| Sealing material | Rubber |
| Chain material | Stainless steel |
| Dust cover M3 Screw | Stainless steel |
| Contact impedance | Stainless steel |
| Durability(∅3/∅12/∅16) | Rubber |
| Applicable temperature | -25℃ ~ +80℃ |
| Waterproof | IP65/IP67 |
| Executive standard | IEC 61076-2-101 |
| Product name | Ring inner diameter | Model | 3D Download | 2D Download |
| M12 Metal Dust Cover (Inner screw) | Φ 3mm | M12G-TV1P-3 | ↓ | |
| M12 Metal Dust Cover (Inner screw) | Φ 12mm | M12G-TV1P-12 | ↓ | |
| M12 Metal Dust Cover (Inner screw) | Φ 16mm | M12G-TV1P-16 | ↓ |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |

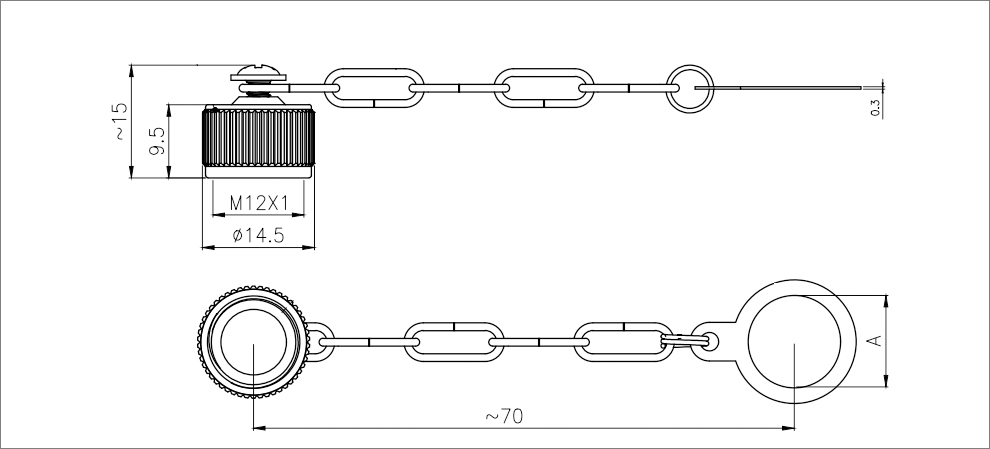

DIMENSION
