TECHNICAL PARAMETER
Shell material | Brass/Zinc alloy nickel plated |
Insulator material | PA+GF / TPU |
Sealing material | Fluoro rubber,Green |
Contact material | Brass ， gold-plated |
Molding material | TPU / PVC |
Insulation impedance | ≥ 100 MΩ |
Contact impedance | ≤ 5 mΩ |
Durability | ≥ 500 Cycles |
Applicable temperature | -40℃ ~ +80℃ |
Waterproof | IP67 |
Executive standard | IEC 61076-2-101 |
ELECTRICAL PARAMETERS
Product Name | Pins | Outlet Size-PG9 | Outlet Size-M16x1.5 | 3D Download | 2D Download |

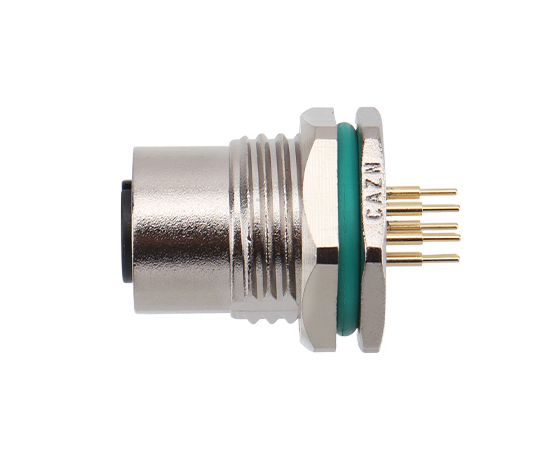

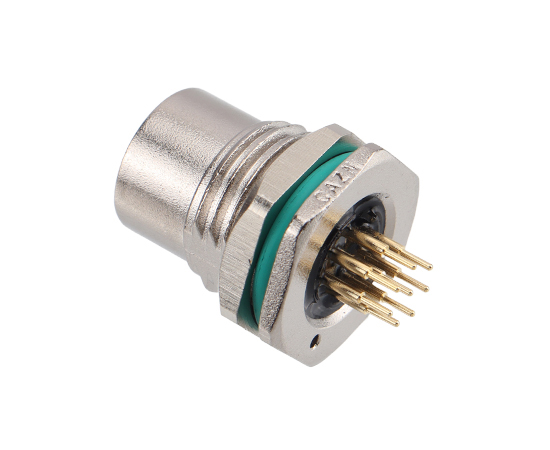

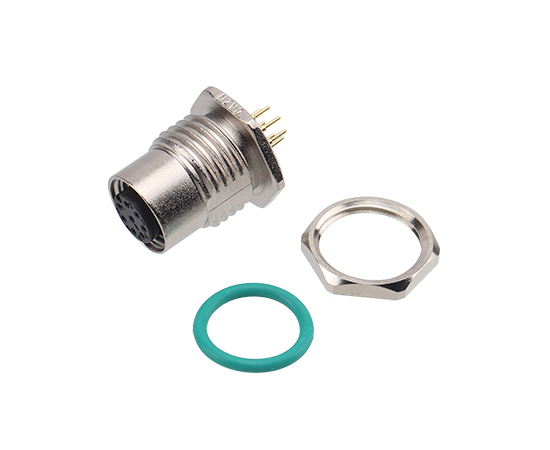

M12 Zinc alloy shell Female Back Mount Socket -PCB | 2A | M12-S2A-GPFP9-ZA | M12-S2A-GPFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Female Back Mount Socket -PCB | 3A | M12-S3A-GPFP9-ZA | M12-S3A-GPFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Female Back Mount Socket -PCB | 4A | M12-S4A-GPFP9-ZA | M12-S4A-GPFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Female Back Mount Socket -PCB | 4B | M12-S4B-GPFP9-ZA | M12-S4B-GPFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Female Back Mount Socket -PCB | 4D | M12-S4D-GPFP9-ZA | M12-S4D-GPFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Female Back Mount Socket -PCB | 5A | M12-S5A-GPFP9-ZA | M12-S5A-GPFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Female Back Mount Socket -PCB | 5B | M12-S5B-GPFP9-ZA | M12-S5B-GPFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Female Back Mount Socket -PCB | 5D | M12-S5D-GPFP9-ZA | M12-S5D-GPFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Female Back Mount Socket -PCB | 6A | M12-S6A-GPFP9-ZA | M12-S6A-GPFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Female Back Mount Socket -PCB | 8A | M12-S8A-GPFP9-ZA | M12-S8A-GPFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Female Back Mount Socket -PCB | 12A | M12-S12A-GPFP9-ZA | M12-S12A-GPFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Female Back Mount Socket -PCB | 17A | M12-S17A-GPFP9-ZA | M12-S17A-GPFM16-ZA | M16/PG9 |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |
DIMENSION
PCB PINS ARRANGEMENT
WIRING DEFINITION
