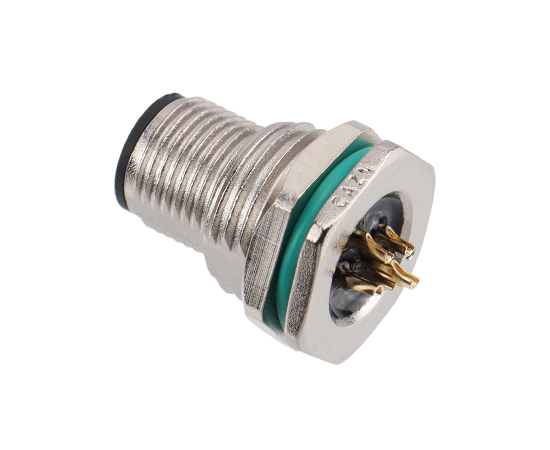

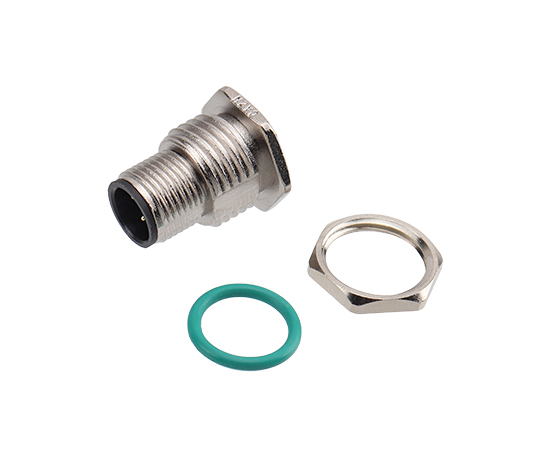

TECHNICAL PARAMETER
Shell material | Brass/Zinc alloy nickel plated |
Insulator material | PA+GF / TPU |
Sealing material | Fluoro rubber,Green |
Contact material | Brass ， gold-plated |
Molding material | TPU / PVC |
Insulation impedance | ≥ 100 MΩ |
Contact impedance | ≤ 5 mΩ |
Durability | ≥ 500 Cycles |
Applicable temperature | -40℃ ~ +80℃ |
Waterproof | IP67 |
Executive standard | IEC 61076-2-101 |
ELECTRICAL PARAMETERS
Product Name | Pins | Outlet Size-PG9 | Outlet Size-M16x1.5 | 3D Download | 2D Download |
M12 Zinc alloy shell Male Back Mount Socket (Solder) | 2A | M12-P2A-GWFP9-ZA | M12-P2A-GWFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Male Back Mount Socket (Solder) | 3A | M12-P3A-GWFP9-ZA | M12-P3A-GWFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Male Back Mount Socket (Solder) | 4A | M12-P4A-GWFP9-ZA | M12-P4A-GWFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Male Back Mount Socket (Solder) | 4B | M12-P4B-GWFP9-ZA | M12-P4B-GWFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Male Back Mount Socket (Solder) | 4D | M12-P4D-GWFP9-ZA | M12-P4D-GWFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Male Back Mount Socket (Solder) | 5A | M12-P5A-GWFP9-ZA | M12-P5A-GWFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Male Back Mount Socket (Solder) | 5B | M12-P5B-GWFP9-ZA | M12-P5B-GWFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Male Back Mount Socket (Solder) | 5D | M12-P5D-GWFP9-ZA | M12-P5D-GWFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Male Back Mount Socket (Solder) | 6A | M12-P6A-GWFP9-ZA | M12-P6A-GWFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Male Back Mount Socket (Solder) | 8A | M12-P8A-GWFP9-ZA | M12-P8A-GWFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Male Back Mount Socket (Solder) | 12A | M12-P12A-GWFP9-ZA | M12-P12A-GWFM16-ZA | M16/PG9 | |
M12 Zinc alloy shell Male Back Mount Socket (Solder) | 17A | M12-P17A-GWFP9-ZA | M12-P17A-GWFM16-ZA | M16/PG9 |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |

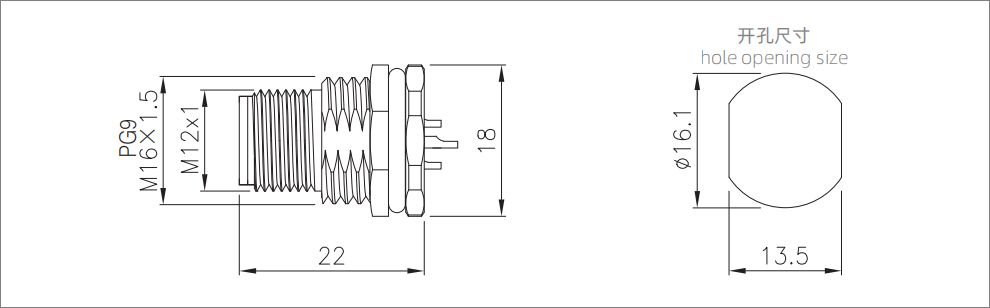

DIMENSION

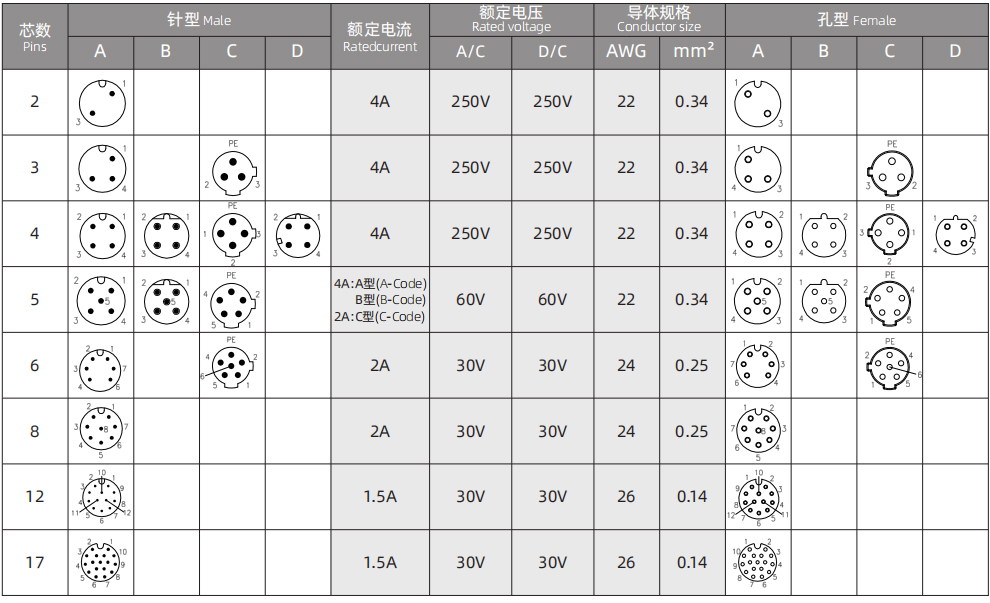

WIRING DEFINITION
