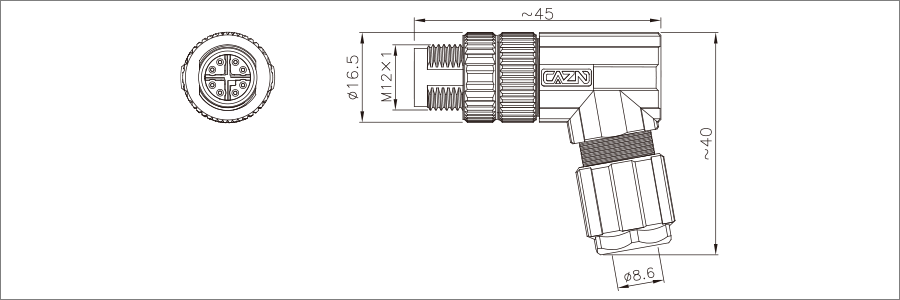

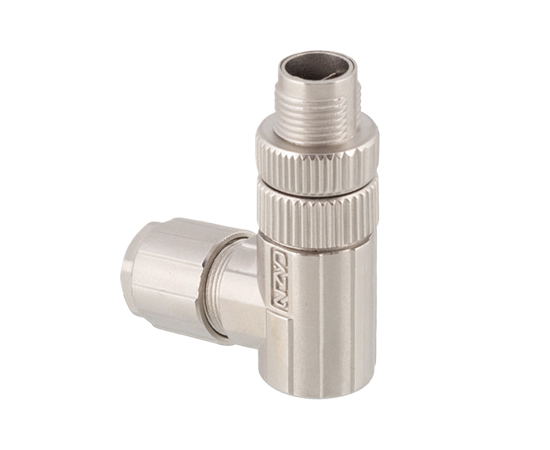

M12 Angled Male Metal Assembled Plug (Data type, Crimp)

European standard connector M12 series

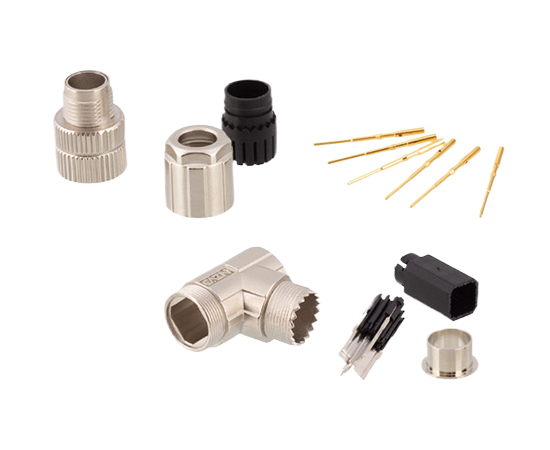

Structure type: Metal Assembled Curved Plug

Pin type: Male type

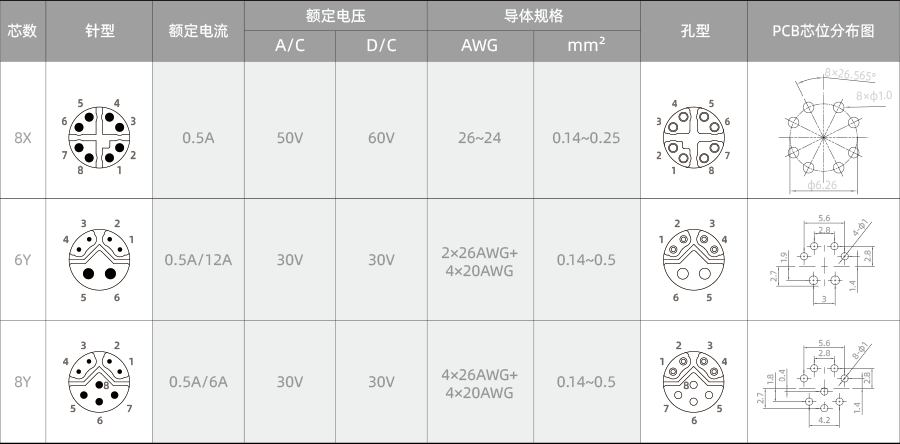

Contacts number: 8X,6Y,8Y Pins

Connection method: Crimp

Shield: Yes

Certification: CE RoHS

Standard: IEC 61076-2-101

Shopping

TECHNICAL PARAMETER

Shell material	Brass nickel plating / Zinc alloy nickel / PA+GF
Insulator material	PA+GF/TPU
Sealing material	Epoxy resin / Rubber
Contact material	Brass / Phosphorus copper gold-plated
Molding material	TPU / PVC
Insulation impedance	≥ 100 MΩ
Contact impedance	≤ 5 m Ω
Durability	≥ 500 Cycles
Applicable temperature	-25℃ ~ +80℃
Waterproof	IP65 / IP67
Executive standard	IEC 61076-2-101

ELECTRICAL PARAMETER

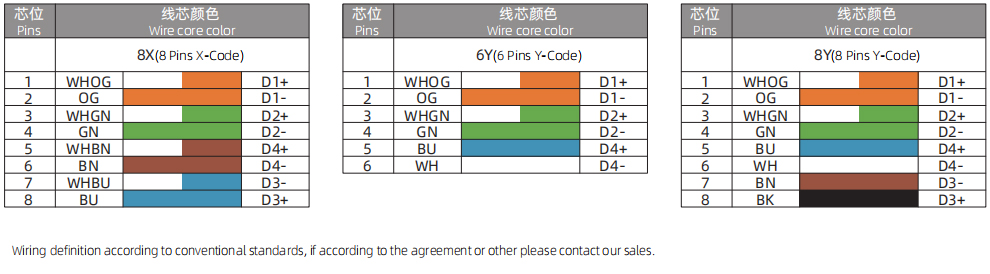

Product Name	Pins	Outlet Size-PG7	3D Download	2D Download
M12 Angled Male Metal Assembled Plug (Data type,Crimp,PG7)	6Y	M12-P6Y-GCDP7
M12 Angled Male Metal Assembled Plug (Data type,Crimp,PG7)	8X	M12-P8X-GCDP7		↓
M12 Angled Male Metal Assembled Plug (Data type,Crimp,PG7)	8Y	M12-P8Y-GCDP7
