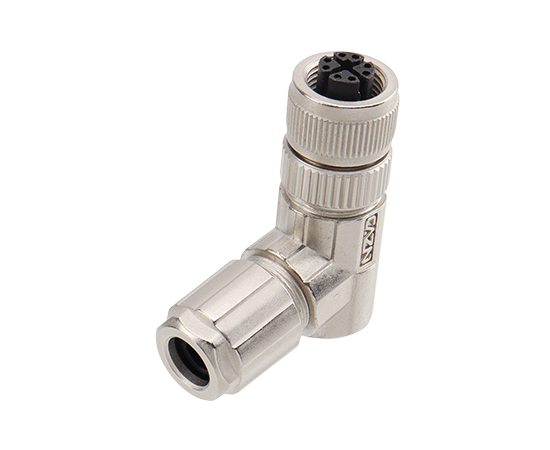

M12 Angled Female Metal Assembled Plug (Data type, Solder)
TECHNICAL PARAMETER
Shell material | Brass nickel plating / Zinc alloy nickel / PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | Epoxy resin / Rubber |
Contact material | Brass / Phosphorus copper gold-plated |
Molding material | TPU / PVC |
Insulation impedance | ≥ 100 MΩ |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 Cycles |
Applicable temperature | -25℃ ~ +80℃ |
Waterproof | IP65 / IP67 |
Executive standard | IEC 61076-2-101 |
ELECTRICAL PARAMETER

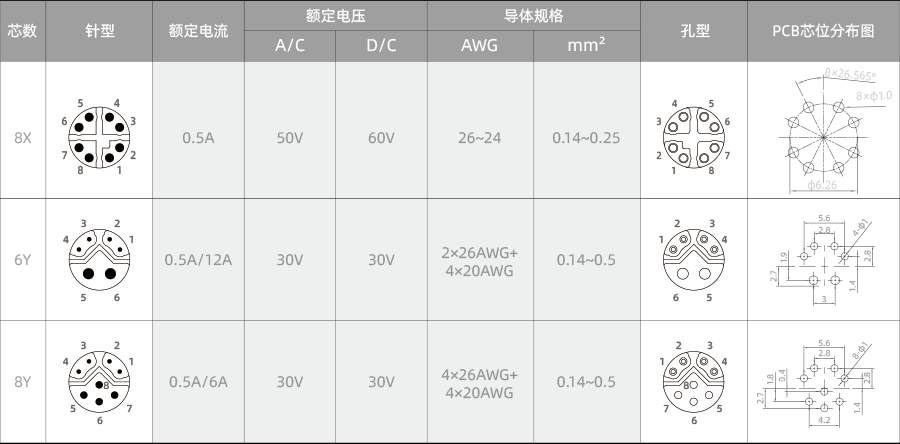

Product Name | Pins | Outlet Size-PG7 | 3D Download | 2D Download |
M12 Angled Female Metal Assembled Plug (Data type,Solder,PG7) | 6Y | M12-S6Y-GCDP7 | ||
M12 Angled Female Metal Assembled Plug (Data type,Solder,PG7) | 8X | M12-S8X-GCDP7 | ||
M12 Angled Female Metal Assembled Plug (Data type,Solder,PG7) | 8Y | M12-S8Y-GCDP7 |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |

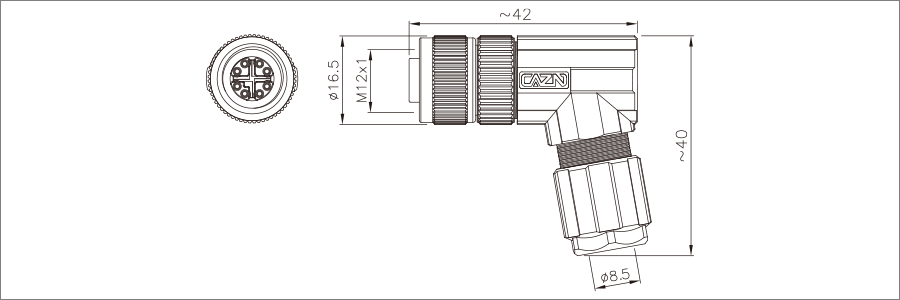

DIMENSION

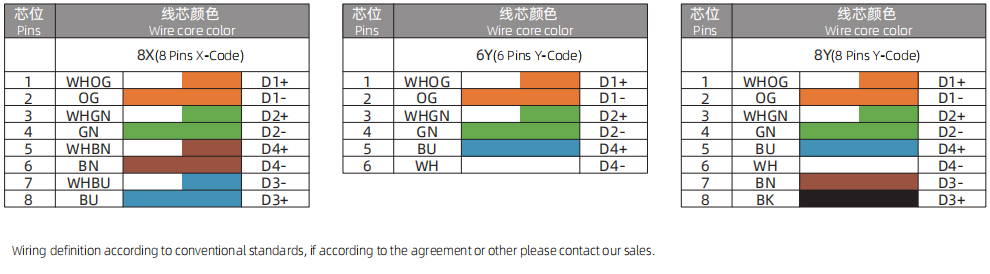

WIRING DEFINITION
