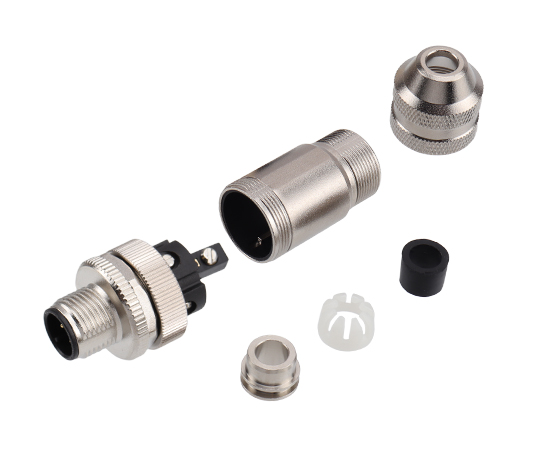

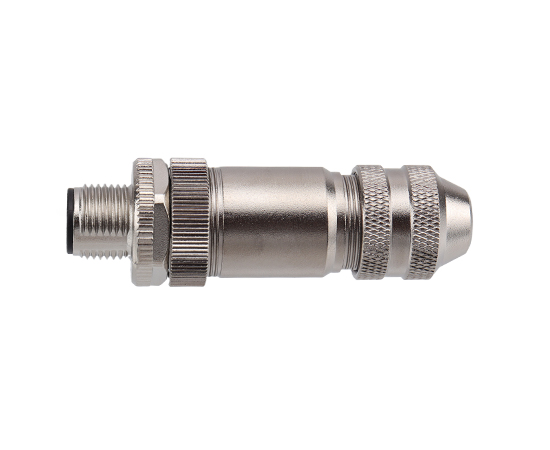

M12 Straight Male Metal Assembled Plug (Screw)

European standard connector M12 series

Structure type: Metal Assembled Straight Plug

Pin type: Male type

Contacts number: 2,3,4,5,6,8 Pins

Connection method: Screw

Shield: Yes

Certification: CE RoHS

Standard: IEC 61076-2-101


TECHNICAL PARAMETER

 Shell material Brass nickel plating/Zinc alloy nickel/PA+GF
 Insulator material PA+GF/TPU
 Sealing material Epoxy resin / Rubber
 Contact material Brass / Phosphorus copper gold-plated
 Molding material TPU/PVC
 Insulation impedance ≥ 100 MΩ
 Contact impedance ≤ 5 mΩ
 Durability ≥ 500 Cycles
 Applicable temperature -25℃ ~ +80℃
 Waterproof IP65/IP67
 Executive standard IEC 61076-2-101

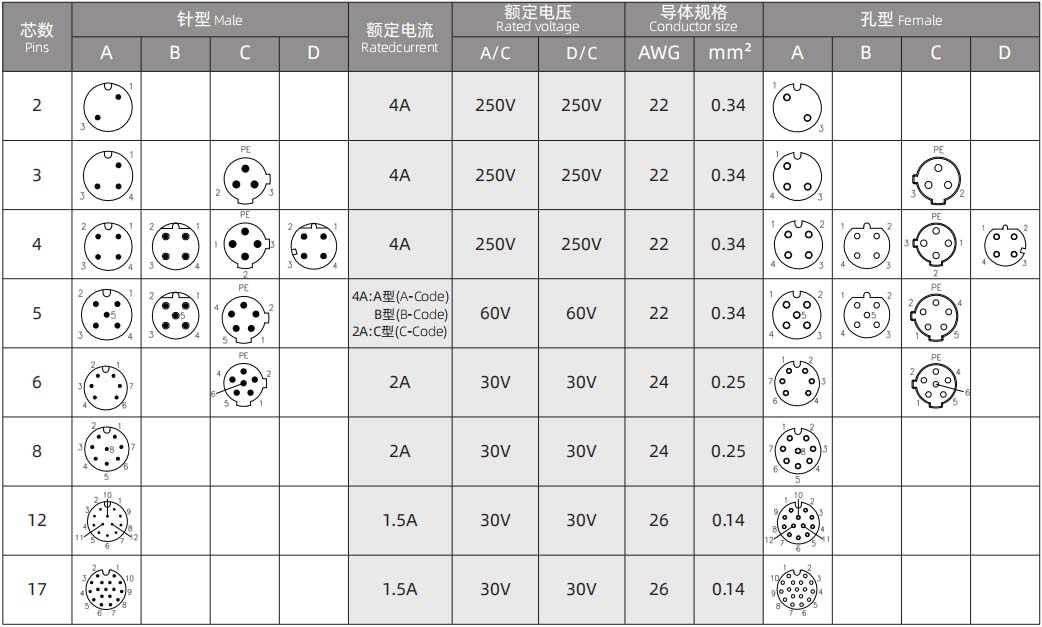

ELECTRICAL PARAMETERS



Product nameOutlet size-PG7Outlet size-PG93D Download2D Download
M12 Straight Male Metal Assembled Plug (Screw)M12-P2A-GLAP7M12-P2A-GLAP9PG7/PG9PG7/PG9
M12 Straight Male Metal Assembled Plug (Screw)M12-P3A-GLAP7M12-P3A-GLAP9PG7/PG9PG7/PG9
M12 Straight Male Metal Assembled Plug (Screw)M12-P4A-GLAP7M12-P4A-GLAP9PG7/PG9PG7/PG9
M12 Straight Male Metal Assembled Plug (Screw)M12-P4D-GLAP7M12-P4D-GLAP9PG7/PG9PG7/PG9
M12 Straight Male Metal Assembled Plug (Screw)M12-P5A-GLAP7M12-P5A-GLAP9PG7/PG9PG7/PG9
M12 Straight Male Metal Assembled Plug (Screw)M12-P5B-GLAP7M12-P5B-GLAP9PG7/PG9PG7/PG9
M12 Straight Male Metal Assembled Plug (Screw)M12-P6A-GLAP7M12-P6A-GLAP9PG7/PG9PG7/PG9
M12 Straight Male Metal Assembled Plug (Screw)M12-P8A-GLAP7M12-P8A-GLAP9PG7/PG9PG7/PG9

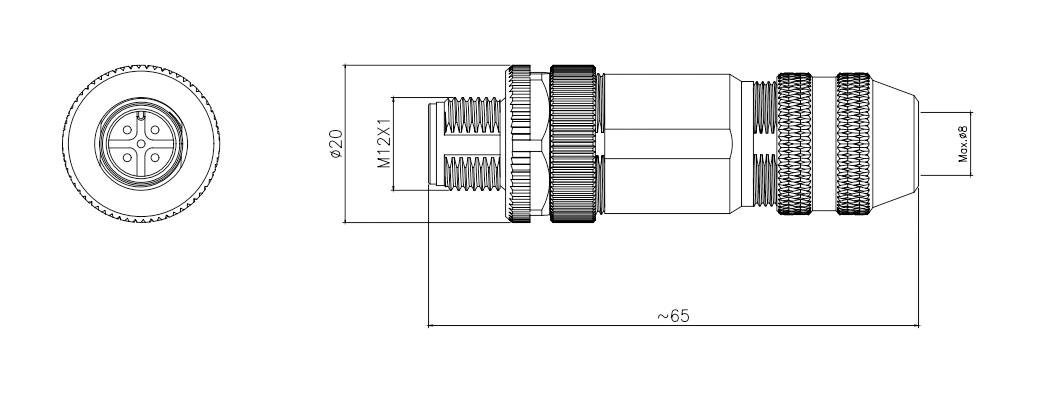

DIMENSION

M12 主图-金属组装8+.jpg

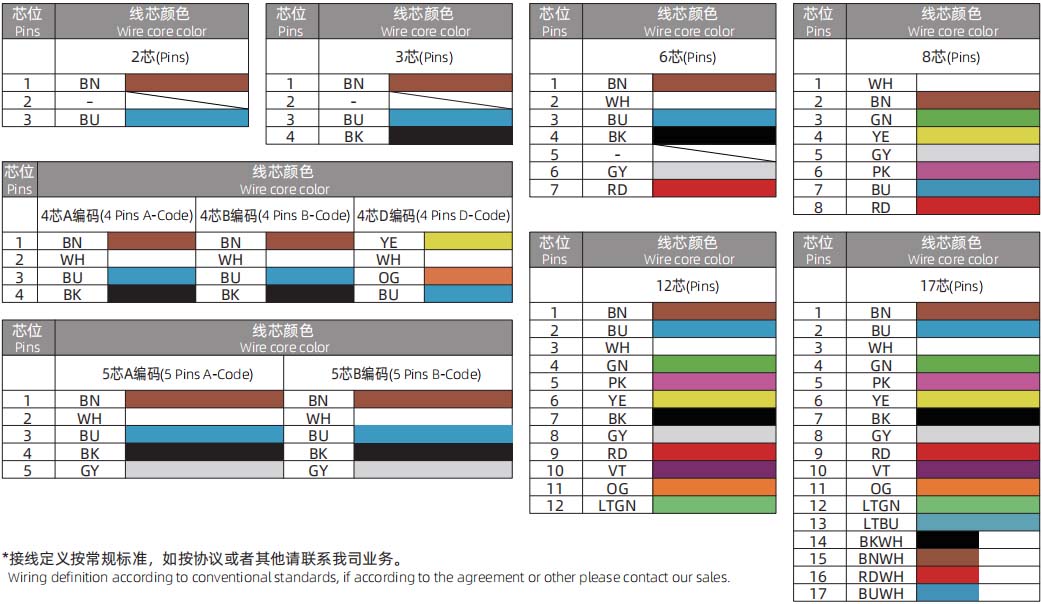

WIRING DEFINITION
