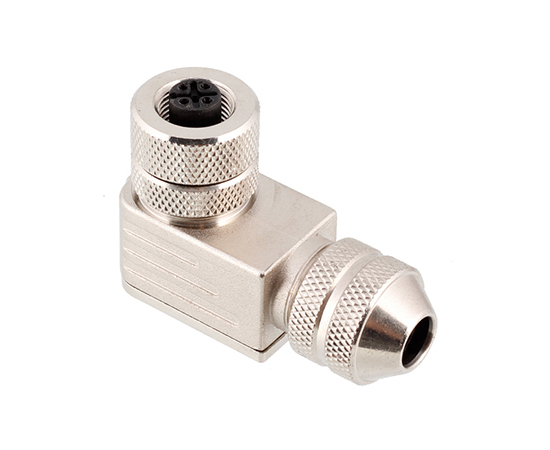

M12 Angled Female Metal Assembled Plug (Screw)

European standard connector M12 series

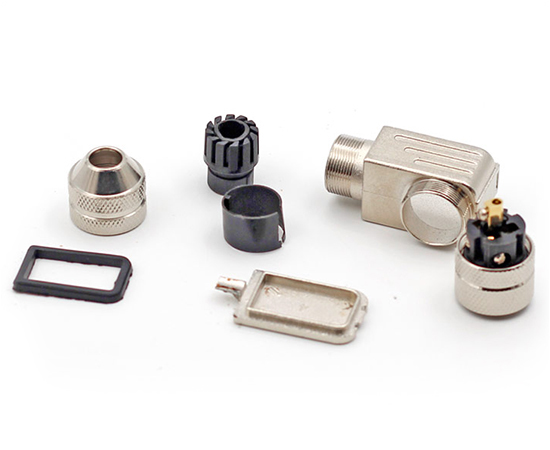

Structure type: Metal Assembled Curved Plug

Pin type: Female type

Contacts number: 2,3,4,5,6,8 Pins

Connection method: Screw

Shield: Yes

Certification: CE RoHS

Standard: IEC 61076-2-101


TECHNICAL PARAMETER

 Shell material Brass nickel plating/Zinc alloy nickel/PA+GF
 Insulator material PA+GF/TPU
 Sealing material Epoxy resin/Rubber
 Contact material Brass/Phosphorus copper gold-plated
 Molding material TPA/PVC
 Insulation impedance ≥ 100 MΩ
 Contact impedance ≤ 5 mΩ
 Durability ≥ 500 Cycles
 Applicable temperature  -25℃ ~ +80℃
 Waterproof IP65/IP67
 Executive standard IEC 61076-2-101

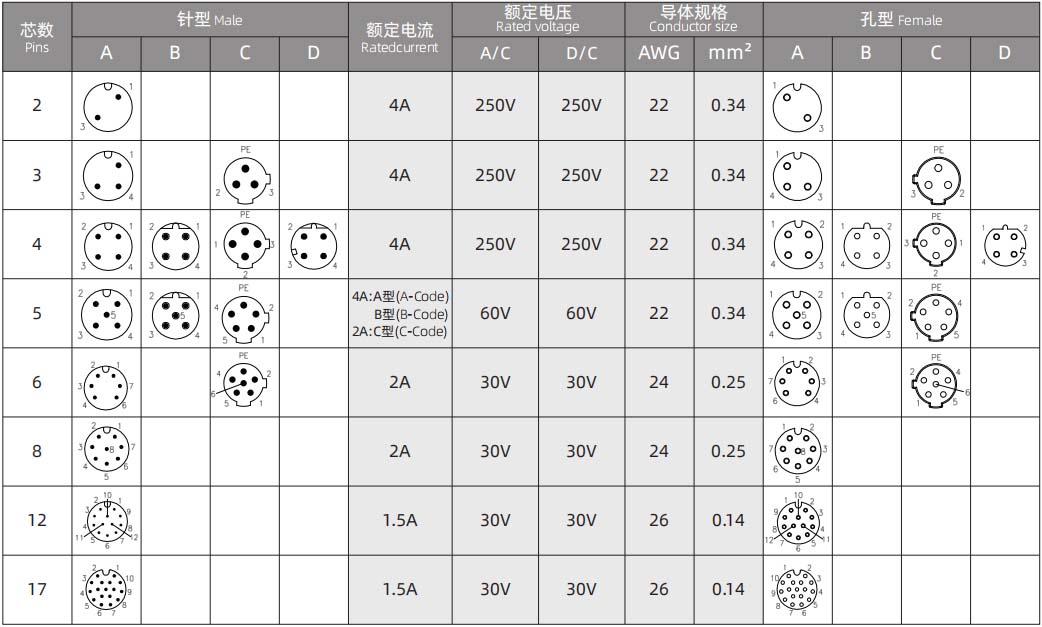

ELECTRICAL PARAMETERS




Product nameOutlet size-PG7Outlet size-PG9

3D

Download

2D

Download

M12 Angled female metal assembled plug 2A screwM12-S2A-GLDP7M12-S2A-GLDP9
   PG7/PG9
M12 Angled female metal assembled plug 3A screwM12-S3A-GLDP7M12-S3A-GLDP9
  PG7/PG9
M12 Angled female metal assembled plug 4A screwM12-S4A-GLDP7M12-S4A-GLDP9
  PG7/PG9
M12 Angled female metal assembled plug 4D screwM12-S4D-GLDP7M12-S4D-GLDP9
  PG7/PG9
M12 Angled female metal assembled plug 5A screwM12-S5A-GLDP7M12-S5A-GLDP9
  PG7/PG9
M12 Angled female metal assembled plug 5B screwM12-S5B-GLDP7M12-S5B-GLDP9
  PG7/PG9
M12 Angled female metal assembled plug 6A screwM12-S6A-GLDP7M12-S6A-GLDP9
  PG7/PG9
M12 Angled female metal assembled plug 8A screwM12-S8A-GLDP7M12-S8A-GLDP9
  PG7/PG9

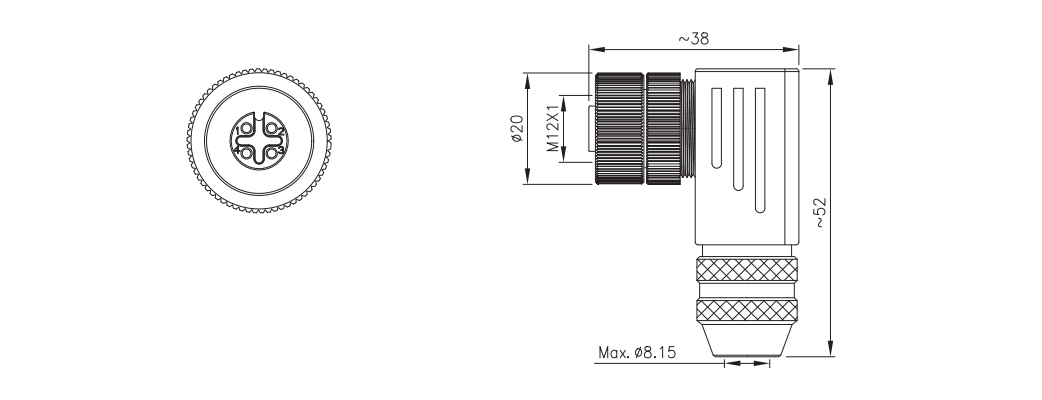

DIMENSION

M12弯式孔型金属插头 螺钉式-4.jpg

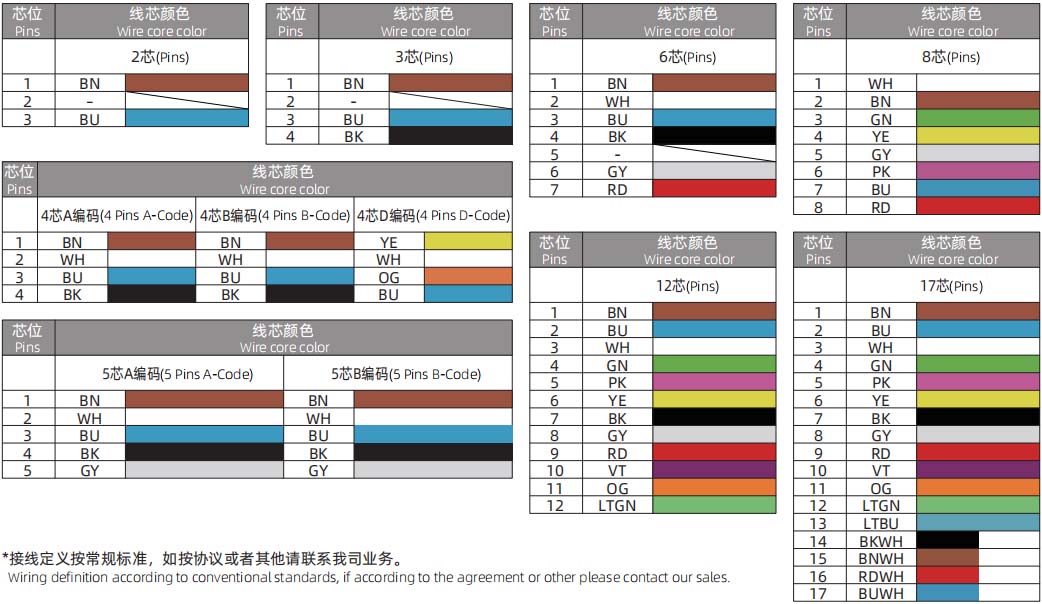

WIRING DEFINITION
