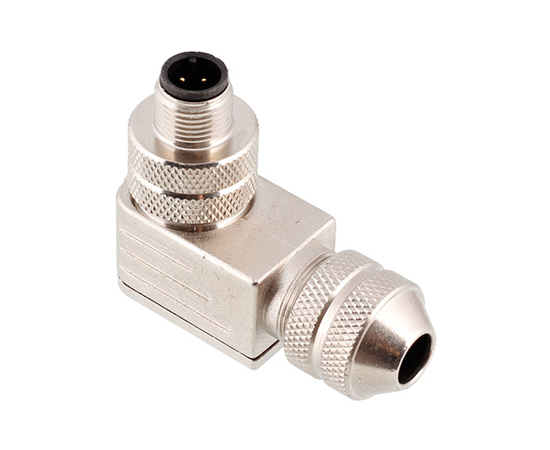

M12 Angled Male Metal Assembled Plug (Screw)

European standard connector M12 series

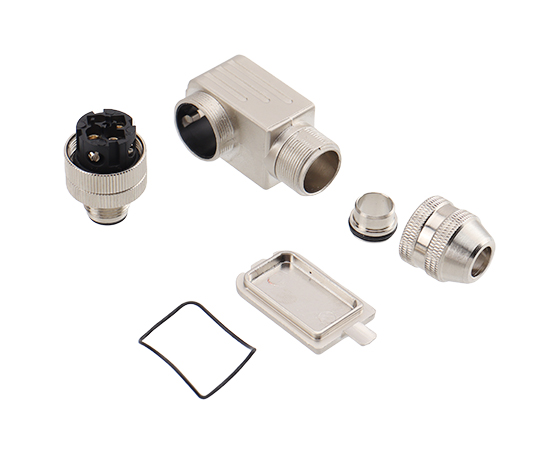

Structure type: Metal Assembled Curved Plug

Pin type: Male type

Contacts number: 2,3,4,5,6,8 Pins

Connection method: Screw

Shield: Yes

Certification: CE RoHS

Standard: IEC 61076-2-101


TECHNICAL PARAMETERS

 Shell material

 Brass nickel plating / Zinc alloy nickel / PA+GF

 Insulator material

 PA+GF / TPU

 Sealing material

 Epoxy resin / Rubber

 Contact material

 Brass / Phosphorus copper gold-plated

 Molding material

 TPU / PVC

 Insulation impedance

 ≥ 100 MΩ

 Contact impedance

 ≤ 5 mΩ

 Durability

 ≥ 500 Cycles

 Applicable temperature

 -25℃ ~ +80℃

 Waterproof

 IP65 / IP67

 Executive standard

 IEC 61076-2-101




ELECTRICAL PARAMETERS




Product name

Outlet size-PG7

Outlet size-PG9

3D Download

2D Download

M12 Angled male metal assembled plug 2A screw

M12-P2A-GLDP7

M12-P2A-GLDP9


PG7/PG9

M12 Angled male metal assembled plug 3A screw

M12-P3A-GLDP7

M12-P3A-GLDP9


PG7/PG9

M12 Angled male metal assembled plug 4A screw

M12-P4A-GLDP7

M12-P4A-GLDP9


PG7/PG9

M12 Angled male metal assembled plug 4D screw

M12-P4D-GLDP7

M12-P4D-GLDP9


PG7/PG9

M12 Angled male metal assembled plug 5A screw

M12-P5A-GLDP7

M12-P5A-GLDP9


PG7/PG9

M12 Angled male metal assembled plug 5B screw

M12-P5B-GLDP7

M12-P5B-GLDP9


PG7/PG9

M12 Angled male metal assembled plug 6A screw

M12-P6A-GLDP7

M12-P6A-GLDP9


PG7/PG9

M12 Angled male metal assembled plug 8A screw

M12-P8A-GLDP7

M12-P8A-GLDP9


PG7/PG9

DIMENSION

M12弯式针型金属插头 螺钉式-4.jpg

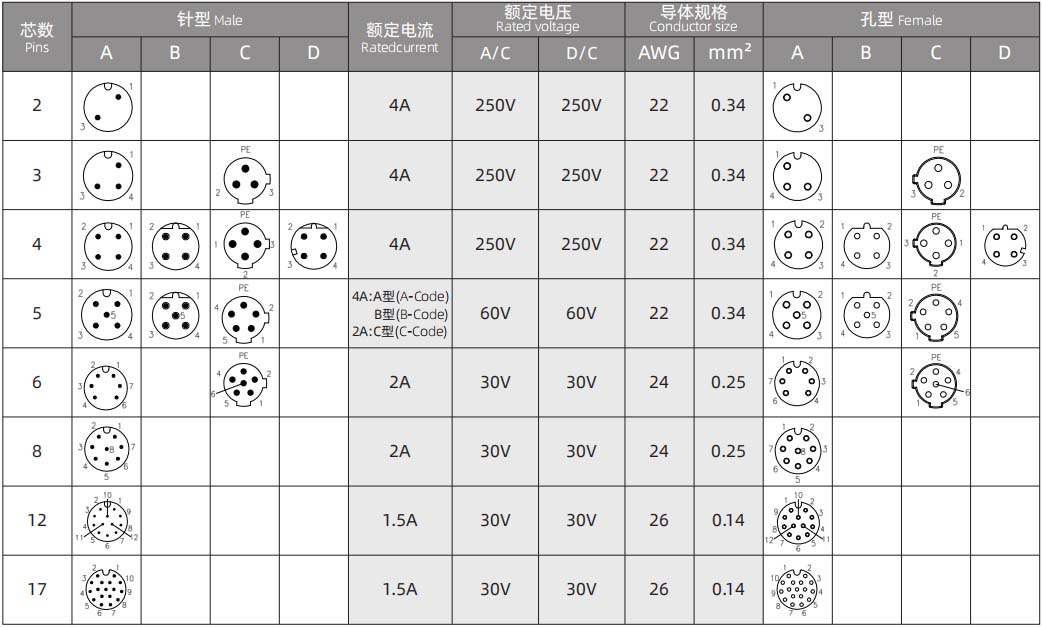

WIRING DEFINITION
